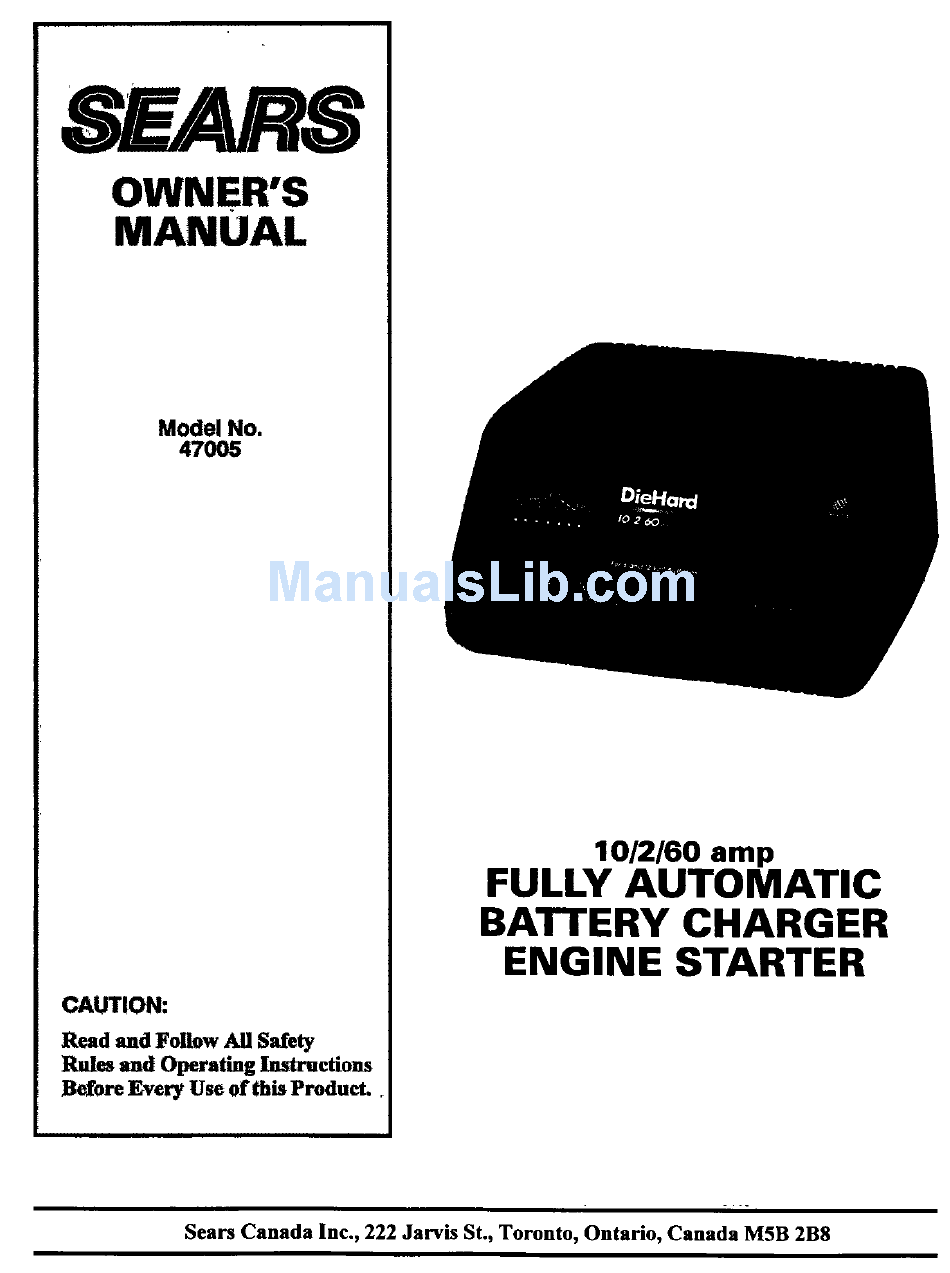

  • Page 1 SEARS OWNER'S MANUAL Model No. 47005 10/2/60 FULLY AUTOMATIC BATTERY CHARGER ENGINE STARTER CAUTION: Read and Follow All Safety Rules and Operating Instructions Before Every Use of this Product. Sears Canada Inc., 222 Jarvis St., Toronto, Ontario, Canada...

  • Page 2: Table Of Contents

    Table Of Contents Warranty ..............Using Your Battery Charger ........Important Safety Instructions ........Setting the controls ..........Parts ................. Charging your battery ..........Before Using Your Battery Charger ......4 Calculating charge time ......... Plugging it in ............Using the engine start feature ....... Using an extension cord ........

  • Page 3: Important Safety Instructions

    Important Safety Instructions - SAVE THESE INSTRUCTIONS • Read all instructions and cautions printed on the • Do not disassemble charger. Take it to a qualified battery charger, battery, and vehicle or equipment service professional if service or repair is required. using battery.

  • Page 4: Parts

    Parts This section shows an illustration of your battery charger. Use it to become familiar with where all the parts are located, and what they look like. tem DelcrlpUon Part Number Case Cover 3799001420 Heatsink/Di0de 2299000848S Case Bog0m 3799001410 ACLJnecord 90026053 Transformer 93026428...

  • Page 5: Before Using Your Battery Charger

    Before Using Your Battery Charger It is important to understand your chargers requirements. This section will tell you about your chargers electrical requirements and how to prepare a battery for charging. Plugging it in Electrical Shock Hazard Be sure that power cord fits propody into outlet. ff not, have a qualified technician install a proper outlet.

  • Page 6: Using Your Battery Charger

    Using Your Battery Charger To obtain the best results from your battery charger, you must know how to use it properly. This section will tell you how to set the controls, how to charge a battery in or out of a vehicle, and how to use the charger to help start an engine.

  • Page 7: Charging Your Battery

    AMMETER: The ammeter indicates the measured amount of amperes being drawn bythe battery. When you first start charging a battery, the reading will be high, with the needle near 10 using the 10 amp charging rate. • In the MANUAL setting, as the battery charges, the needle will fall to about 4 or 5 amps, indicating a charged battery.
  • Page 8 6. Connect the clamp to the battery post and twist or rock back and forth to make a solid connection. This will help keep the clamps from slipping off the posts and causing sparks. 7. For automatic charging, select AUTOMATIC DEEP CYCLE or AUTOMATIC REGULAR as a charge type then select a charge rate.

  • Page 9: Calculating Charge Time

    Calculating charge time Chart Method Use the following table to more accurately determine • Marine, or deep-cycle batteries are usually rated in the time it will take to bring a battery to full charge. Reserve Capacity (RC). First, identify where your battery fits into the chart. •...

  • Page 10: Using The Engine Start Feature

    Using the engine start feature Your battery charger can be used to jump start your 4. After the engine starts, unplug the charger power car if the battery is low. Follow these instructions on cord from the AC outlet. Then disconnect the how to use the ENGINE START feature.

  • Page 11: Troubleshooting

    Troubleshooting Performance problems often result from IRtle things that you can fix yourself Please read through this chart for a )oss_ble solution if a problem occurs PROBLEM POSSIBLE CAUSE SOLUTION/REASONS No ammeter reading Clamps not making good Check for poor connection at battery Make sure clamps connection and posts are clean.
  • Page 12 8EE/, uqt8 10/2/60 FULLY AUTOMATIC OWNER'S BATTERY CHARGER MANUAL ENGINE STARTER Model No. 47005 Forinformation abouttroubleshooting Call t oll-free f romanywhere intheU.S.A. o r Canada 7 amto 4:30 pmCSTMonday throughFriday 1-800-SEARS-64 (1-800-732-7764) When requesting service or ordering parts, always provide the following information: •...
