HOOD PARTS
36" PROFESSIONAL HOOD
For Models: KICU460WSS0
(Stainless)
1
Part No. W10268519 Rev. B
7−10 Litho in U.S.A. (MP)(bay)
Previous
Page
Next
Page
1
2
3
4
Advertisement
Related Manuals for KitchenAid KICU460WSS0
Ventilation Hood KitchenAid KICU480WSS0 Manual
36" (91.4 cm), 42" (106.7 cm) and 48" (121.9 cm) designer commercial-style island-mount canopy hood (28 pages)
Ventilation Hood KitchenAid KICU460WSS0 Installation & Use Manual
36" (91.4 cm), 42" (106.7 cm) and 48" (121.9 cm) designer commercial-style island-mount canopy hood (28 pages)
Ventilation Hood KitchenAid 36" (91.4 cm) 48" (121.9 cm) Island Canopy Range Hood Installation Instructions Manual
36" (91.4 cm) 48" (121.9 cm) island canopy range hood (24 pages)
Ventilation Hood KitchenAid KICU265H Dimension Manual
36" and 48" island canopy range hood (1 page)
Ventilation Hood KitchenAid KICU465S Dimension Manual
36" island range hood (1 page)
Ventilation Hood KitchenAid KICU465S Dimension Manual
36" island range hood (1 page)
Ventilation Hood KitchenAid KICU265BAL0 Parts Manual
35" island hood (4 pages)
Ventilation Hood KitchenAid KICU265H Dimension Manual
36" and 48" island canopy range hood (1 page)
Ventilation Hood KitchenAid KICU265HBT1 Parts Manual
36" island hood (4 pages)
Ventilation Hood KitchenAid KICU265HSS1 Installation Instructions And Use And Care Manual
36", 48" island canopy range hood (13 pages)
Ventilation Hood KitchenAid KICU465SBL0 Parts Manual
36" canopy hood (4 pages)
Ventilation Hood KitchenAid KICU465SBL0 Installation Instructions And Use & Care Manual
36" (91.4 cm) island range hood (32 pages)
Ventilation Hood KitchenAid KICU465SWH0 Installation Instructions And Use & Care Manual
36" (91.4 cm) island range hood installation instructions (32 pages)
Ventilation Hood KitchenAid KICU265HBT0 Parts List
36" island hood (4 pages)
Ventilation Hood KitchenAid KICU285HSS0 Installation Instructions
Range hood (4 pages)
Ventilation Hood KitchenAid KICU565WSS0 Manual
36" (91.4 cm) island mount canopy hood (32 pages)
Summary of Contents for KitchenAid KICU460WSS0
Page 1
HOOD PARTS 36" PROFESSIONAL HOOD For Models: KICU460WSS0 (Stainless) Part No. W10268519 Rev. B 7−10 Litho in U.S.A. (MP)(bay)
Page 2

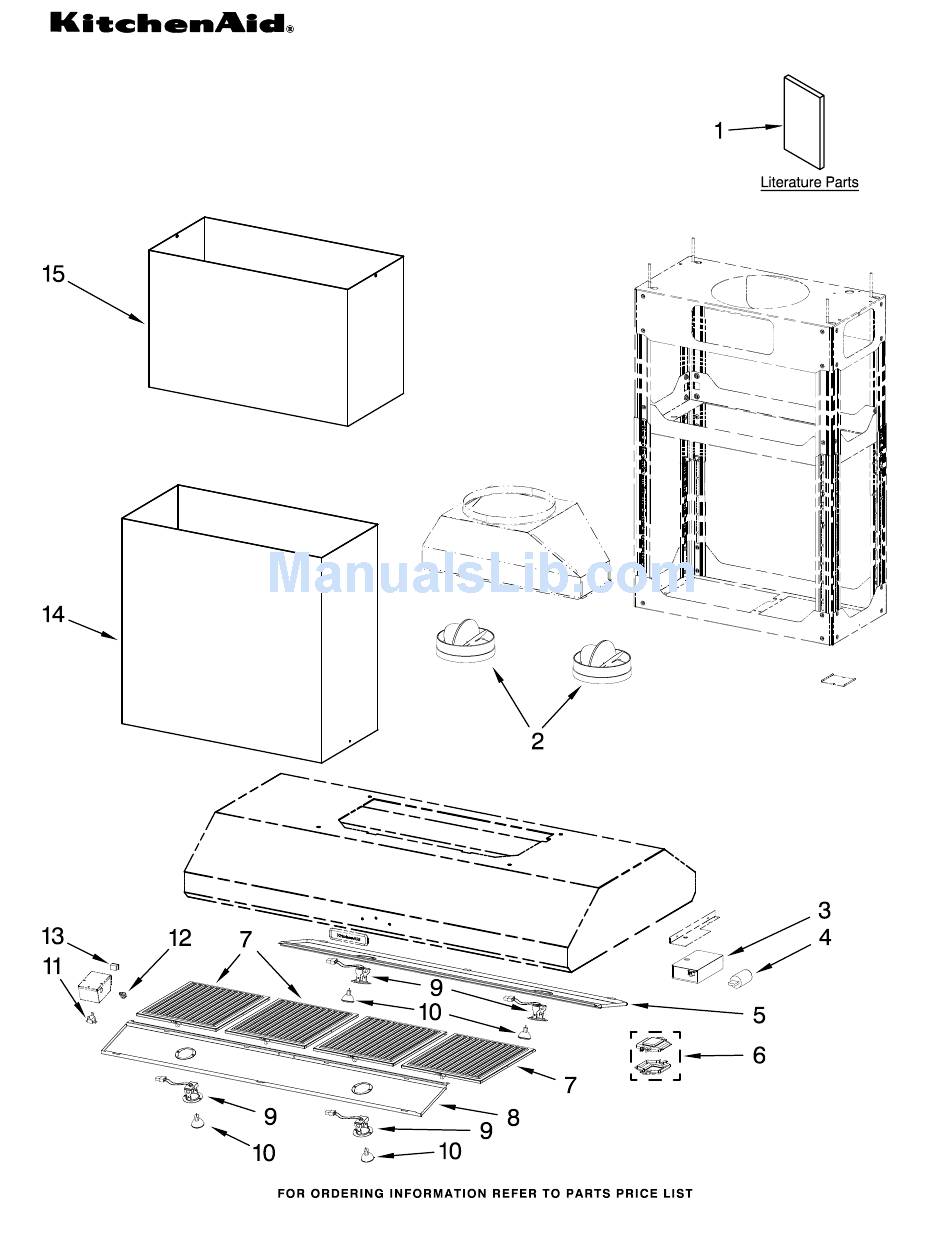

HOOD PARTS For Models: KICU460WSS0 (Stainless) Illus. Part DESCRIPTION Literature Parts W10233971 Use & Care Guide 2 W10252123 Damper, Hood 3 W10252760 Box, Control 4 W10252757 Capacitor 5 W10252744 Support, Filters 6 W10252738 Housing, Control 7 W10252087 Filter, Grease 8 W10252746 Cover, Lights 9 W10252116 Socket, Bulb 10 W10252088 Bulb, Halogen 11 W10252751 Switch, Slide...
Page 3
VENTILATION PARTS For Models: KICU460WSS0 (Stainless) W10268519...
Page 4
VENTILATION PARTS For Models: KICU460WSS0 (Stainless) Illus. Part DESCRIPTION 1 W10252131 Motor, Fan 2 W10136368 Capacitor 3 W10235668 Connectors 4 W10252754 Panel, Control 5 W10252121 Switch, Slide 6 W10252122 Switch, Slide 7 W10252741 Bracket, Cube 8 W10252739 Hardware, Cube 9 W10252117 Transformer W10268519...
