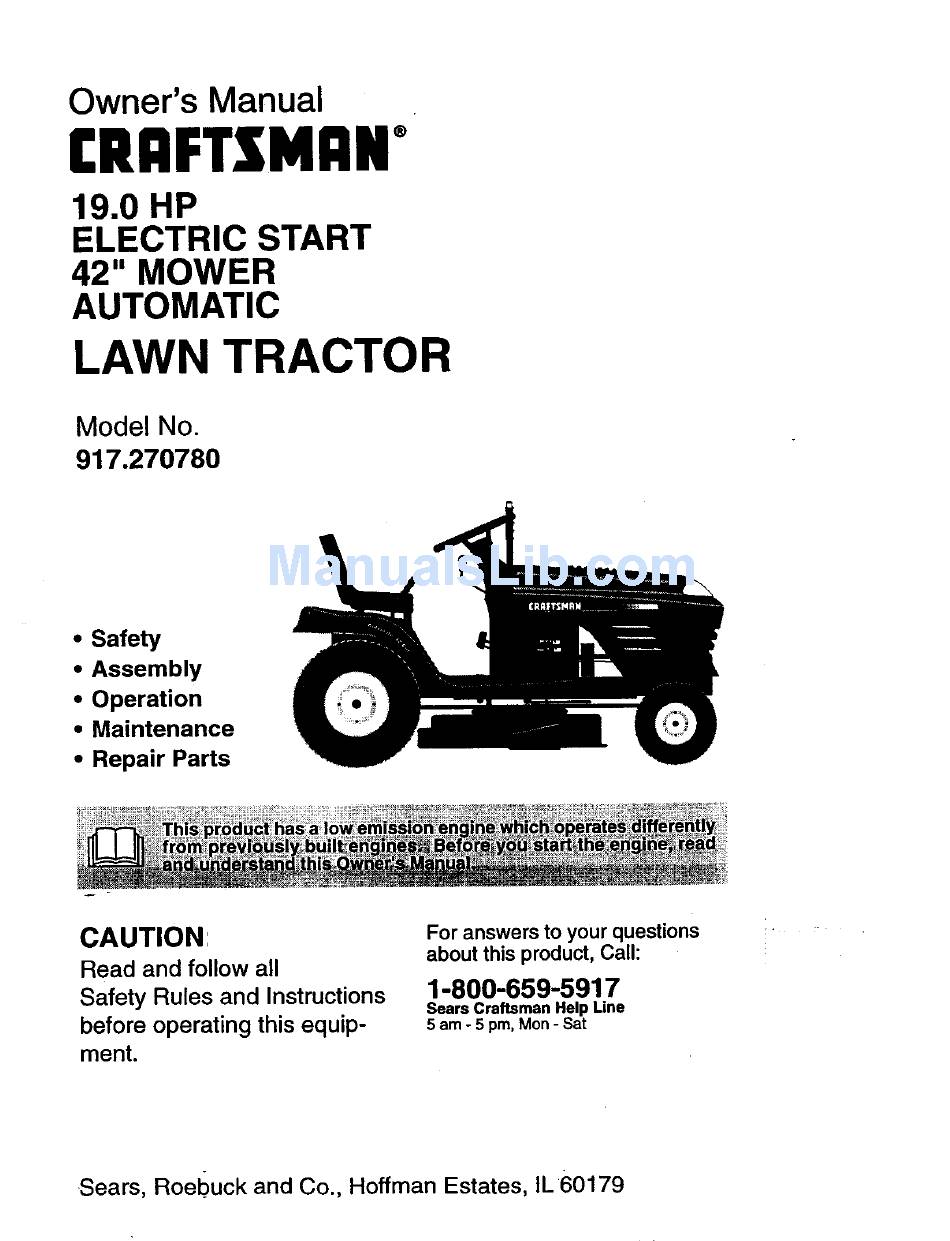

Owner's Manual
[RRFTSMRN°
19.0 HP
ELECTRIC
START
42" MOWER
AUTOMATIC
LAWN TRACTOR
Model No.
917.270780
• Safety
• Assembly
• Operation
• Maintenance
• Repair Parts
CAUTION
Read and follow all
Safety Rules and Instructions
before operating this equip-
ment.
For answers to your questions
about this product, Call:
1-800-659-5917
Sears Craftsman Help Line
5 am - 5 pro, Mon- Sat
Sears, Roebuck
and Co., Hoffman
Estates,
IL 60179
