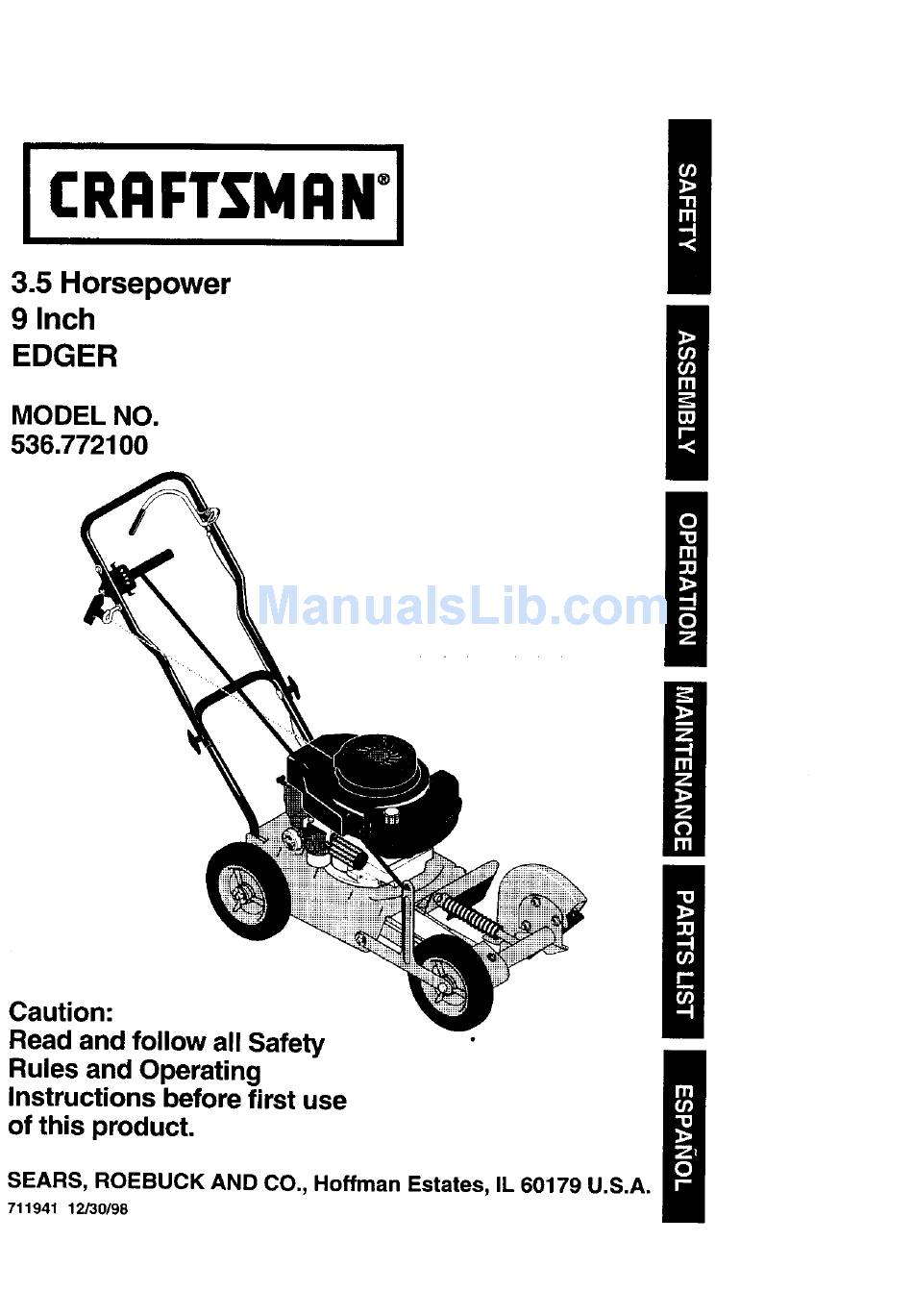

- Page 1 CRRFTSMRN ° 3.5 Horsepower 9 Inch EDGER MODEL NO. 536.772100 Caution: Read and follow all Safety Rules and Operating Instructions before first use of this product. SEARS, ROEBUCK AND CO., Hoffman Estates, IL 60179 U.S.A. 711941 12/30/98...
- Page 2 Parts Ordering/Service Back Cover LIMITED ONE-YEAR WARRANTY ON CRAFTSMAN EDGER For one year from the date of purchase, when this Craftsman Edger is maintained, bricated, and tuned up according to the operating and maintenance instructions in the owner's manual, Craftsman will repair, free of charge, any defect in material or work- manship.
- Page 3 • Never store the Edger with fuel in the fuel • Never remove the fuel tank cap or add tank inside a building where ignition fuel to a running or hot engine. sources are present such as water and • Never store fuel or Edger with fuel in the space heaters, clothes dryers, and the tank inside a building where fumes may like.
- Page 4 Contents of Parts Bag (shown full size) 1 - Owner's Manual (not shown) (2) - Hair Pins Parts packed separately in carton (not shown full size) il) -Control Rod Container SAE30 oil 1 - Parts Bag (not shown) I - Emissions Statement (not shown) CAUTION: Always wear safety glasses or eye shields while assembling...
- Page 5 • Insert one end of the control rod from right • To attach the recoil starter rope to the to left through the hole in the front wheel rope guide, twist the rope through the arm. Attach with a hair pin found in parts rope guide mounted on the right side of the handle.
- Page 6 KNOW YOUR EDGER READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR EDGER. Compare the illustrations with your EDGER to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference. Primer Button Fast Slow Stop Depth Control...
- Page 7 • Start the engine and move the depth Then see your Craftsman Service Center to control lever back to lower the cutting ,_ect the engine control lever problem.
- Page 8 BEFORE STARTING ENGINE Never fill the gas tank CAUTION: while the engine is running or hot. PRE-USE CHECK OF CONTROLS Immediately wipe off any spilled gasoline All controls should be checked !or proper before attempting to start the engine. function before servicing or starting the engine.
- Page 9 WARNING: Gasoline is flammable snap back, let it rewind slowly while and caution must be used when handling or holding the starter handle. storing it. Do not fill fuel tank while Edger is NOTE: If engine fails to start after three running, hot, or when Edger is in an pulls, push primer button two times and...
- Page 10 SCHEDULE SERVICE SERVICE DATES RECORDS Fill in dates After Before Fre- Every Every Every Begin Before you complete First Each quently Each StoragG regular service Hours Noun= Hours Season " Hours Lubricate all Pivot Points Check Engine Oil Level Change Engine Oil Replace Air Cleaner Filter Check Spark PlUg Check Drive Belt...
- Page 11 Oil Drain Plug CAUTION: Never run the engine without the air cleaner element installed. A defective air cleaner can result in loss of engine power and can cause excessive wear or damage to the engine components if dirt or dust is permitted to enter the engine through the carburetor.
- Page 12 and could damage the blade or belt. Refer to CAUTION: Always stop the engine previous figure for proper direction of belt and disconnect the spark plug wire before travel. making any repairs to the Edger. BLADE REPLACEMENT V-BELT REPLACEMENT The cutting blade is subject to wear and Your Edger is equipped with a V-belt made damage such as nicks and dents.
- Page 13 • If you do not want to remove gasoline, spark or pilot light from a furnace, water a fuel stabilizer (such as Craftsman fuel heater, clothes dryer, cigarette, etc. stabilizer No. 33500) may be added to...
- Page 14 Loose parts Stop engine immediately; tighten tion all bolts, If vibration continues, take the unit into the nearest Craftsman Service Center Engine will not Handle hardware is not cutting into Tighten T-knobs until the externa shut off when en-...
- Page 15 CRAFTSMAN 9" - 3.5 H.P. EDGER 536.772100 ENGINE/FRAME ASSEMBLY All unnumbered items are Note: Always use original equipment parts. Use of sen/ice/replacement parts interchangeable with opposite other than original parts may void your side warranty. 339589C REF. PART NO, PART NAME PART NAME PART NO.
- Page 16 CRAFTSMAN 9" - 3.5 H.P. EDGER 536.772100 HANDLE ASSEMBLY 343712C _EF, REF. PART NAME PART NO. PART NAME PART NO. Nut, Push on 1/4 314276 Bolt 5/16-18x.75 Carr. 711558 Cap, Operator Control 339489 Nut, 5/16-18 Hexwdfllk 45174 Insulator,Operator Control 339229 Handle, Lower 7/8"...
- Page 17 CRAFTSMAN 9" - 3.5 H.P. EDGER 536.772100 WHEELS/LINKAGE ASSEMBLY 343716B REF. REF, PART NO. PART NAME PART NO. PART NAME 109 180091 101 740091 Screw, 5/16-18x2.50 Rod, Axle Front 110 120393 103 20864 Flatwasher .344x.69x.065 Ring, Ret. E. 104 740126-833...
- Page 18 CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER: 143.993502 _33O 103, 215._. 277,...
- Page 19 NUMBER: 143.993502 CRAFTSMAN 4-CYCLE ENGINE MODEL "F. -'F, PART NAME PART NO. PART NAME PART Valve Spring 37280 Cylinder (Incl. 2 & 20) 31672 Valve Spdng Cap 26727 Dowel 31673 Intake Valv_ Spdng 33734 Breather Element 40017 Valve Cover Gasket 36557 Breather Assy(Incl.
- Page 20 CRAFTSMAN 4,-CYCLE ENGINE MODEL NUMBER: 143.993502 Carburetor No.640156 REF, PART PART PART NAME PART NAME 64Ol56 Carburetor 631024 Float Shaft _l_cl. 184 of Eng. Parts List) Float 632019 • 631615 rottle Shaft & Lever Ass'y. 631028 Float Bowl "O" Ring...
- Page 21 CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER: 143.993502 Starter No. 590694 PART PART NAME 590694 Rewind Starter 590599,_ Spring Pin (IncL4) 590600 Washer 390696 Retainer, 590601 Washer 590697 Brake Spdng 590698 Starter Dog 590699 Dog Spring 590700 Pulley & Rewind Sprg Assy...
- Page 22 For the repair or replacement parts you need delivered directly to your home Call 7 am-7 pm, 7 days a week 1-800-366-PART (1-800-366-7278) Para ordenar piezas con entrega a domicilio -1-800-659-7084 For in-house major brand repair service Call 24 hours a day, 7 days a week 1-800-4-REPAIR (1-800-473-7247) °...
