Craftsman 919.167260 Owner's Manual

Craftsman 919.167260 Owner's Manual

Permanently lubricated tank mounted air compressor
Hide thumbs Also See for 919.167260:

Advertisement

Available languages

Available languages

Quick Links

Download this manual
Owner's
Manual

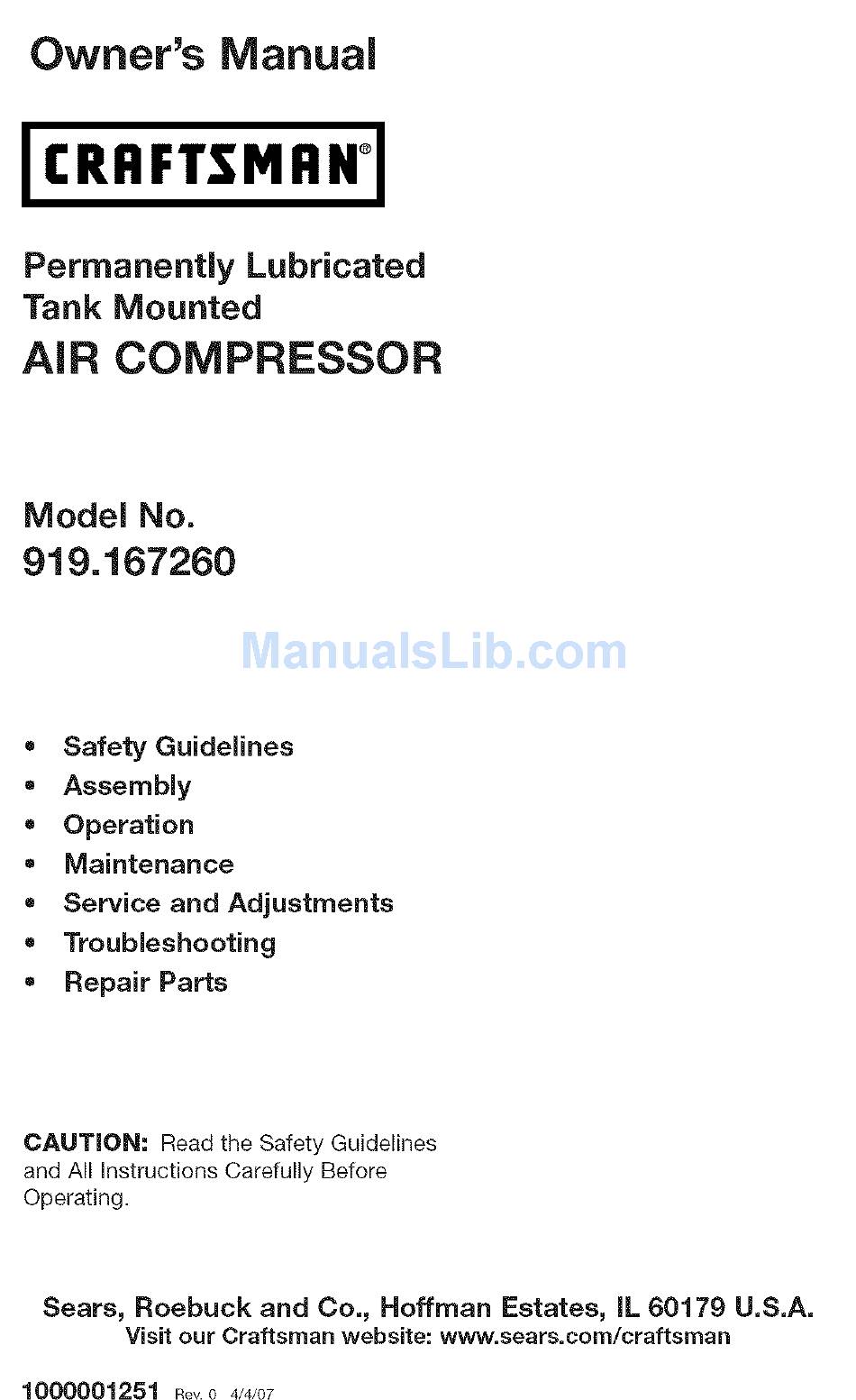

I CRAFTgMFINI
Permanently
Lubricated
Tank Mounted
AiR COMPRESSOR
=
Safety Guidelines
=
Assembly
=
Operation
=
Maintenance
=
Service
and Adjustments
=
Troubleshooting
=
Repair
Parts
CAUTION;
Read the Safety Guidelines
and All Instructions Carefully Before
Operating.
Sears,
Roebuck
and Co., Hoffman
Estates,
IL 60179
U.S.A.
Visit our Craftsman website: www.sears.com/craftsman
1000001251
Rev. o 4/4/07
