Adding 2 drives to the c1150 series jukebox - c1154-90001

Hide thumbs Also See for Surestore 160ex - Optical Jukebox:

7. Download code to the controller PCA and drives.

8. Run the Wellness Test from the control panel to verify installation.

9. Label the jukebox.

Place the product upgrade label that came with the capacity upgrade Use the C1160 label.

Do not cover the serial number. Refer to Figure 11 for placement.

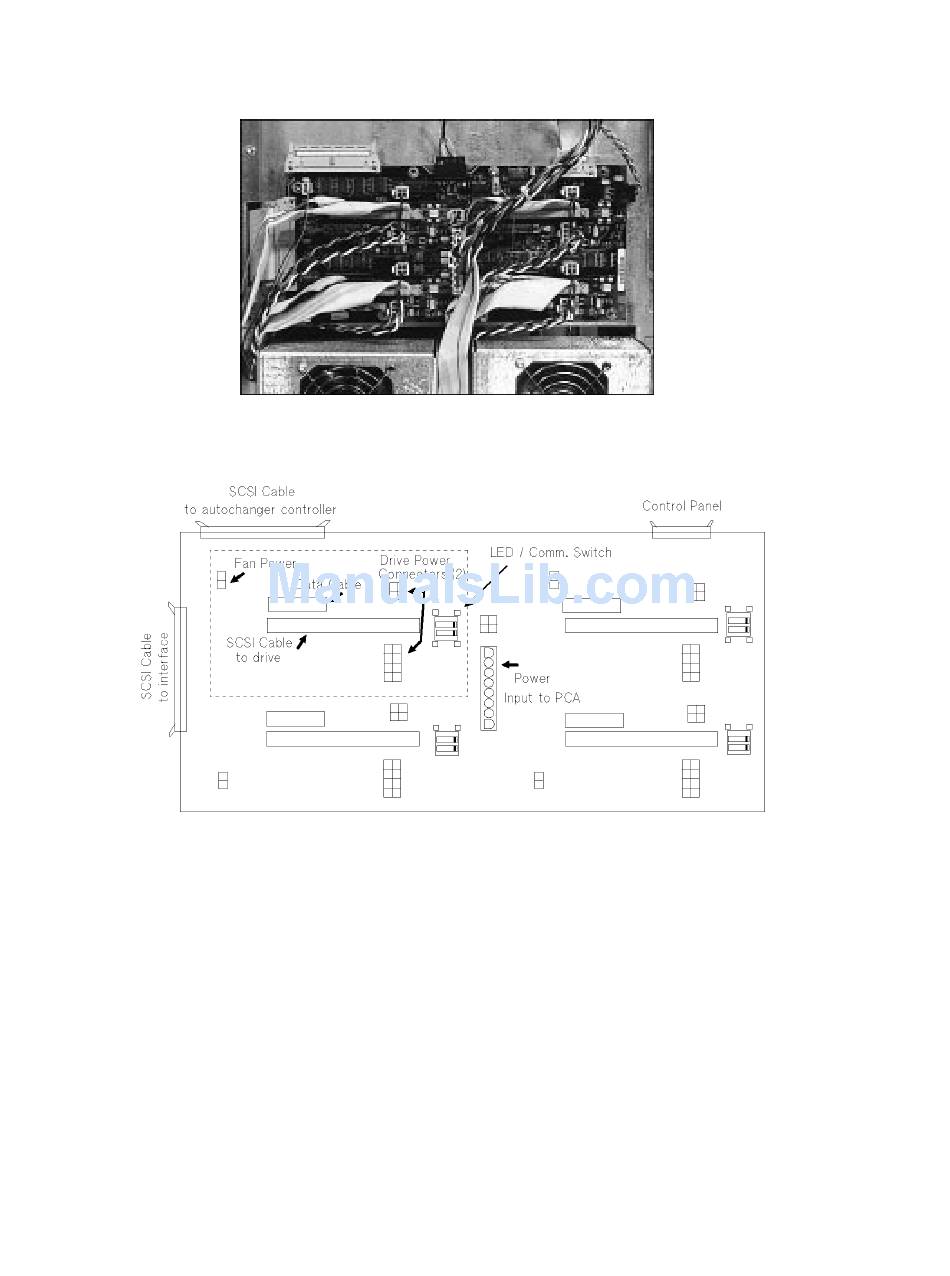

Figure 9: Cables mounted on the interposer PCA

Figure 10: Interposer PCA cable layout
