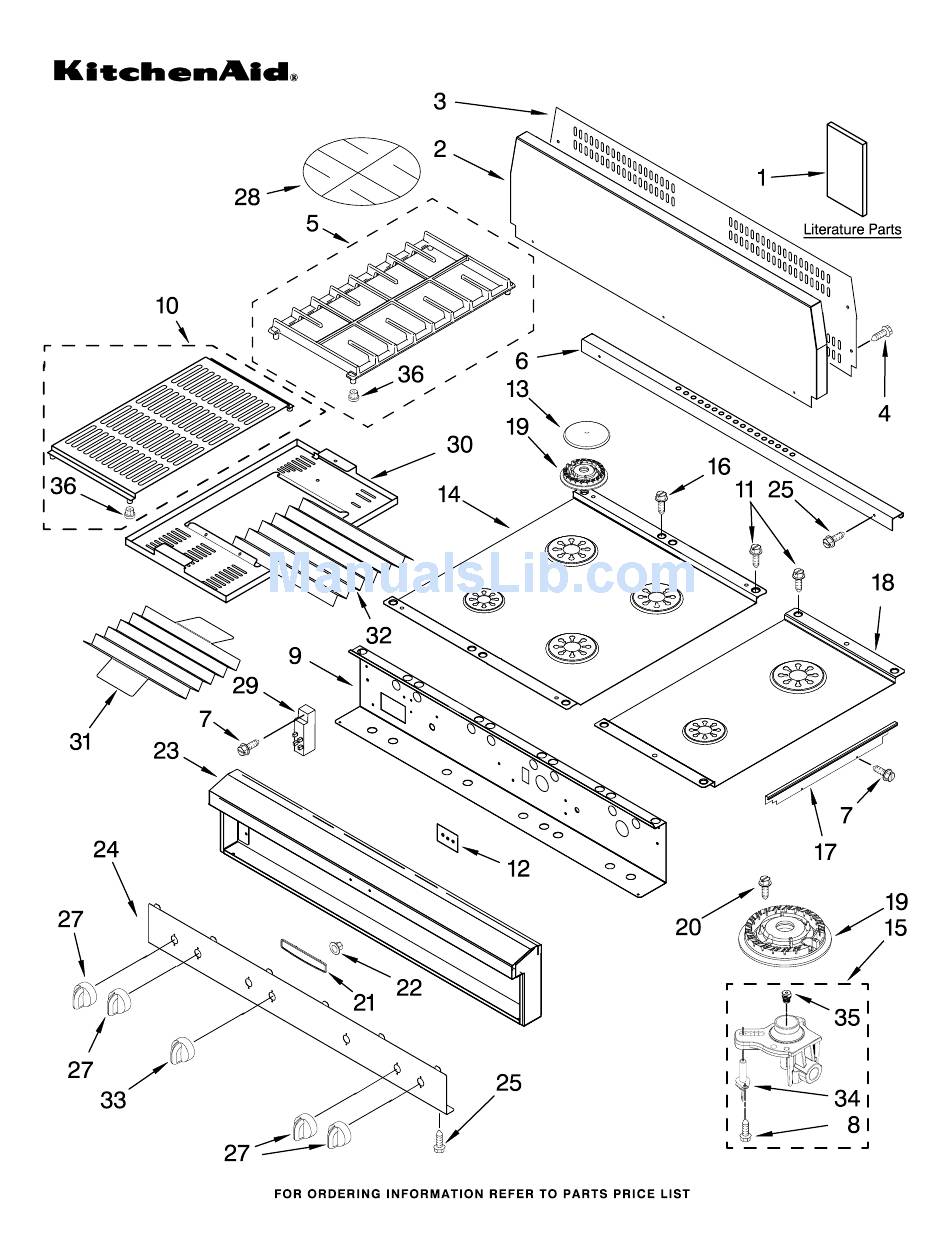

COOKTOP, BURNER AND GRATE PARTS

For Model: KGCP482KSS05

48" Stainless

(Stainless)

Professional Cooktop

(with grill)

09−08 Litho in U.S.A. (amd) (psw)

Part No.W10207228 Rev. A

Page 1 COOKTOP, BURNER AND GRATE PARTS For Model: KGCP482KSS05 48" Stainless (Stainless) Professional Cooktop (with grill) 09−08 Litho in U.S.A. (amd) (psw) Part No.W10207228 Rev. A...
Page 2 COOKTOP, BURNER AND GRATE PARTS For Model: KGCP482KSS05 (Stainless) Illus. Part DESCRIPTION Literature Parts 8285497 Tech Sheet W10162189 Use & Care Guide 9759405 Installation Instructions 9759442 Instructions, LP Conversion 8284730 Backsplash 8284760 Support,Backsplash 3196537 Screw 4457149 Grate, Burner 6 W10157549 Trim, Island 3400843 Screw 8273062 Screw, Spark Electrode...
Page 3 BURNER BOX, GAS VALVES, AND SWITCHES For Model: KGCP482KSS05 (Stainless) W10207228...
Page 4 BURNER BOX, GAS VALVES, AND SWITCHES For Model: KGCP482KSS05 (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 4455040 Tubing, Gas 4456816 Valve, Burner 8285361 Cover, Panel Small (2) 25 W10095290 Box, Burner Burner − RF 8523704 Bolt, Valve Lower 4455041 Tubing, Gas 9759091 Regulator,Pressure...
Page 5: Optional Parts
OPTIONAL PARTS For Model: KGCP482KSS05 (Stainless) Illus. Part DESCRIPTION WIRING HARNESS PARTS 8285527 Power Cord FE02349 Bushing, Electrical 4456907 Bushing 9760882 Harness, Grill 4456627 Harness, Ignitor "28" 4456628 Harness, Ignitor "42" Miscellaneous 8284782 L.P. Orifice Spud Pack W10207228...
