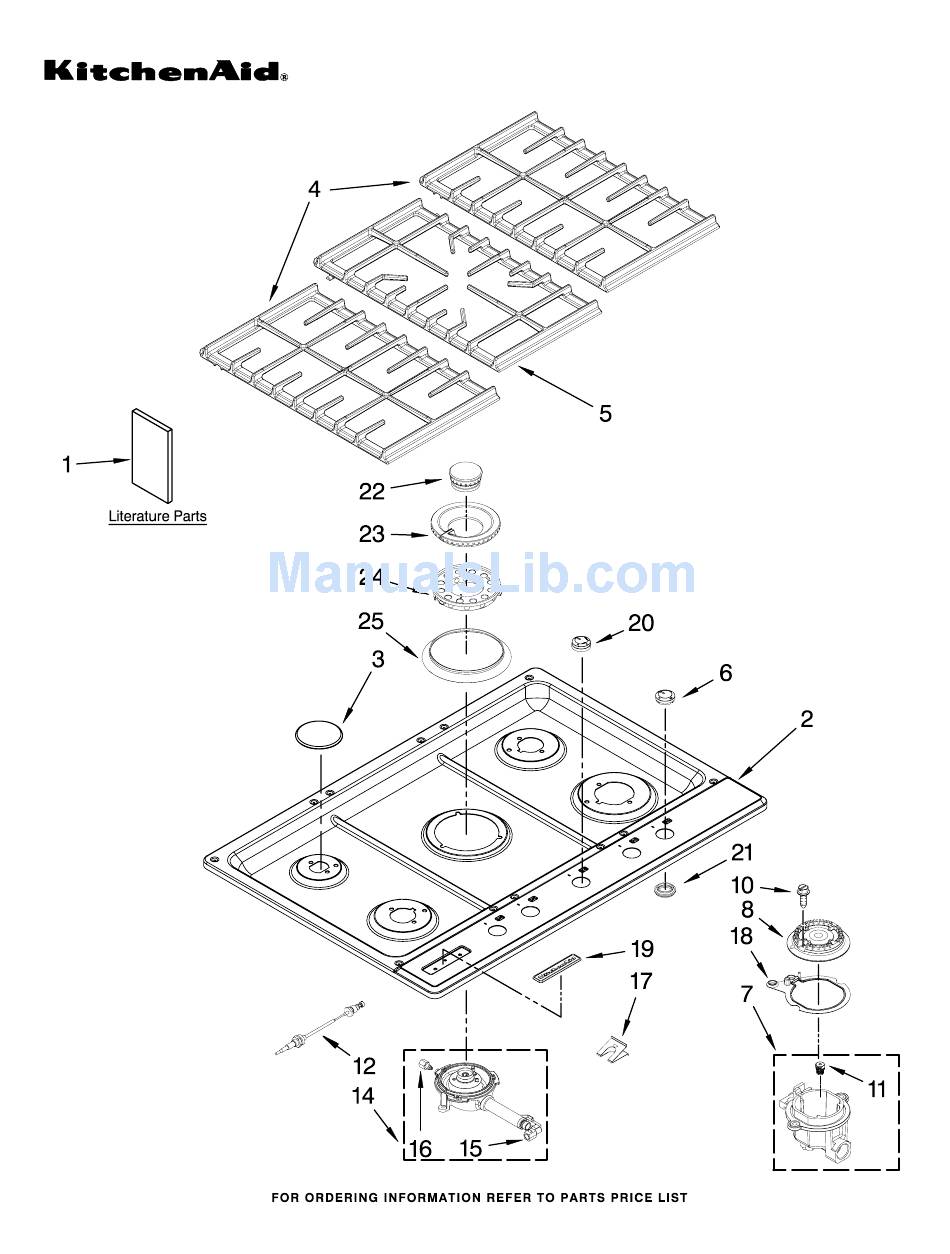

- Page 1 COOKTOP, BURNER AND GRATE PARTS 30" GAS COOKTOP For Model: KFGS306VSS01 (Stainless) 05−08 Litho in U.S.A (amd) (eeb) Part No. W10206139 Rev. A...
- Page 2 COOKTOP, BURNER AND GRATE PARTS For Model: KFGS306VSS01 (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 8287048 Grate, Center 8286819 Assembly, Burner Literature Parts 6 W10132192 Knob, Control (4) Base 8286867 Installation 15 W10137306 Orifice, External Holder, Orifice Instructions W10140570 RF 16 W10137303 Orifice, Simmer...
- Page 3 BURNER BOX, GAS VALVES, AND SWITCHES For Model: KFGS306VSS01 (Stainless) W10206139...
- Page 4 BURNER BOX, GAS VALVES, AND SWITCHES For Model: KFGS306VSS01 (Stainless) Illus. Part DESCRIPTION 8286753 Rail, Left Burner 8287309 Pipe, Manifold Valve, Gas Burner 8286916 LR 8286919 RR, LF 8286920 RF 8286917 Center 8287055 Bracket, Single Valve (4) 8286765 Rail, Center 8286691 Transformer 8286921 Screw 8286858 Bracket, Mainfold...
-
Page 5: Wiring Harness Parts
OPTIONAL PARTS (NOT INCLUDED) For Model: KFGS306VSS01 (Stainless) Illus. Part DESCRIPTION Following Parts Not Illustrated 8286692 Cord, Power 3177991 Screw 8286861 Insulation W10183572 Gasket, Rubber 930mm W10132168 Gasket, Rubber 1608mm Miscellaneous W10136725 LP Conversion Kit W10163327 Assembly, Mounting Hardware WIRING HARNESS PARTS 8286698 Harness, Main 8286686 Harness, Switch W10206139...
