Summary of Contents for KitchenAid KEBS278DBL1

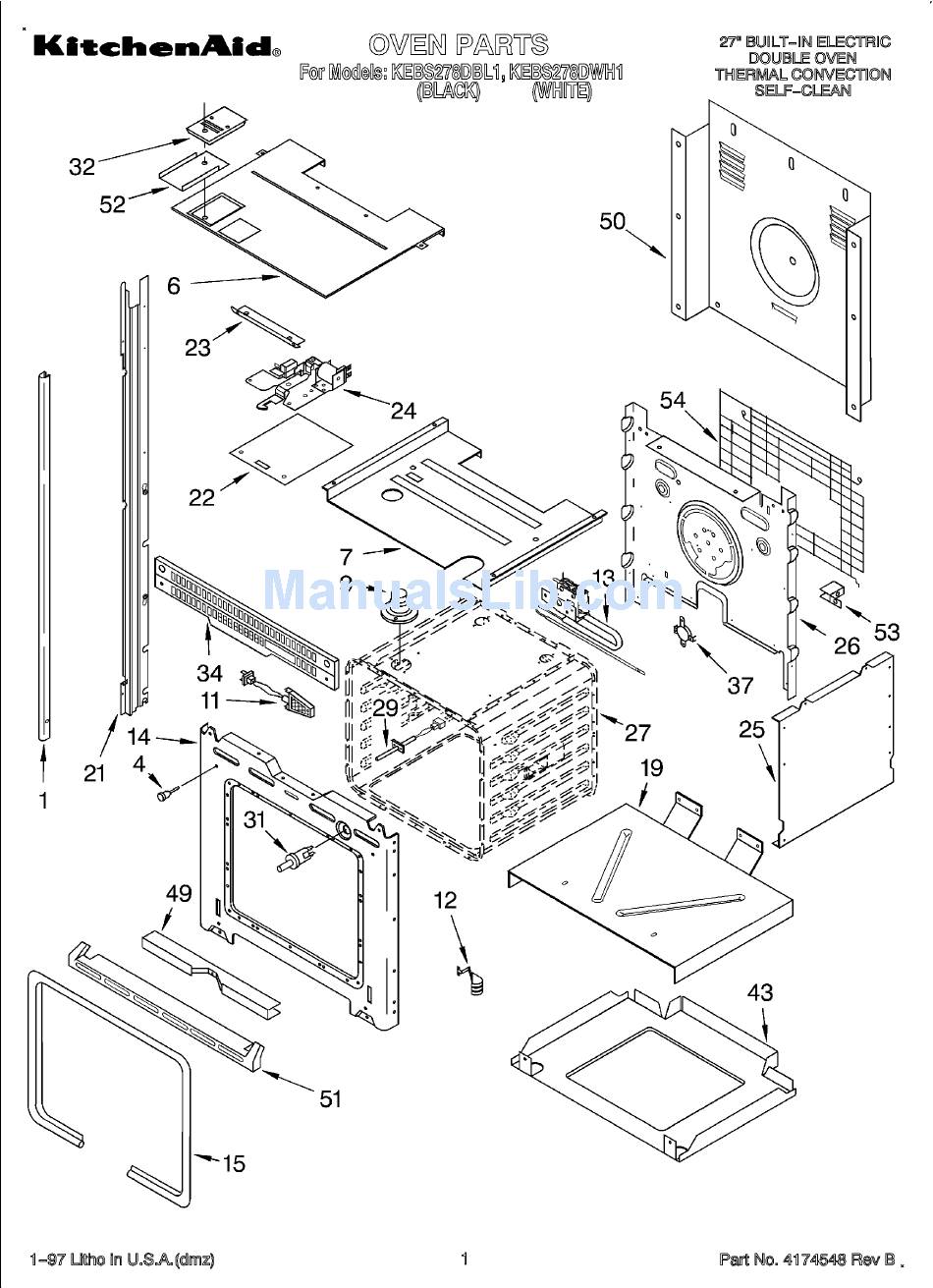

- Page 2 NOTE: The screws and nuts required to attach a part are listed immediately following that part. Trim, Side 4450850 RH Black 4450851 RH White 4450853 LH Black 4450854 LH White Screw 4449747 Black Model 4449041 White 4448520 Bumper, Door 4451038 Divider, Vent 4449809 Screw...
- Page 3 4449154 Screw 4450544 Cover, Back 4449809 Screw Trim, Bottom 4448458 Black Model 4448459 White Model 4159465 Screw Extension, Vent 4450797 Lower Oven 4450795 Upper Oven 4449809 Screw 4449845 Support, Bracket 4449809 Screw 4451002 Spacer, Harness 4449809 Screw FOLLOWING PARTS NOT ILLUSTRATED INSULATION 4449315 Insulation, Wrap...
- Page 5 NOTE: The screws and nuts required to attach a part are listed immediately following that part. Control Panel Assy. W/Membrane Switch 4451279 Black Model 4451280 White Model 4451033 Gasket, Control Panel 4448871 Microcomputer 4449745 Screw LITERATURE PARTS LIT4450410 Installation Instructions LIT4450571 Use &...
- Page 7 NOTE: The screws and nuts required to attach a part are listed immediately following that part. 4450428 Door Liner 4451173 Hinge, Door 4449743 Screw 4449253 Glass, Inner 4448679 Insulation, Top and Bottom Door 4450422 Retainer, Glass 4449809 Screw 4449257 Glass, Inner (2) 4449031 Retainer, Glass 4449809...
- Page 9 4448982 Plug, Button 4448701 Element, Broil 4449154 Screw 3147563 Grill, Broiler 3147845 Pan, Broiler 3181534 Rack, Roasting 4448715 Rack, Oven 4448695 Element, Bake 4448881 Nut, Hex 4448952 Fan, Convection 4449154 Screw 4448882 Washer, Lock 4451355 Jack, Meat Probe 4448948 Probe, Meat 4448722 Tray, Bake 4450039...
- Page 11 NOTE: The screws and nuts required to attach a part are listed immediately following that part. 3182384 Foam, Block 4450920 Blower 4450066 Bracket, Transformer 4450329 Transformer, (Lights) 4449809 Screw 4450366 Exhaust Duct 4449809 Screw 4450291 Transformer 4449809 Screw 4449868 Block, Terminal 3196181 Screw 4448551...
-
Page 12: Wiring Harness Parts
242825 Wire (14 Ga. 150 c Red) 242831 Wire (14 Ga. 200 c Red) 242826 Wire (14 Ga. 150 c White) 242827 Wire (14 Ga. 150 c Yellow) 242832 Wire (14 Ga. 200 c Yellow) WIRING HARNESS PARTS 4450951 Harness, Wire (Door Switch) 488366 Clamp 4449809...
