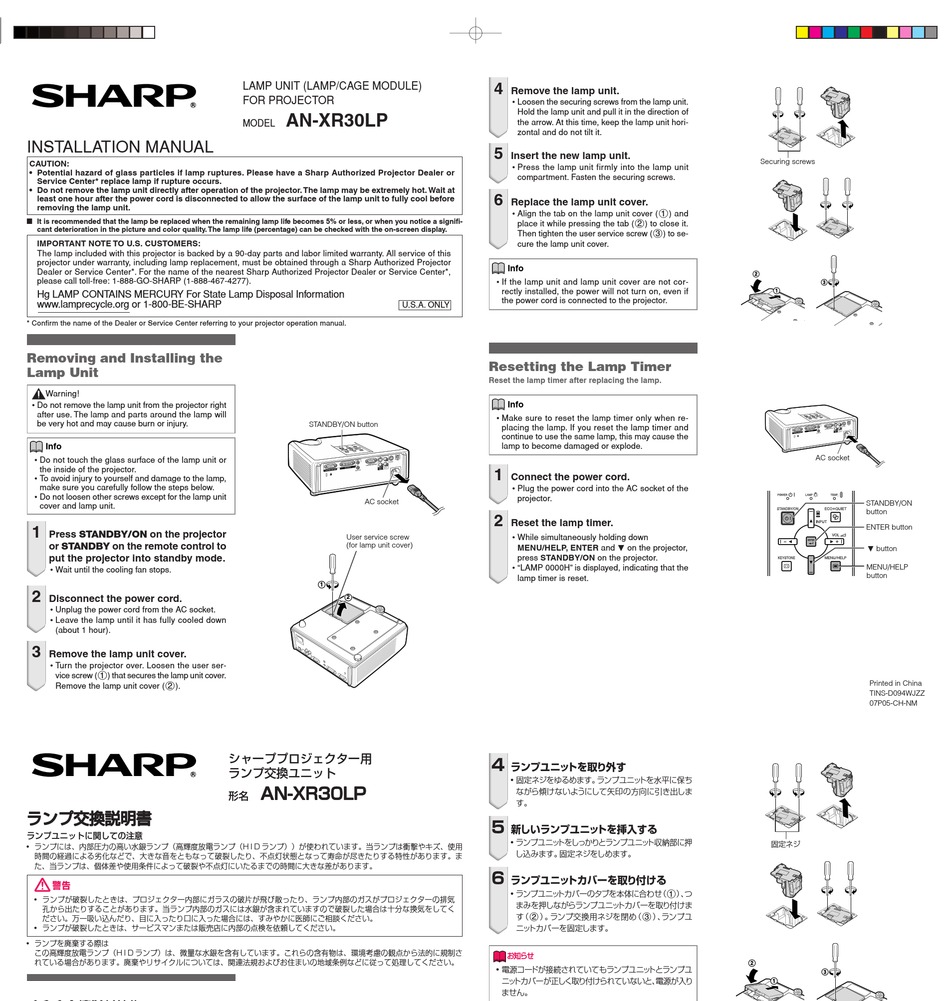

INSTALLATION MANUAL
CAUTION:
• Potential hazard of glass particles if lamp ruptures. Please have a Sharp Authorized Projector Dealer or
Service Center* replace lamp if rupture occurs.
• Do not remove the lamp unit directly after operation of the projector. The lamp may be extremely hot. Wait at
least one hour after the power cord is disconnected to allow the surface of the lamp unit to fully cool before
removing the lamp unit.
■ It is recommended that the lamp be replaced when the remaining lamp life becomes 5% or less, or when you notice a signifi-
cant deterioration in the picture and color quality. The lamp life (percentage) can be checked with the on-screen display.
IMPORTANT NOTE TO U.S. CUSTOMERS:
The lamp included with this projector is backed by a 90-day parts and labor limited warranty. All service of this
projector under warranty, including lamp replacement, must be obtained through a Sharp Authorized Projector
Dealer or Service Center*. For the name of the nearest Sharp Authorized Projector Dealer or Service Center*,
please call toll-free: 1-888-GO-SHARP (1-888-467-4277).
Hg LAMP CONTAINS MERCURY For State Lamp Disposal Information
www.lamprecycle.org or 1-800-BE-SHARP
* Confirm the name of the Dealer or Service Center referring to your projector operation manual.
Removing and Installing the
Lamp Unit
Warning!
• Do not remove the lamp unit from the projector right
after use. The lamp and parts around the lamp will
be very hot and may cause burn or injury.
Info
• Do not touch the glass surface of the lamp unit or
the inside of the projector.
• To avoid injury to yourself and damage to the lamp,
make sure you carefully follow the steps below.
• Do not loosen other screws except for the lamp unit
cover and lamp unit.
1
Press STANDBY/ON on the projector
or STANDBY on the remote control to
put the projector into standby mode.
• Wait until the cooling fan stops.
2
Disconnect the power cord.
• Unplug the power cord from the AC socket.
• Leave the lamp until it has fully cooled down
(about 1 hour).
3
Remove the lamp unit cover.
• Turn the projector over. Loosen the user ser-
vice screw (1) that secures the lamp unit cover.
Remove the lamp unit cover (2).
LAMP UNIT (LAMP/CAGE MODULE)
FOR PROJECTOR
AN-XR30LP
MODEL
U.S.A. ONLY
STANDBY/ON button
AC socket
User service screw
(for lamp unit cover)
1
2
4
Remove the lamp unit.
• Loosen the securing screws from the lamp unit.
Hold the lamp unit and pull it in the direction of
the arrow. At this time, keep the lamp unit hori-
zontal and do not tilt it.
5
Insert the new lamp unit.
• Press the lamp unit firmly into the lamp unit
compartment. Fasten the securing screws.
6
Replace the lamp unit cover.
• Align the tab on the lamp unit cover (1) and
place it while pressing the tab (2) to close it.
Then tighten the user service screw (3) to se-
cure the lamp unit cover.
Info
• If the lamp unit and lamp unit cover are not cor-
rectly installed, the power will not turn on, even if
the power cord is connected to the projector.
Resetting the Lamp Timer
Reset the lamp timer after replacing the lamp.
Info
• Make sure to reset the lamp timer only when re-
placing the lamp. If you reset the lamp timer and
continue to use the same lamp, this may cause the
lamp to become damaged or explode.
1
Connect the power cord.
• Plug the power cord into the AC socket of the
projector.
2
Reset the lamp timer.
• While simultaneously holding down
MENU/HELP, ENTER and R on the projector,
press STANDBY/ON on the projector.
• "LAMP 0000H" is displayed, indicating that the
lamp timer is reset.
Securing screws
AC socket
STANDBY/ON
button
ENTER button
R button
MENU/HELP
button
Printed in China
TINS-D094WJZZ
07P05-CH-NM
