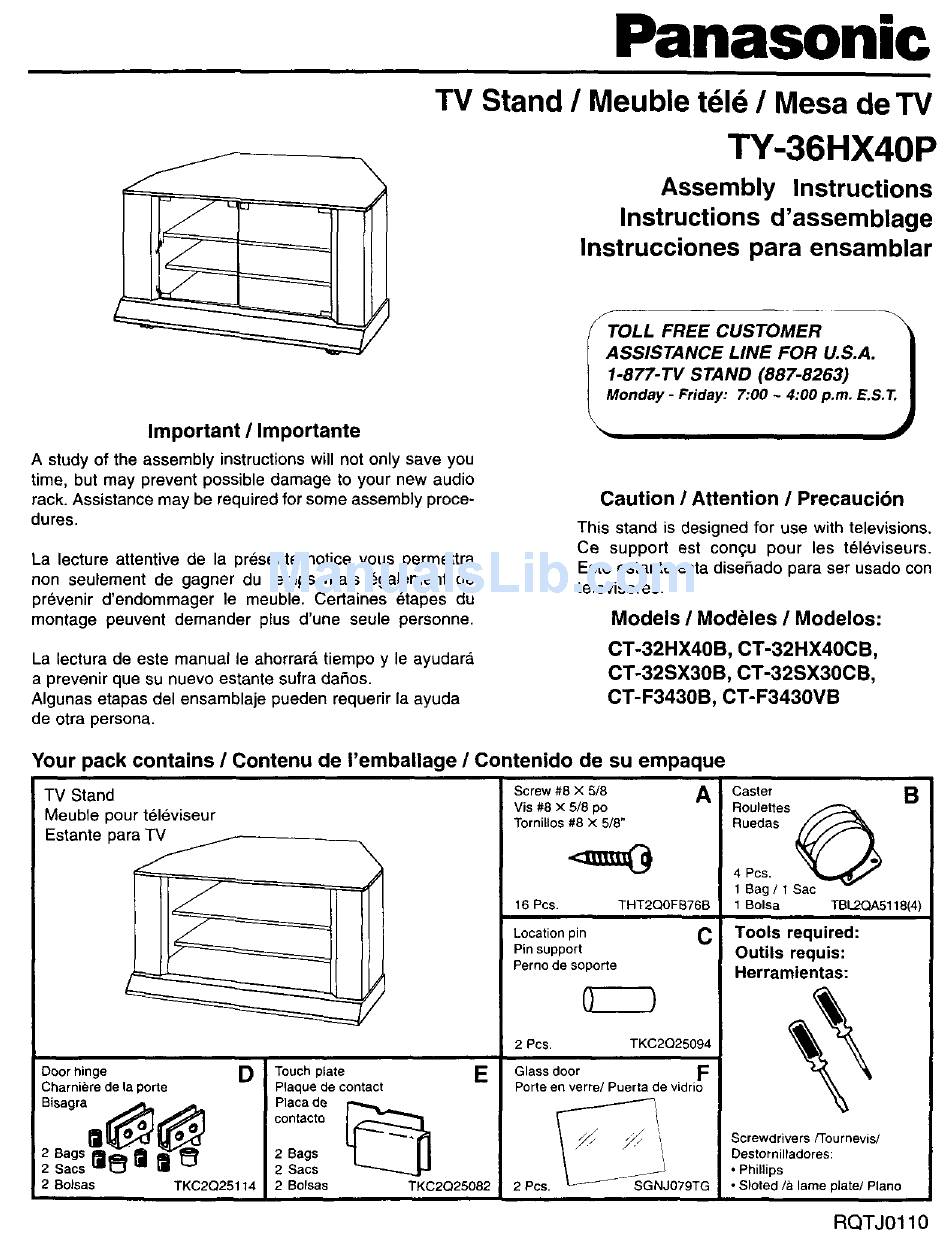

Panasonic
TV Stand / Meuble tdld / Mesa de TV
Important
/ Importante
A study of the assembly instructions will not only save you
time, but may prevent possible damage to your new audio
rack. Assistance may be required for some assembly proce-
dures.
La lecture attentive de la presente notice vous permettra
non seulement
de gagner du temps mais egalement
de
prevenir d'endommager
le meuble. Certaines
etapes du
montage
peuvent demander
plus d'une seule personne.
La lectura de este manual le ahorrard tiempo y le ayudara
a prevenir que su nuevo estante sufra dabSos.
Algunas etapas del ensamblaje pueden requerir la ayuda
de otra persona.
TY-36HX40P
Assembly
Instructions
Instructions
d'assemblage
Instrucciones
para ensamblar
OLL FREE CUSTOMER
SISTANCE
LINE
FOR U.S.A.
|
-877-TV
STAND
(887-8263)
|
onday - Friday: 7:00 ~ 4:00 p.m.E.S.T.
I
A
Caution
/ Attention
/ Precaucibn
This stand is designed for use with televisions,
Ce support est con_u pour les televiseurs.
Este estante esta diseSado para ser usado con
televisores.
Models
/ ModUles
/ Modelos:
CT-32HX40B,
CT-32HX40CB,
CT-32SX30B,
CT-32SX30CB,
CT-F3430B,
CT-F3430VB
Your pack contains
/ Contenu de I'emballage
/ Contenido
de su empaque
TV Stand
Meuble pour televiseur
Estante para TV
Touch plate
E
Plaque de contact
Placa de
_
contacto
2 Bags
2 Sacs
"_
2 Bolsas
TKC2Q25082
Door hinge
D
Charni_re de la porte
Bisagra
_
ag
2Sac_ I _
a II
2 Bolsas
TKC2Q25114
Screw #8 x 5/8
Vis #8 X 5/8 po
Tornillos #S X 5/8"
16 Pcs.
THT2QOFB76B
Location pin
C
Pin support
Perno de soporte
A
Caster
B
Roulettes
Ruedas
4 Pcs.
1 Bag / t Sac
1 Bolsa
TBL2QA5118(4)
Tools required:
Outils
requis:
Herramientas:
2 Pcs.
TKC2Q25094
Glass door
F
Porte en verre/Puerta
de vidrio
2Pcs.
_L_-_--SGNJ079TG
Screwdrivers
FTournevis/
Destornilladores:
• Phillips
• SIoted/a
lame plate/Piano
RQTJ0110
