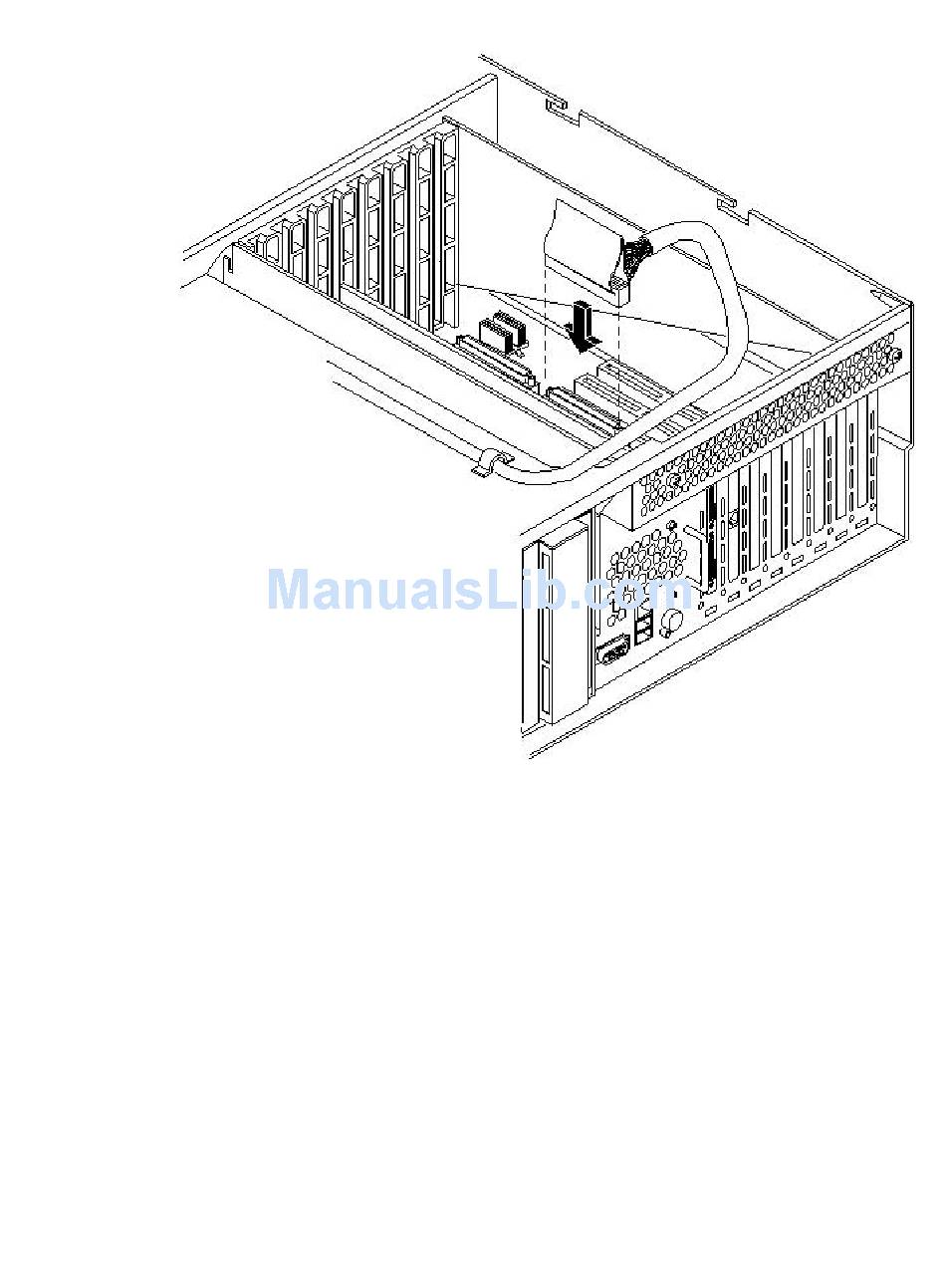

Figure 6-38 Connecting SCSI Cable B to the SCSI Adapter Board
7.
Close the swivel latch on top of the hot-pluggable disk drive cage.
8.
Replace the two hot-pluggable disk drives into the disk drive cage.
Installing the Server Components
To Install the necessary components in the server chassis, follow these steps:
1.
Install the processor extender board. See
2.
Install the memory extender board. See
3.
Install the front cover. See
4.
Install the front bezel. See
Verify the Upgrade Installation
After completing the upgrade, verify that the sever is ready for operation as follows:
1.
Reconnect AC power to rear panel connectors.
2.
Press the front panel power button to power on the server.
3.
Wait for completion of the POST. Verify that no errors have been detected.
4.
At the BCH prompt, enter the in io command. Verify that all installed disk drives are
recognized and operating correctly.
5.
Initiate the OS and monitor operation.
"Replacing the Processor Extender Board" (page
"Replacing the Memory Extender Board" (page
"Replacing the Front Cover" (page
"Replacing the Front Bezel" (page
U320 SCSI Enablement and Conversion Procedures
153).
152).
162).
156).
