WHIRLPOOL BATHTUB
Safety, Operation, Maintenance, & Warranty
This manual contains information for you. This information relates to YOUR SAFETY and will also help in PREVENTING
PROBLEMS. To help you recognize these items of importance, we will use the following symbols. PLEASE read the
Model: ______________________
Serial #: ____________________
OWNER'S MANUAL
10050073
SAFETY GUIDELINES
manual and pay special attention to these sections.
SAVE THESE INSTRUCTIONS!!!
! DANGER !
WARNING
CAUTION
Owner's Record
Installation Date: __________________________________________
Installer's Name: __________________________________________
Address: ________________________________________________
Telephone: ______________________________________________
This information may be required for service and warranty.
URGENT SAFETY INFORMATION -
A HAZARD THAT WILL CAUSE SERIOUS INJURY
IMPORTANT SAFETY INFORMATION -
A HAZARD THAT MIGHT CAUSE SERIOUS INJURY
I
NFORMATION TO PREVENT DAMAGE TO
.
EQUIPMENT
!
!
Advertisement
Table of Contents
Summary of Contents for Pearl Baths 10050073
-
Page 1: Safety Guidelines
SAVE THESE INSTRUCTIONS!!! ! DANGER ! WARNING CAUTION Model: ______________________ Serial #: ____________________ 10050073 SAFETY GUIDELINES manual and pay special attention to these sections. URGENT SAFETY INFORMATION - A HAZARD THAT WILL CAUSE SERIOUS INJURY IMPORTANT SAFETY INFORMATION - A HAZARD THAT MIGHT CAUSE SERIOUS INJURY... -
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS BASIC PRECAUTIONS TO BE TAKEN TO PREVENT FIRE HAZARDS, ELECTRICAL SHOCKS, PERSONAL INJURY OR DAMAGE WHEN USING YOUR UNIT. READ AND FOLLOW ALL INSTRUCTIONS! ! DANGER ! Urgent safety information; THE UNIT MUST BE CONNECTED TO A POWER SUPPLY CIRCUIT THAT IS PROTECTED BY A GROUND FAULT CIRCUIT INTERRUPTER (GFCI). -
Page 3: Table Of Contents
IMPORTANT SAFETY INSTRUCTIONS ................2 COMPONENT IDENTIFICATION TRUE WHIRLPOOL &... -
Page 4: Aeroeffect ® With Air Push
COMPONENT IDENTIFICATION Note: These drawings represent only the major components of the system; the position of the components may vary depending on the bath model. Note: These drawings represent Combined Systems; Whirlpool Systems components are identified with “ components are identified with “ ”. -
Page 5: Whirlpool Pump
TRUE WHIRLPOOL & AEROEFFECT ® Chromotherapy Air Control Whirlpool Jet Safety Suction WHIRLPOOL PUMP Our commercial quality pump is the heart of your whirlpool system. The pump is positioned on a specially designed cantilevered mounting base. It helps isolate and dampen vibration and noise, adding to your comfort and pleasure. PATENTED WHIRLPOOL JETS Pearl Whirlpool Bathtubs are not ordinary jetted tubs. -
Page 6: Back Massage System / Comfort Package
BACK MASSAGE SYSTEM / COMFORT PACKAGE The ergonomically-positioned jets provide a stimulating massage action to those sore tired muscles. The intensity of these rotating jets can be adjusted by turning the diverter valve located on the side of the bath (fig. 4). Turn the diverter valve to either the 3 o’clock or 9 o’clock position. -
Page 7: Operating The Controls
OPERATING THE CONTROLS AIR SWITCH PUMP CONTROL The air switch pump control (fig. 10) allows on/off control operations from within the tub. ELECTRONIC CONTROL WITH BACK LIGHTING TRUE WHIRLPOOL Functions Sets pump(s), blower and/or light run time. Turns all controls off. Sets the water temperature display preference (°F or °C). -
Page 8: Electronic Control True Whirlpool And Aeroeffect Systems
Starting the Option 1. Press and hold the control (the LED display cycles through the available settings of the option (second pump, THERMAZONE™ option)). 2. Release the control when the LED displays your desired selection. THERMAZONE™ Option: the range is 6-1, 6 being the highest (most heat) setting. The THERMAZONE™ heater defaults to the highest setting. -
Page 9: How To Use Your Whirlpool Bath
HOW TO USE YOUR WHIRLPOOL BATH Before taking your first bath, read and apply the "Important Safety Instructions" on Page 2. To reduce the risk of injury, do not permit children to use the whirlpool unless they are closely WARNING supervised at all times. - Page 10 must clean the system as outlined on the following page immediately after use. Bath Shops have a variety of products usable in your whirlpool bath, that do not contain oil. They have many fragrances that can enhance your whirlpool pleasure. Epsom Salts can be used in your whirlpool, but there are other mineral salts available that can also help relieve aches and pains.
-
Page 11: User Maintenance Instructions
Extreme heat from portable heaters and cigarettes can damage the surface of the tub. We do not recommend the use of oil based bath additives. Epson salts or other mineral salts may be used in the tub. -
Page 12: Troubleshooting
TROUBLESHOOTING WHIRLPOOL SYSTEM Pump is not functioning smoothly. • Adjust jet nozzle direction. • Unscrew the filter from the suction fitting and clean. Never obstruct the suction filter. • Make sure that pipe connections to the motor are tightened enough (tighten by hand). •... -
Page 13: Cable Operated Drain & Overflow
Back lighting control only A “C##” code appears on the LED display. • No action is required. The “C##” is pre-set by the manufacturer to indicate to the controller the features included with your jetted bath. A “E##” code appears on the LED display. •... -
Page 14: Limited Warranty
LIMITED WARRANTY Pearl Baths, Inc. (hereafter "MAAX") offers the following express limited warranty on each of its products. This warranty extends only to the original owner/end-user for personal household use. For commercial uses, additional limitations apply. MAAX warrants acrylic units to be free from defects in workmanship and materials under normal use and service for a period of twenty five (25) years from the initial date of purchase by the owner/end-user, contractor or builder from an authorized dealer. - Page 15 Notes Notes...
- Page 16 Save this manual for future reference NOTICE INSTALLER: Underwriters Laboratories and some state agencies require that this Owner’s Manual be left with the home owner or with the tub after installation. Important safety instructions, warranty information and the product registration card are contained within.
Need help?
Do you have a question about the 10050073 and is the answer not in the manual?
Questions and answers

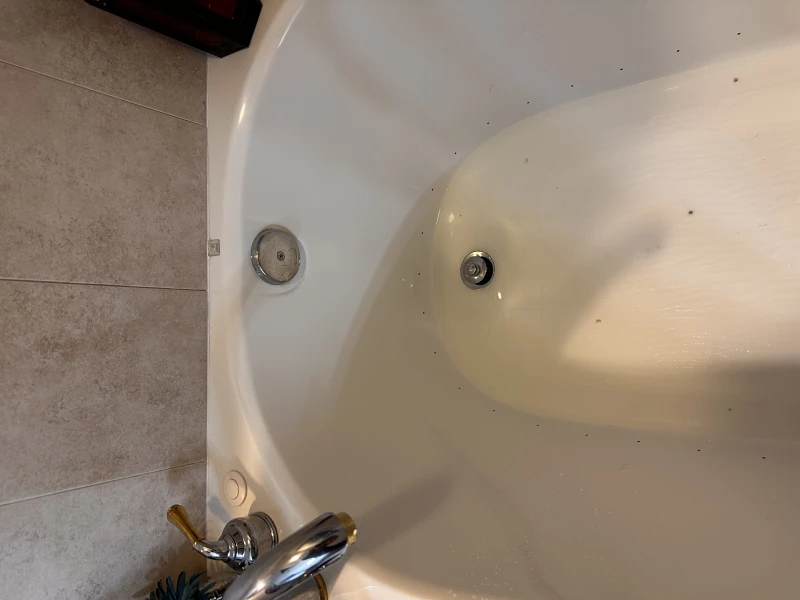

Hi there. We have a pearl air massage tub. Photo attached. The blower does not come on when the button is pressed. The power connection is good with power to the gfi that the unit is plugged in to. Does this likely mean that the blower motor meess to be replaced?
