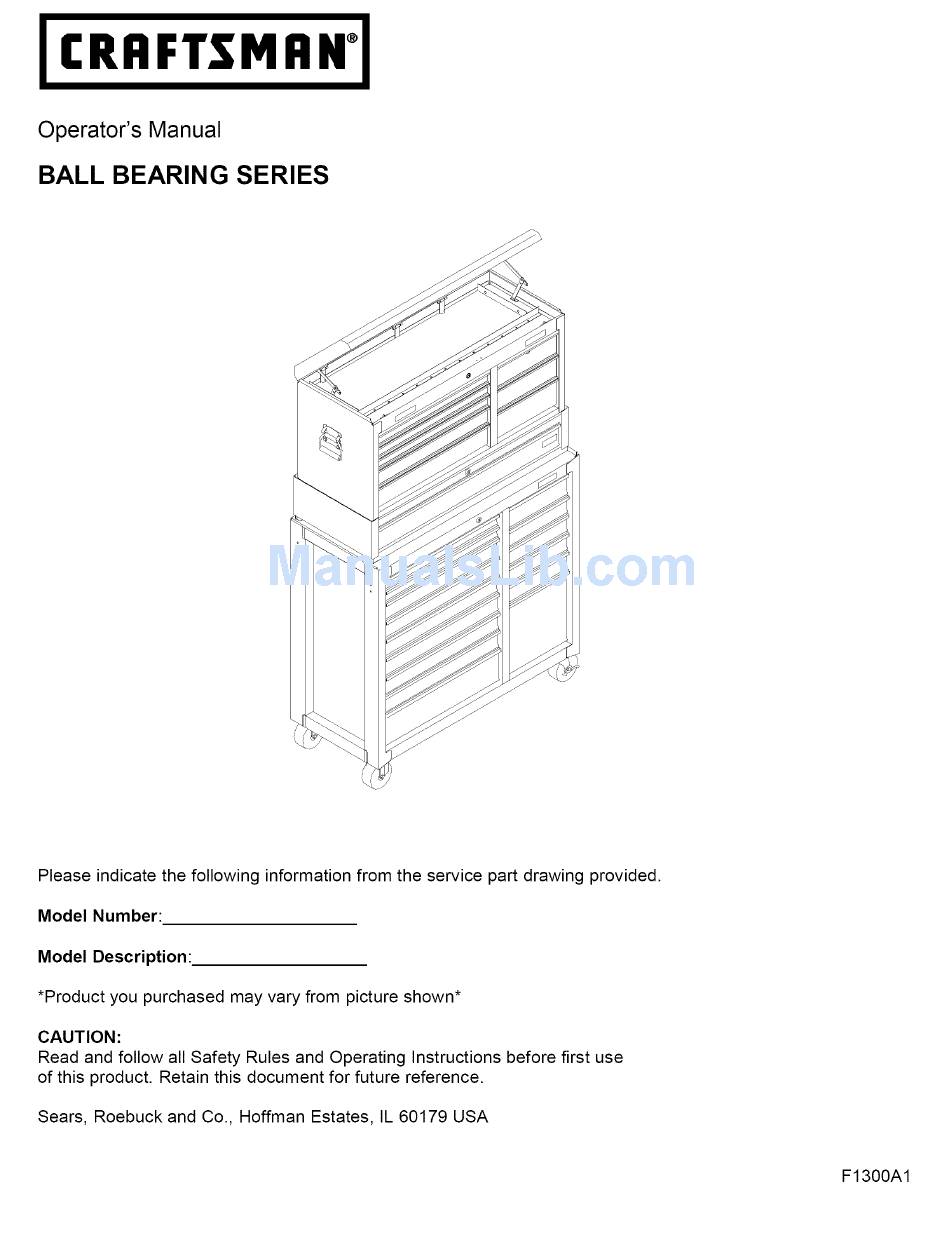

CRRFTSMRN °
Operator's Manual
BALL
BEARING
SERIES
Please indicate
the following
information
from the service
part drawing
provided.
Model
Number:
Model
Description:
*Product
you purchased
may vary from picture shown*
CAUTION:
Read and follow all Safety Rules and Operating
Instructions
before first use
of this product.
Retain this document
for future reference.
Sears, Roebuck
and Co., Hoffman
Estates,
IL 60179 USA
F1300A1
