Wiring Diagram
The MCL-2004(-R) gauges will work on
2004-2011 models except 2011 Softail.
It is a direct plug in on these models
and requires no additional wiring.
Auxiliary indicators can be wired to the
gauge.
IMPORTANT NOTE!
100 miles (160km) of operation. See "preset odometer" for instructions.
Mounting:
The MCL-2004(-R) is designed to fit in the "Fat Bob" style five inch diameter dash mount gauge openings.
For all models except Deuce
NOTE: The supplied ABS mounting ring is not used for these applications and can be discarded
L-Bracket (supplied)
MODEL MCL-2004(-R)

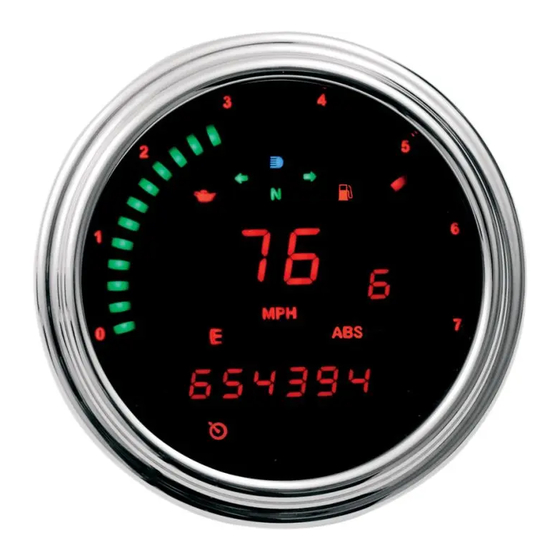

TANK MOUNT SPEEDOMETER/TACHOMETER
This gauge has an odometer preset option that is only available for the first
Dakota Digital Gauge
MCL-2004 (-R)
Factory Gasket
Factory Dash Panel
#8 Lock Washer
8-32 x ½" Screw
MAN# 650304:F
Advertisement
Table of Contents
Related Manuals for Dakota Digital MCL-2004(-R
Summary of Contents for Dakota Digital MCL-2004(-R
- Page 1 The MCL-2004(-R) is designed to fit in the “Fat Bob” style five inch diameter dash mount gauge openings. For all models except Deuce NOTE: The supplied ABS mounting ring is not used for these applications and can be discarded Dakota Digital Gauge MCL-2004 (-R) Factory Gasket...
- Page 2 Since the Deuce gauge mounts from under the dash, mounting requires use of the supplied ABS bracket. Factory Dash Mounting Tabs (cast in Panel dash) Factory Bezel Gasket Dakota Digital Gauge MCL-2004 (-R) New ABS Mounting Bracket (supplied) #8 Lock Washer 8-32 x ½” Screw MAN# 650304:F...
- Page 3 Unclip and unplug the factory gauge Remove the rubber gasket from the factory gauge bezel Install gasket over the bezel of the Dakota Digital gauge. The gasket doesn’t cover the entire bezel, there should be some chrome showing when the gasket is installed Screw the ABS mounting bracket to the back of the gauge with the two 8-32 screws and lock washers.
- Page 4 Wiring The gauge is a direct plug in on 2004 and newer bikes. The only wiring, which is optional, is for the indicator lights and auxiliary pressure/temp gauges if you choose. POWER Constant battery power and key switched power are supplied by the stock harness. GROUND Ground is supplied by the stock harness.
-
Page 5: Speed Calibration
SPEEDOMETER SETUP Press and hold the switch while turning the key on and starting the engine. Once the engine is running, release the switch. Press and release the switch to change the menu selection. dIAG dIAG Diagnostics mode for checking/clearing trouble codes dIAG dIAG Press and release the switch until “dIAG”... -
Page 6: Tachometer Setup
Sender Sender Pressure sender setup The gauge can use the following Dakota Digital pressure sensors: SEN-1031 (0-150 psi), SEN-1032 (0-75 psi), or SEN- 1035 (0-400 psi) Press and release the switch until “Sender ” is displayed, then press and hold the switch until “ - ” is displayed. - Page 7 Press and hold the switch until “ - ” is displayed to select the setting. OFF turns the low fuel function off and disables the low fuel light on the Dakota Digital gauge so it will never turn on. Turning the function on will access the following menus...
- Page 8 RANGE RANGE RANGE RANGE Distance to Empty setup The range reading will initially show the word range until a tank of gas has been driven to allow the gauge to complete its setup based on your driving. Begin with a full tank of gas and do not refill it until it gets below ¼ tank of gas. This can be done on multiple trips as long as no fuel is added before it gets low enough.
-
Page 9: Function Switch
FUNCTION SWITCH The function switch on the side of the dash panel allows access to all of the mileage, rpm, and performance information. Pressing and releasing the function switch toggles through the different displays. Press and holding the switch will reset the current display. The display sequence is as follows: CLOCK >... -
Page 10: Troubleshooting Guide
Any action for breach of any warranty hereunder, including any implied warranty of merchantability, must be brought within a period of 24 months from date of original purchase. No person or representative is authorized to assume, for Dakota Digital, any liability other than expressed herein in connection with the sale of this product.
