Campbell Hausfeld WS090001AV Owner's Manual Addendum

BUILT TO LAST
Additional Model Instructions
Addendum to Owner's Manual
Description

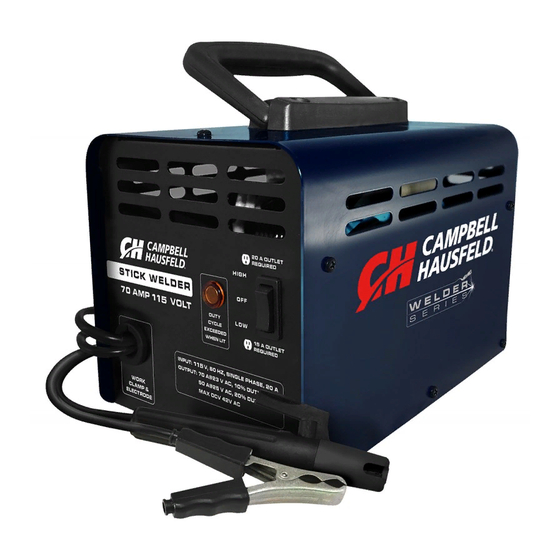

Thank you for purchasing the
Campbell Hausfeld 70 amp Arc Welder,
Model #WS090001AV. This instruction
sheet is to be used in conjunction with
the standard owner's manual included
with the welder (IN198904AV). Please
refer to this sheet for WS090001AV
assembly instructions.
NOTICE
!
Please read all
warning instructions in
the owner's manual
before operating.
Components
The WS090001 comes with the
following additional equipment:
• Automatic amperage adjustment -
low position for 1/16" rods and
high position for 5/64" rods--for
ease of use.
• Cable storage clips (shown in
Handle Assembly) for safer storage
of welding cables.
Handle Assembly
1. Align the end holes on the handle
with the holes on top of the welder,
then secure with screws (Figure 1).
Figure 1
© 1999 Campbell Hausfeld/Scott Fetzer
TM
2. Insert cable clips by pressing inward
on sides of clip and pushing into
the slots on front of handle as
shown in Figure 2. Repeat for
opposite side of handle.
MANUAL
Figure 2
Electrode Holder Assembly
(Refer to Figure 3)
1. Remove insulation handle from the
holder body by pulling the two
Figure 3 - Electrode Holder
For parts, product & service information
visit www.campbellhausfeld.com
Shielded Metal
Arc Welder
2. Slide the other weld cable through
3. Loosen the wire clamping screw
4. Slide the handle over the electrode
Model WS090001AV
pieces apart.
the handle.
and slide the bare cord wire under
the clamp block. Tighten the
clamping screw and make sure the
wire is secure.
holder body and press to stop.
Make sure the handle is secure and
there is no exposed metal on the
holder.
IN170138AV 2/99
