CONGRATULATIONS!
Your new Alarm Lock Trilogy electronic digital lock is a rugged entry lock
of advanced design with several programmable features. Three security
levels are provided: Master (can perform ALL functions), Manager (can
perform MOST functions plus entry), and Basic User (entry only).
The lock includes 100 User Codes (consisting of Managers and Basic
Users), plus three "one-time entry" Service Codes. The Manager/Basic
User Codes are organized similar to a grid--ten banks of ten Access
Codes.
Take the time to read through this guide to familiarize
yourself with the features and operations of the lock,
and its quick and easy programming procedures.
Features
1 Master Code (all functions including entry)
10 Manager Codes (perform SOME programming
functions plus entry)
90 Basic User Access Codes (Entry Only)
3 Service Codes ("One-Time Entry" Codes)
Two User Disable Modes:
All User Codes Disabled Except Master Code
All User Codes in a Bank Disabled Except
Manager Codes
30-Second Keypad Anti-Tamper Lockout:
(Keypad Lockout After 3 Unsuccessful User Code
Entries)
Programmable Relay Functions:
(Relay may be keypad programmed to energize
on any keypress 0-9 or on unlock).
© ALARM LOCK 2003
Trilogy
DL2700 Programming
Instructions
QUICK LOOKUP
Wiring ................................................................ 2
Quick Start ....................................................... 2
Testing Codes ................................................... 3
Manager & User Location Example .................. 5
Change Existing Master Code ...................... 7
Add/Change Manager Codes ....................... 7
Add/Change User Codes .............................. 7
Deleting Codes ............................................. 7
Disable/Enable Users ................................... 7
Disable/Enable All ........................................ 8
Code Location Function ................................ 8
Next Free Code Address Locator ................. 8
Add/Delete Service Codes .......................... 9
Enable/Disable Passage Mode .................... 9
Disable/Enable Groups ................................. 9
Disable/Enable Users in Bank .................... 10
Keypress Sound Options ............................ 10
AUX Relay Functions ................................. 10
Lock Identifier ............................................. 10
Audible and LED Indications ........................... 11
Battery Replacement ....................................... 11
Erase All Programming ................................... 11
Limited Warranty ............................................. 12
OI209A 2/04
DL2700
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Trilogy DL2700 and is the answer not in the manual?

Questions and answers

Related Manuals for Alarm Lock Trilogy DL2700

Summary of Contents for Alarm Lock Trilogy DL2700

  • Page 1: Table Of Contents

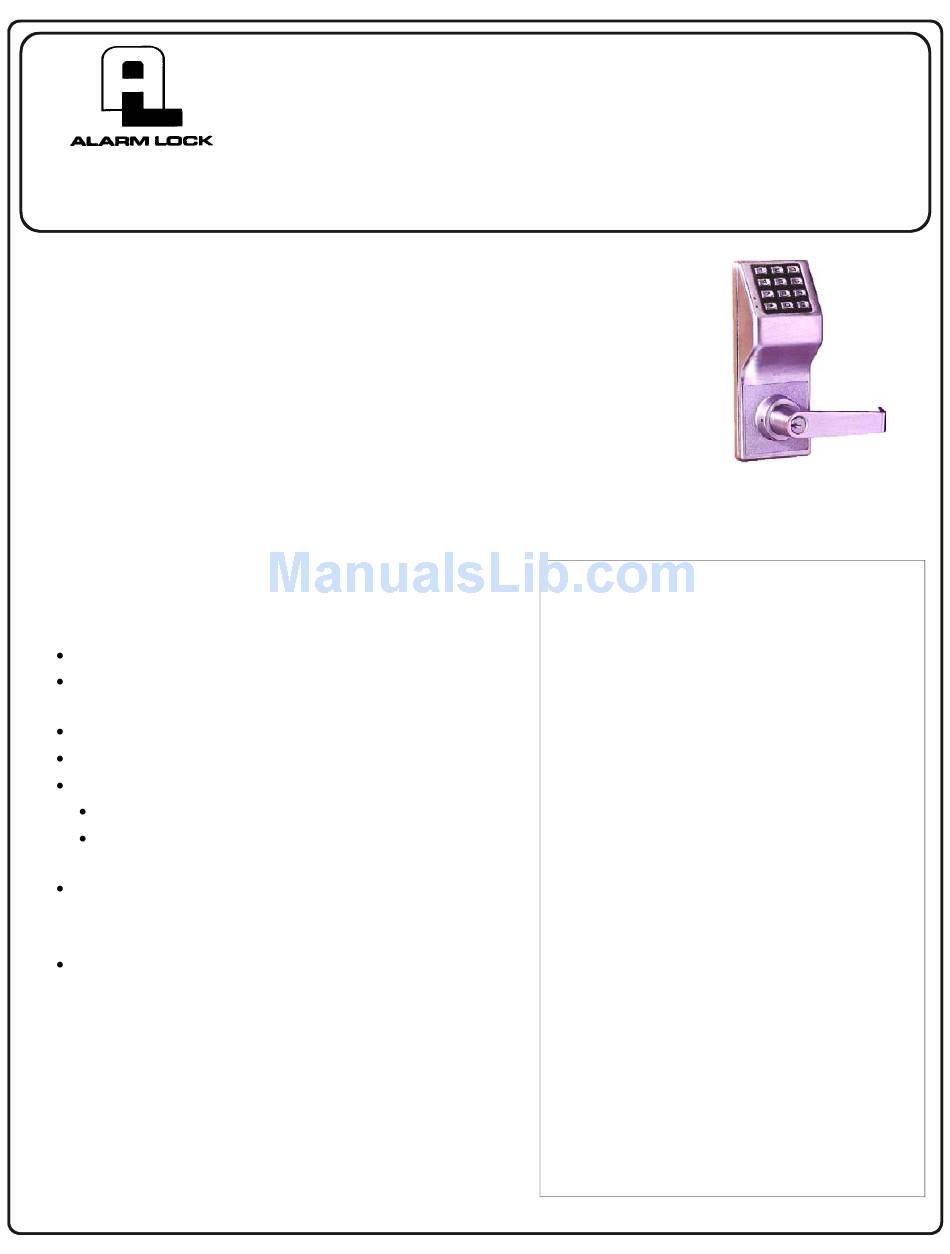

    © ALARM LOCK 2004 OI209A 2/04 CONGRATULATIONS! Your new Alarm Lock Trilogy electronic digital lock is a rugged entry lock of advanced design with several programmable features. Three security levels are provided: Master (can perform ALL functions), Manager (can perform MOST functions plus entry), and Basic User (entry only).

  • Page 2: Wiring

    Wiring See the Installation Instructions for more information. Aux Relay: Aux Relay allows up to 300mA @ 60VDC Maximum. Batteries: See page 10 for programming options for the Use only 1.5 volt Duracell Alkaline size-AA batteries. Relay ("AUX Relay Functions"). External Power: BLUE = Common, YELLOW = N/O, GREEN = N/C.

  • Page 3: Enter Manager/Basic User Access Codes

    Quick Start (cont’d) Enter a Manager Code Manager Codes are located at locations 00, 10, 20, 30, 40, 50, 60, 70, 80, and 90 (see grid on page 4). Note: New Manager Codes MUST use the same number of digits as the (new) Master Code. Enter as follows. 1.

  • Page 4: Manager & User Location Worksheet

    Manager & User Location Worksheet The DL2700 lock provides three "security levels": Master (can perform ALL functions), Manager (can perform SOME program- ming functions plus entry), and Basic User (entry only). In total, there are 104 "locations" inside the DL2700 lock: one Master Code, 10 Manager and 90 User Access Codes, and three "one-time entry"...

  • Page 5: Manager & User Location Example

    Manager & User Location Example User Access Codes allow access only; Manager Codes allow more: Manager Codes have the ability to program and delete User Access Codes within that Manager's Bank (column). The DL2700 lock can hold up to 10 Manager Codes, one for each Bank (locations (00), (10), (20), (30), (40), (50), (60), (70), (80), (90)), and are all found at the top row of the grid be- low.

  • Page 6: Programming Worksheet: Functions

    Programming Worksheet: Functions Directions: The Factory Master Code (1-2-3-4-5) must first be reprogrammed as a new Master Code before any other programming can take place. All new Access Codes must have the same number of digits as the new Master Code. Choose new Access Codes and write them in spaces provided (in pencil) before programming the lock.

  • Page 7: Change Existing Master Code

    Programming Functions Change Existing Master Code* ; 1 ; For new locks, follow the "Quick Start" on page 2. __ __ __ __ __ ; 1 ; __ __ __ __ __ __ __ __ __ __ Old (or "Factory") Master Code New Master Code* Confirm New Master Code* Add/Change Manager Codes...

  • Page 8: Disable/Enable All

    Programming Functions (cont'd) Enable/Disable All Disable All: If Master Code is used, disables all 100 User\Manager Codes and clears all 3 Service Codes. If a Manager Code is used, disables all Users (even across multiple Banks) under that Manager. Disable Users Only: If Master Code is used, disables all 90 Users and clears all 3 Service Codes, while Manag- ers remain active.

  • Page 9: Add/Delete Service Codes

    Programming Functions (cont'd) Add/Delete Service Codes Service Codes are one-time-only Codes; once entered into the keypad, it is deleted. Use the same Code up to 3 times by programming all three Service Codes with the same Code. Note: Service Codes are lost if power is removed.

  • Page 10: Disable/Enable Users In Bank

    Lock Identifier To aid in distinguishing your lock model from earlier Alarm Lock versions, your DL2700 model will respond to any two digits plus the star key by (1) lighting the green LED and (2) playing a musical scale of 8 notes.

  • Page 11: Audible And Led Indications

    Audible and LED Indications When a key is pressed, a beep will sound and a Red LED will flash. Other indications are: ▪ Access Granted: 1 beep and a Green LED flash. (When Pass Time ends, the DL2700 locks with a beep and a Red LED flash).

  • Page 12: Limited Warranty

    ALARM LOCK will, In no event shall ALARM LOCK be liable for an within said period, at its option, repair or replace any amount in excess of ALARM LOCK's original selling...
