EPSON ActionNote 890 Series
Optional Equipment
I
4MB, 8MB, or 16MB memory expansion module
I
User-removable 540MB, 810MB, or 1.2GB hard disk drive
I
14.4Kbps baud internal data fax/modem
I
115.2 kbits/second IrDA-compliant infrared device
I
16-bit, SoundBlaste®l6-compatible stereo audio card
I Additional NiMH batteries
I Extra AC adapter or international AC adapter
I
Adapter for an automobile cigarette lighter
I External battery charger
I External keyboard
I Numeric keypad
I PCMCIA Type I, II, and III cards including flash RAM,
SRAM, modem, fax/modem, and LAN cards
I
ActionPort Replicator
I
Portable CD-ROM player
I Carrying case
I Kensington MicroSaver® Security Lock.

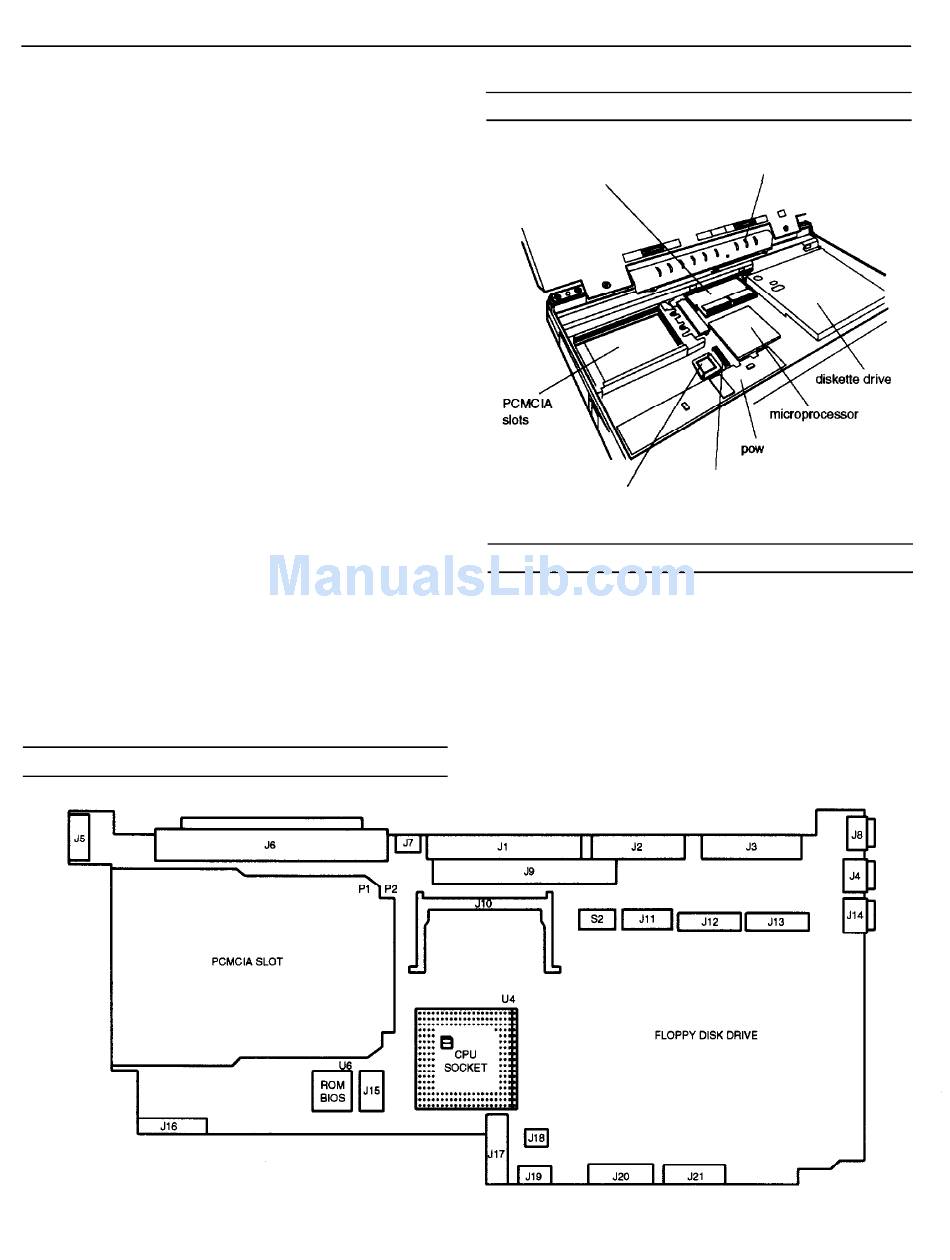

System Board Components

AN890-4

Major Subassemblies

memory module
BIOS ROM

Memory Module Installation

The computer comes with 8MB memory standard, but may
have 4 or 8MB of memory soldered on the system board. It
includes a single memory module socket which contains a
4MB module on units with 4MB soldered on the system
board. You can increase the memory up to 24MB by removing
the original module, if one is installed, and installing a 4, 8, or
16 memory module. (You can install a 20MB module on units
that have only 4MB soldered on the system board.)
8/25/95
LED panel (LED card or
under
audio/LED card panel)
er converter board
fax/modem
connector
