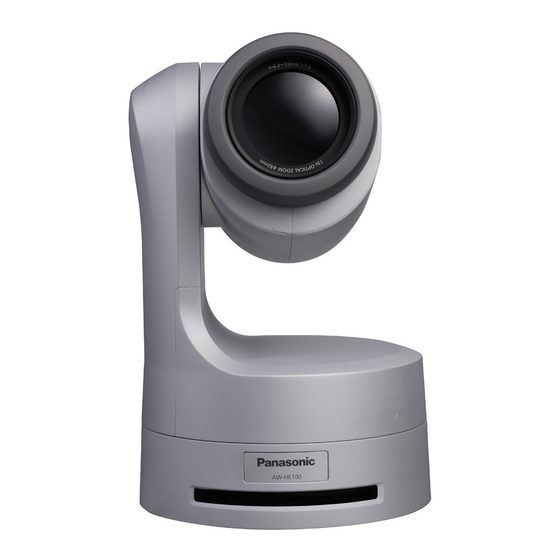

- Page 1 Panasonic Broadcast AW-HE100 Menu Information...
-
Page 2: Basic Menu Operations
The menu operations are conducted using the accessory wireless remote control. If a controller is connected, they can also be conducted using the controller. It may be necessary to upgrade the controller’s version in order to support the AW-HE100. For further details, consult with your dealer. -
Page 3: Remote Control
Basic menu operations When performing the operations using the accessory wireless remote control Press the [CAM1], [CAM2], [CAM3] or [CAM4] button to select the unit which is to be operated. Press the [MENU] button for two seconds. The main menu is displayed. Press the [] or [] button to make the item to be selected blink. -
Page 4: When The Camera Is To Be Controlled From The Aw-Rp655 Controller
When controlling the AW-HE100, the G/L SETTING is not displayed. The G/L must be set using the camera menu of the AW-HE100. Changes made using the wireless remote control to the PEDESTAL (TOTAL) in the camera menu of the AW-HE100 are not reflected on the LCD panel display of the AW-RP655. - Page 5 Press other buttons, when in the camera menu mode, to exit the menu mode. Perform operations in order to again perform operations in the exited menu mode. It may be necessary to upgrade the software version in order to operate an AW-HE100 from a AW-RP655. Ask your dealer for details.
-
Page 6: When The Camera Is To Be Controlled From The Aw-Rp555 Controller
Each time the [EXT(AF)] button is pressed, These buttons cannot be used the mode switches between Auto Focus and for controlling the AW-HE100. Manual Focus. The [EXT(AF)] button lights when the camera is in the Auto Focus mode. Press one of the [1] to [5] buttons of [CONTROL] to select the unit which is to be operated. - Page 7 After the setting has been completed, press the [MENU] button for two seconds. The menu display is exited. It may be necessary to upgrade the software version in order to operate an AW-HE100 from a AW-RP555. Ask your dealer for details.
- Page 8 Basic menu operations When the camera is to be controlled from the AW-CB400/AW-RP400 controller The EXT command is allocated to the [OPTION SW] button to switch between Auto Focus and Manual Focus. Each time the [EXT] button is pressed, the focus mode switches between Auto Focus and Manual Focus. The following functions allocated to the [OPTION SW] are not available: DEF, WIP, HEATER/FAN, LAMP, OPTION, ND The following settings of the LCD menu do The TRACING MEMORY...
- Page 9 After the setting has been completed, press the [A] button of [OPTION SW] for two seconds. The menu display is exited. It may be necessary to upgrade the software version in order to operate an AW-HE100 from a AW-CB400/AW-RP400. Ask your dealer for details.
-
Page 10: Setting The Menu Items
Setting the menu items Setting the menu items 3 Tally lamp use selection [Tally: On, Off] (Factory setting: On = controlled) When the unit’s settings are to be selected, the menus are Using this item, set the function for having the tally lamp displayed on the monitor. - Page 11 Setting the menu items The operation for turning on the unit’s power can be Concerning initialization performed from any control device regardless of what When “Initialize” is selected, the initialization has been selected as this item’s setting. confirmation screen is displayed for about 10 seconds. ...
-
Page 12: Camera Setting Menu
Setting the menu items Camera Setting menu Daylight mode setting menu The shooting mode is selected on this menu. Daylight Mode Set Brightness Set 6-------- Camera Setting Color Set 7-------- G/L, Setup Set 8-------- Halogen 1-------- Other Set Fluorescent... - Page 13 Setting the menu items Return to the previous menu (main menu) Concerning initialization [Return] When “Initialize” is selected, the initialization confirmation screen is displayed for about 10 seconds. (Press the [] or [] button to make “Initialize” blink, and (User mode only) press the [] or [] button.) ...
- Page 14 Setting the menu items Brightness setting menu Brightness setting menu for halogen light User mode brightness setting menu mode, fluorescent light mode and daylight Brightness Set mode Picture Level 1-------- Brightness Set Shutter Mode Synchro 6-------- Step/Synchro...
-
Page 15: Color Setting Menu
Setting the menu items Color setting menu Color setting menu for halogen light mode, User mode color setting menu fluorescent light mode and daylight mode Color Set Color Set Chroma Level 1-------- White Bal 2-------- Chroma Level 1--------... - Page 16 Setting the menu items Genlock/color bar setting menu Sharpness setting menu (user mode only) The same settings established on the genlock/color bar setting menu are common to all the shooting modes The sharpness setting menu is provided in the user mode (halogen light mode, fluorescent light mode, daylight mode only.
- Page 17 Setting the menu items Other settings (Other Set) menu 4 Video aspect ratio selection [Aspect: ---, 16:9, 4:3] Apart from the gamma correction level selection (Gamma) (Factory setting: 16:9) setting, the settings of the Other Set menu are common to When “480i”...
- Page 18 Setting the menu items Other setting (Other Set) menu for the user At the 3 video format selection (Format) item, the video format is not switched immediately even when the setting is mode (Other Set) changed. The screen shown below on which to confirm the setting ...
-
Page 19: Menu Item Table
Menu item table Factory Factory Menu Item Menu Item setting setting Pan Tilt Head Setting Tally Camera Brightness Picture Level ±0 Landing Soft Setting Step Install Position Desktop <Daylight> Gain Auto Smart Picture Flip AGC Max Gain 18dB Flip Detect Angle Return Controller Color Set...
