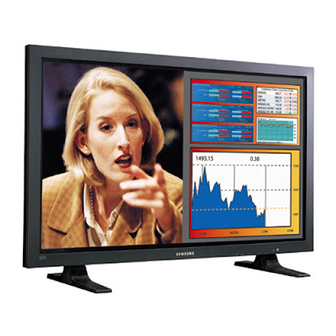

Samsung PPM42S3 - PPM - 42S3 Service Manual
  1. Manuals
  2. Brands
  3. Samsung Manuals
  4. Plasma TV
  5. PPM42S3
  6. Service manual
Samsung PPM42S3 - PPM - 42S3 Service Manual

Samsung PPM42S3 - PPM - 42S3 Service Manual

Plasma display tv
Hide thumbs Also See for PPM42S3 - PPM - 42S3:

Advertisement

Quick Links

See also: Installation Manual
1.
2.
3.
4.
5.

Advertisement

loading

Related Manuals for Samsung PPM42S3 - PPM - 42S3

Summary of Contents for Samsung PPM42S3 - PPM - 42S3

  • Page 1: Table Of Contents

    Specifications Alignment and Adjustments Exploded View and Parts List Service Item Schematic Diagrams...

  • Page 2: Specifications

    External Speaker (10W+10W) AUDIO Output Audio Output (L/R RCA) VIDEO S-VIDEO COMPONENT 1 - 480i / 480p / 720p / 1080i VIDEO Input COMPONENT 2/RGB2(PC) IN (BNC, 5P, 480i~1080i, VGA~XGA) RGB1(PC1) - D-SUB 15P Monitor Output (RCA) VIDEO Output Samsung Electronics...
  • Page 3 MEMO Samsung Electronics...

  • Page 4: Service Mode

    8. CXA2151 Release : 2003-07-12 T_NEW 50MWW_1001 2-1-2(B) B SERVICE MODE utton Operations in Menu Displays all menus UP/DOWN Key Cursor move to select items LEFT/RIGHT Key Enable to increase and decrease the data of the selected items Samsung Electronics...
  • Page 5 Alignment and Adjustments 2-1-3 Factory Data Initial Value Samsung Electronics...
  • Page 6 Alignment and Adjustments Samsung Electronics...
  • Page 7 Alignment and Adjustments Samsung Electronics...
  • Page 8 (See the block diagram given below) during W/B adjustment. Micom can memorize the four modes separately. However, under the current adjustment guidelines, DTV and PC are memorized with the same value during DVI adjustment and CVBS is memorized with a separate value. Samsung Electronics...
  • Page 9 Alignment and Adjustments 2-2-2 White Balance Coordinates by Mode Pedestal Level Low Light High Light measure point measure point Samsung Electronics...
  • Page 10 CN 812 Pin No. 1, 2 or CN812 CN806 CN 806 Pin No. 1, 2 Notes 1. When the SMPS-PCB is replaced, the Va, Vsc, Vs, Ve and Vset voltages must be checked and adjusted to the proper levels indicated on the panel sticker. Samsung Electronics...
  • Page 11 MEMO Samsung Electronics...

  • Page 12: Exploded View And Parts List

    Exploded View & Parts List 3. Exploded View & Parts List 3-1 PPM50H3QX/EDC You can search for the updated part code through ITSELF web site. URL : http://itself.sec.samsung.co.kr Code No Description;Specification Q’ty Remark BN96-00172Q ASSY COVER P-FRONT;50P3H(VMB),ASIA,HIPS M0003 BN64-00098N CABINET-FRONT;50P3 VMB,HIPS,HB,HF-1690H, T0003 S.N.A...

  • Page 13: Service Item

    Service Item 4. SERVICE ITEM You can search for the updated part code through ITSELF web site. URL : http://itself.sec.samsung.co.kr Loc. Code No Description;Specification Q’ty S.N.A D0254 AA32-00013B MODULE REMOCON;346HF5,38KHz,940mm,MESH,H T0074 BN59-00366A REMOCON;TM76,D61A,42,G6148,PPM42S3,EX T0055 BN64-00125A SCREEN-EMI,FITER;FILTER,50P3,T47%,1155+6 T0098 BN94-00494C ASSY PCB MISC-CONTROL;SPD-50P3H,D56A/D59...
  • Page 14 Service Item MEMO Samsung Electronics...

  • Page 15: Schematic Diagrams

    Schematic Diagrams 5. Schematic Diagrams 5-1 ANALOG 1 Analog - Digital Board This Document can not be used without Samsung’s authorization. Connector S-Video Video IN Video/S-Video Sound CXA2151Q IC103 COMPONENT1 Samsung Electronics...
  • Page 16 Schematic Diagrams 5-2 ANALOG 2 This Document can not be used without Samsung’s authorization. 3D COMB FILTER To DC FAN R246 R247 TILT SENSOR FAN PART 50" Samsung Electronics...
  • Page 17 Schematic Diagrams 5-3 ANALOG 3 This Document can not be used without Samsung’s authorization. From SMPS Board External Speaker BD701 MONITOR OUT VIDEO +12V_AMP MONITOR OUT SOUND Samsung Electronics...
  • Page 18 Schematic Diagrams 5-4 ANALOG 4 This Document can not be used without Samsung’s authorization. 74HCT573 74HCT573 Samsung Electronics...
  • Page 19 Schematic Diagrams 5-5 CONTROL This Document can not be used without Samsung’s authorization. AA32-00013B Samsung Electronics...
  • Page 20 Schematic Diagrams 5-6 DIGITAL 1 This Document can not be used without Samsung’s authorization. Analog - Digital board Connector 42 SD 42 HD 50,63 HD PC(D-SUB&DVI) SOUND Samsung Electronics...
  • Page 21 Schematic Diagrams 5-7 DIGITAL 2 This Document can not be used without Samsung’s authorization. BNC Connector PC D-SUB ANALOG EDID EPROM IC306 LF33CDT From SMPS board Samsung Electronics...
  • Page 22 Schematic Diagrams 5-8 DIGITAL 3 This Document can not be used without Samsung’s authorization. Samsung Electronics...
  • Page 23 Schematic Diagrams 5-9 DIGITAL 4 This Document can not be used without Samsung’s authorization. DVI Connector DIGITAL EDID EPROM Samsung Electronics...
  • Page 24 Schematic Diagrams 5-10 DIGITAL 5 This Document can not be used without Samsung’s authorization. Samsung Electronics 5-10...
  • Page 25 Schematic Diagrams 5-11 DIGITAL 6 This Document can not be used without Samsung’s authorization. USER EPROM (256K) Flash Memory B12 : 1204-002105 From Remote Control board RS232C OUT RS232C IN 5-11 Samsung Electronics...
  • Page 26 Schematic Diagrams 5-12 DIGITAL 7 This Document can not be used without Samsung’s authorization. Samsung Electronics 5-12...
  • Page 27 Schematic Diagrams 5-13 DIGITAL 8 This Document can not be used without Samsung’s authorization. LVDS Connector 5-13 Samsung Electronics...
  • Page 28 ELECTRONICS © Samsung Electronics Co., Ltd. May. 2004 This Service Manual is a property of Samsung Electronics Co.,Ltd. Printed in Korea Any unauthorized use of Manual can be punished under applicable AA82-01607A International and/or domestic law.
