Appendix D

HP NetServer LD Pro

Duplex Cabling

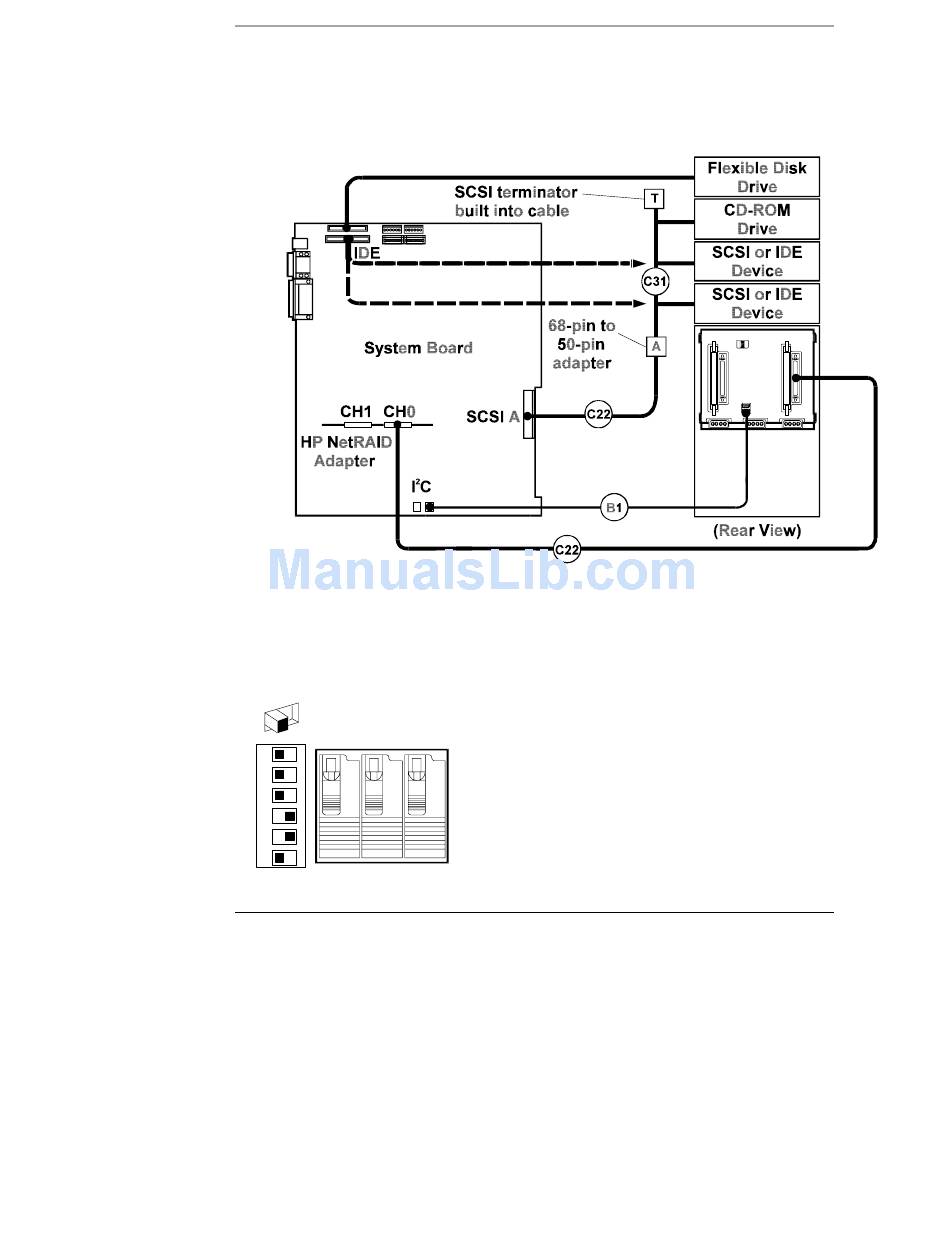

Figure D-3. Duplex, Disk-Array Cabling of HP NetServer LD Pro with

Default Switch Settings

On
Off
1
2
ID ID
3
1 0
4
5
6
152
HP NetRAID Adapter
These are the default SCSI switch settings for this
configuration. SCSI ID 2 is reserved for an optional
DAT (Digital Audio Tape) drive that can be
installed in upper shelf 3 or 4. The standard
CD-ROM drive is shipped with SCSI ID 5.
ID
3
Cabling Diagrams
