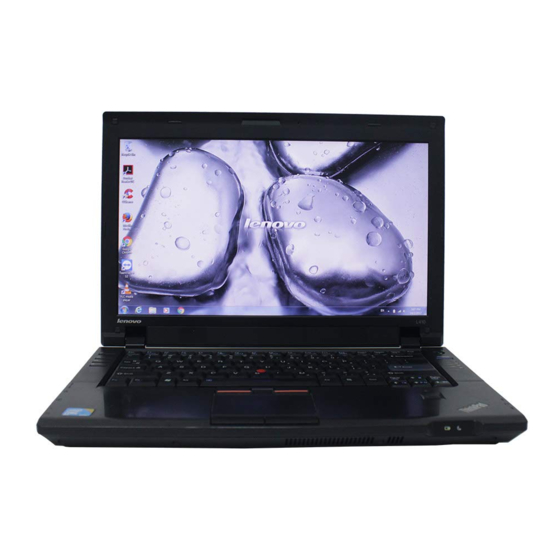

Lenovo ThinkPad L410 Hardware Maintenance Manual
  1. Manuals
  2. Brands
  3. Lenovo Manuals
  4. Laptop
  5. ThinkPad L410
  6. Hardware maintenance manual

Lenovo ThinkPad L410 Hardware Maintenance Manual

Hardware maintenance manual
Hide thumbs Also See for ThinkPad L410:
Table of Contents

Advertisement

Quick Links

See also: Troubleshooting Manual , Setup Manual
Hardware Maintenance Manual
ThinkPad SL410, L410, SL510, and L510

Advertisement

Table of Contents
loading

Related Manuals for Lenovo ThinkPad L410

Summary of Contents for Lenovo ThinkPad L410

  • Page 1 Hardware Maintenance Manual ThinkPad SL410, L410, SL510, and L510...
  • Page 2 Appendix A “Notices” on page 167. Sixth Edition (April 2012) © Copyright Lenovo 2009, 2012. LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant a General Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-35F-05925.

  • Page 3: Table Of Contents

    Checkout guide ....Chapter 8. Removing and replacing a System supporting the Lenovo ThinkVantage FRU ....61...
  • Page 4 1160 Keyboard ....Miscellaneous parts ... . 1170 Keyboard bezel ... . ac power adapters .

  • Page 5: About This Manual

    Notebook products. Use this manual along with the advanced diagnostic tests to troubleshoot problems effectively. Before servicing a ThinkPad notebook product, be sure to read all the information under Chapter 1 “Safety information” on page 1 and Chapter 2 “Important service information” on page 23. © Copyright Lenovo 2009, 2012...
  • Page 6 Hardware Maintenance Manual...

  • Page 7: Chapter 1. Safety Information

    • Reinstall all covers correctly before returning the machine to the customer. • Fan louvers on the machine help to prevent overheating of internal components. Do not obstruct fan louvers or cover them with labels or stickers. © Copyright Lenovo 2009, 2012...

  • Page 8: Electrical Safety

    Electrical safety Observe the following rules when working on electrical equipment. Important: • Use only approved tools and test equipment. Some hand tools have handles covered with a soft material that does not insulate you when working with live electrical currents. •...

  • Page 9: Safety Inspection Guide

    • If an electrical accident occurs: – Use caution; do not become a victim yourself. – Switch off power. – Send another person to get medical aid. Safety inspection guide The purpose of this inspection guide is to assist you in identifying potentially unsafe conditions. As each machine was designed and built, required safety items were installed to protect users and service technicians from injury.

  • Page 10: Grounding Requirements

    1. Use product-specific ESD procedures when they exceed the requirements noted here. 2. Make sure that the ESD protective devices you use have been certified (ISO 9000) as fully effective. When handling ESD-sensitive parts: • Keep the parts in protective packages until they are inserted into the product. •...
  • Page 11 DANGER DANGER DANGER DANGER DANGER DANGER Chapter 1 Safety information...
  • Page 12 DANGER Hardware Maintenance Manual...
  • Page 13 PERIGO PERIGO PERIGO Chapter 1 Safety information...
  • Page 14 PERIGO PERIGO PERIGO PERIGO PERIGO Hardware Maintenance Manual...
  • Page 15 DANGER DANGER DANGER DANGER DANGER Chapter 1 Safety information...
  • Page 16 DANGER DANGER DANGER VORSICHT VORSICHT Hardware Maintenance Manual...
  • Page 17 VORSICHT VORSICHT VORSICHT VORSICHT VORSICHT VORSICHT Chapter 1 Safety information...
  • Page 18 Hardware Maintenance Manual...
  • Page 19 Chapter 1 Safety information...
  • Page 20 Hardware Maintenance Manual...
  • Page 21 Chapter 1 Safety information...
  • Page 22 Hardware Maintenance Manual...

  • Page 23: Laser Compliance Statement (Multilingual Translations)

    Laser compliance statement (multilingual translations) The laser compliance statements in this section are provided in the following languages: • English • Arabic • Brazilian Portuguese • French • German • Hebrew • Japanese • Korean • Spanish • Traditional Chinese Chapter 1 Safety information...
  • Page 24 Hardware Maintenance Manual...
  • Page 25 Chapter 1 Safety information...
  • Page 26 Hardware Maintenance Manual...
  • Page 27 Chapter 1 Safety information...
  • Page 28 Hardware Maintenance Manual...

  • Page 29: Chapter 2. Important Service Information

    – “FRU identification for CTO, CMV, and GAV products” on page 25 Important: • Advise customers to contact the Lenovo Customer Support Center if they need any assistance in obtaining or installing any software fixes, drivers, and BIOS downloads. Telephone numbers for Lenovo Support are available at: http://www.lenovo.com/support/phone...

  • Page 30: Strategy For Replacing A Hard Disk Drive

    Dynamic Configure To Order (CTO) This provides the ability for a customer to configure a Lenovo solution from an eSite, and have this configuration sent to fulfillment, where it is built and shipped directly to the customer. The machine label, Product Entitlement Warehouse (PEW), eSupport, and the HMM will load these products as the 4-digit MT and 3-digit model, where model = “CTO”...

  • Page 31: Fru Identification For Cto, Cmv, And Gav Products

    = a “fixed part number”, not “CTO” (Example: 1829-F1U). • PEW can be accessed at the following Web site: http://www.lenovo.com/support/site.wss/document.do?lndocid=LOOK-WARNTY Select Warranty lookup. Input the MT and the Serial number and the list of key commodities will be returned in the PEW record under COMPONENT INFORMATION.
  • Page 32 Hardware Maintenance Manual...

  • Page 33: Chapter 3. General Checkout

    “What to do first” on page 27 • “Checkout guide” on page 28 – “System supporting the Lenovo ThinkVantage Toolbox program and the PC-Doctor for DOS diagnostics program” on page 28 – “System supporting the Lenovo diagnostics programs” on page 33 •...

  • Page 34: Checkout Guide

    System supporting the Lenovo ThinkVantage Toolbox program and the PC-Doctor for DOS diagnostics program ® The section provides information about ThinkPad computers that support the Lenovo ThinkVantage ® Toolbox program and the PC-Doctor for DOS diagnostics program. Some descriptions might not apply to your particular computer.
  • Page 35 Configuration utility for DOS. The utility is available on the following Web site: http://support.lenovo.com PC-Doctor cannot be used to test a device that is in the docking station, even if the computer supports the docking station.
  • Page 36 Diagnostics Interactive Tests Hardware Info Utility Quit F1=Help Run Normal Test Run Quick Test CPU/Coprocessor Systemboard Video Adapter Fixed Disks Diskette Drives Other Devices Communication Wireless LAN Advanced Memory Tests PC-DOCTOR 2.0 Copyright 2008 PC-Doctor, Inc. All Rights Reserved. Use the cursor keys and ESC to move in menus. Press ENTER to select. The options on the test menu are as follows: Diagnostics Interactive Tests...
  • Page 37 • The latest Lenovo ThinkVantage Toolbox is available at the following Web site: http://support.lenovo.com • To install the latest Lenovo ThinkVantage Toolbox on the computer, follow the instructions on the Web site. To run this program, do as follows: Windows 7: While the Windows operating system is running, press the ThinkVantage button.

  • Page 38: Fru Tests

    To run the test, click “Run Diagnostics” on the Rescue and Recovery main screen. FRU tests The following table shows the test for each FRU. Table 1. FRU tests Applicable test System board 1. Diagnostics ➙ CPU/Coprocessor 2. Diagnostics ➙ Systemboard 3.

  • Page 39: System Supporting The Lenovo Diagnostics Programs

    It also can be downloaded from http://www.lenovo.com/diags. To run the Lenovo Solution Center program, click Start ➙ Control Panel ➙ System and Security ➙ Lenovo - System Health and Diagnostics, and then follow the instructions on the screen.

  • Page 40: Uefi Diagnostic Program

    F12 key. 3. Press the Tab key to switch to the Application Menu window. 4. Use the arrow keys to select Lenovo Diagnostics and then press Enter. The main screen of the UEFI diagnostic program is displayed.

  • Page 41: Power System Checkout

    • If you have created the bootable diagnostic medium on a USB device, do the following: 1. Attach the USB device to the computer. 2. Turn on the computer. If the computer cannot be turned on, go to “Power system checkout” on page 35, and check the power sources.

  • Page 42: Checking Operational Charging

    2. Measure the output voltage at the plug of the ac adapter cable. See the following figure: Voltage (V dc) Ground (20V) Note: Output voltage of pin 2 of the ac adapter may differ from the one you are servicing. 3.

  • Page 43: Checking The Backup Battery

    Terminal Voltage (V dc) + 0 to + 16.8 Ground (-) 7(-) 6(-) 2(+) 1(+) 3. If the voltage is less than +11.0 V dc, the battery pack has been discharged. Note: Recharging will take at least 3 hours, even if the indicator does not turn on. If the voltage is still less than +11.0 V dc after recharging, replace the battery.
  • Page 44 Hardware Maintenance Manual...

  • Page 45: Chapter 4. Related Service Information

    In this case, you must use the Recovery Disc Set for the computer. Order the Recovery Disc Set and the hard disk drive at the same time so that you can recover the new hard disk © Copyright Lenovo 2009, 2012...
  • Page 46 For information on which discs to order, see http://www.lenovo.com/serviceparts-lookup.. The recovery disc set consists of the user instructions and the following set of DVDs to restore the computer to the original factory configuration.

  • Page 47: Passwords

    Attention: If the user HDP has been forgotten, check whether a master HDP has been set. If it has, it can be used for access to the hard disk drive. If no master HDP is available, neither Lenovo nor Lenovo authorized service technicians provide any services to reset either the user or the master HDP, or to recover data from the hard disk drive.

  • Page 48: How To Remove The Hard-Disk Password

    Attention: If User only mode is selected and the user HDP has been forgotten and cannot be made available to the service technician, neither Lenovo nor Lenovo authorized service technicians provide any services to reset the user HDPs or to recover data from the hard disk drive. The hard disk drive can be replaced for a scheduled fee.

  • Page 49: Power Management

    Power management To reduce power consumption, the computer has three power management modes: screen blank, sleep (standby in Windows XP), and hibernation. Screen blank mode If the time set on the “Turn off monitor” timer in the operating system expires, the LCD backlight turns off. To put the computer into screen blank mode, do as follows: 1.

  • Page 50: Hibernation Mode

    Hibernation mode In hibernation mode, the following occurs: • The system status, RAM, VRAM, and setup data are stored on the hard disk. • The system is powered off. Note: If the computer enters the hibernation mode while it is docked to the docking station, do not undock it before resuming normal operation.

  • Page 51: Numeric Error Codes

    Note: For a device not supported by diagnostic codes in the ThinkPad Notebooks, see the manual for that device. Numeric error codes Table 2. Numeric error codes Symptom or error (beeps, if any) FRU or action, in sequence 0187 System board. EAIA data access error—The access to EEPROM is failed.

  • Page 52: Error Messages

    Table 2. Numeric error codes (continued) FRU or action, in sequence Symptom or error (beeps, if any) 0270 1. Charge the backup battery for more than 8 hours Real-time clock error. by connecting the ac adapter. (two short beeps) 2. Replace the backup battery and run BIOS Setup Utility to reset the time and date.

  • Page 53: No-Beep Symptoms

    • If the LCD you are servicing has two or less visible defective pixels, it should not be considered faulty. However, if the LCD has three or more visible defective pixels, it will be deemed as defective by Lenovo and it should be replaced.

  • Page 54: Intermittent Problems

    Table 5. LCD-related symptoms FRU or action, in sequence Symptom or error No beep, power-on indicator on, and a blank LCD during System board. POST. • LCD backlight not working. 1. Reseat the LCD connectors. • LCD too dark. 2. LCD assembly. •...
  • Page 55 b. LCD assembly Chapter 4 Related service information...
  • Page 56 Hardware Maintenance Manual...

  • Page 57: Chapter 5. Status Indicators

    802.11n) is on, and the radio link is ready status for use. Blinking green: Data is being transmitted. Bluetooth wireless Green: Bluetooth wireless is on, and the radio status link is ready for use. Blinking green: Data is being transmitted. © Copyright Lenovo 2009, 2012...
  • Page 58 Table 6. Status indicators (continued) Indicator Meaning Device access Data is being read from or written to the hard disk drive. When this indicator is on, do not put the computer into sleep (standby) mode or turn off the computer. Note: Do not move the computer while this indicator is on.

  • Page 59: Chapter 6. Fn Key Combinations

    Change the camera settings and the setting of the microphone mute button. When you press Fn+F6, the camera setting window is opened. Note: For Windows XP models, the setting of the microphone mute button cannot be changed. © Copyright Lenovo 2009, 2012...
  • Page 60 Table 7. Fn key combinations (continued) Key combination Description Fn+F7 Apply a presentation scheme directly, with no need to start Presentation Director. To disable this function and use the Fn+F7 key combination for switching a display output location, start Presentation Director, and change the settings. Note: If the computer is a windows 7 model, it does not support presentation schemes, but the Fn+F7 combination is available for switching a display output location.
  • Page 61 Table 7. Fn key combinations (continued) Key combination Description Fn+Pause Has the same function as the Break key. Fn+cursor keys These key combinations work with Windows Media Player. Fn+down arrow key works for the Play or Pause button, Fn+up arrow key for the Stop button, Fn+right arrow key for the Next Track button, and Fn+left arrow key for the Previous Track button.
  • Page 62 Hardware Maintenance Manual...

  • Page 63: Chapter 7. Fru Replacement Notices

    CRU; and (2) you may be charged for the replacement CRU if Lenovo does not receive the defective part within thirty (30) days of your receipt of the replacement CRU. See your Lenovo Limited Warranty documentation for full details.

  • Page 64: Retaining Serial Numbers

    If you replace the system board, you must restore the serial number of the system unit to its original value. Before replacing the system board, save the original serial number by doing the following: 1. Install the LENOVO ThinkPad Hardware Maintenance Diskette Version 1.76 or later, and restart the computer.

  • Page 65: Retaining The Uuid

    When you replace the system board, you must set the UUID on the new system board as follows: 1. Install the LENOVO ThinkPad Hardware Maintenance Diskette Version 1.76 or later, and restart the computer. 2. From the main menu, select 4. Assign UUID. A new UUID is created and written. If a valid UUID already exists, it is not overwritten.
  • Page 66 If the system board is being replaced, try to read the ECA information from the old system board and transfer the information to the new system. If the system board is inoperable, this will not be possible. Hardware Maintenance Manual...

  • Page 67: Chapter 8. Removing And Replacing A Fru

    CRU; and (2) you may be charged for the replacement CRU if Lenovo does not receive the defective part within thirty (30) days of your receipt of the replacement CRU. See your Lenovo Limited Warranty documentation for full details.
  • Page 68 The only exception to this is if the battery pack is physically damaged or a customer is reporting a possible safety issue. If Lenovo ThinkVantage Toolbox or Lenovo System Toolbox is not installed in the computer, the customer should download this program before a non-physically damaged battery pack is replaced. Note that the replacement of a physically damaged battery pack is not covered by the warranty.

  • Page 69: 1020 Expresscard Blank Bezel And Media Card Blank Bezel

    1020 ExpressCard blank bezel and Media Card blank bezel Removal steps of ExpressCard blank bezel When you press the ExpressCard blank bezel , it pops out When installing: Make sure that the bezel is correctly oriented as shown in this figure. Chapter 8 Removing and replacing a FRU...

  • Page 70: 1030 Optical Drive Or Travel Cover

    Removal steps of Media Card blank bezel When you press the Media Card blank bezel , it pops out When installing: Make sure that the bezel is correctly oriented as shown in the following figure. 1030 Optical drive or travel cover For access, remove this FRU: •...

  • Page 71: 1040 Thermal Cover

    Removal steps of optical drive or travel cover Step Screw (quantity) Color Torque Black 0.181 Nm M2 × 8 mm, wafer-head, nylon-coated (1) (1.85 kgfcm) 1040 Thermal cover For access, remove this FRU: • “1010 Battery pack” on page 61 Chapter 8 Removing and replacing a FRU...

  • Page 72: 1050 Hard Disk Drive (Hdd) Assembly

    Removal steps of thermal cover Note: Loosen the screws Attention: Do not touch or apply any excessive force to the fan motor located in the slot. It might cause damage to the fan assembly or the computer to mulfunction. 1050 Hard disk drive (HDD) assembly For access, remove these FRUs in order: •...

  • Page 73: 1060 Dimm

    Removal steps of HDD assembly When installing: Make sure that the HDD is attached firmly. When installing: Do not apply excessive force to the HDD bracket . To do so, you might bend or break it. 1060 DIMM For access, remove these FRUs in order: Chapter 8 Removing and replacing a FRU...

  • Page 74: 1070 Fan Assembly

    • “1010 Battery pack” on page 61 • “1040 Thermal cover” on page 65 Removal steps of DIMM Note: If only one DIMM is used on the computer you are servicing, the card must be installed in SLOT-0 ( the lower slot), but not in SLOT-1 ( : the upper slot).
  • Page 75 Attention: • Do not handle the fan roughly. Improper handling of the fan can cause distortion or deformation and imperfect contact with components. • Do not touch or apply any excessive force to the fan motor. It might cause damage to the fan assembly or the computer to mulfunction.
  • Page 76 For ThinkPad SL410 and L410: Notes: • Number of the screws in step differs by models. • Step is only for the models with 15.6-inch widescreen. For models with 14.0-inch widescreen, skip step Step Screw (quantity) Color Torque M2 × 4 mm, wafer-head, nylon-coated (1) Silver 0.181 Nm (1.85 kgfcm)

  • Page 77: 1080 Cpu

    For discrete fan assembly: For integrated fan assembly: 1080 CPU For access, remove these FRUs in order: • “1010 Battery pack” on page 61 • “1040 Thermal cover” on page 65 • “1070 Fan assembly” on page 68 Attention: The CPU is extremely sensitive. When you service the CPU, avoid any kind of rough handling. Chapter 8 Removing and replacing a FRU...

  • Page 78: 1090 Sim Slot Cover

    Removal steps of CPU Rotate the head of the screw in the direction shown by arrow to release the lock, then remove the CPU When installing: Place the CPU on the CPU socket, and then rotate the head of the screw in the direction shown by arrow to secure the CPU.
  • Page 79 Removal steps of SIM slot cover Note: Loosen the screw Some models in this product might have a SIM card that the customer has been installed. If the computer you are servicing has a SIM card, remove it before you start the servicing. After you finish the servicing, make sure that you insert the card back into the slot firmly.

  • Page 80: 1100 Wireless Wan Slot Cover And Pci Express Mini Card For Wireless Wan

    1100 Wireless WAN slot cover and PCI Express Mini Card for wireless For access, remove this FRU: • “1010 Battery pack” on page 61 Removal steps of wireless WAN slot cover and PCI Express Mini Card for wireless WAN Note: Loosen the screw Hardware Maintenance Manual...

  • Page 81: Step Screw (Quantity)

    In step , unplug the jacks by using the removal tool antenna RF connector (P/N: 08K7159) or pick the connectors with your fingers and gently unplug them in the direction of the arrow. When installing: Plug the red cable into the jack labeled MAIN , and the blue cable into the jack labeled AUX on the card.

  • Page 82: 1110 Palm Rest Assembly With Cables

    1110 Palm rest assembly with cables For access, remove these FRUs in order: • “1010 Battery pack” on page 61 • “1030 Optical drive or travel cover” on page 64 Note: In models with the fingerprint reader, the sensor is attached to the palm rest FRU. If the fingerprint reader has any defects, you can replace it by the procedures given in this section, which are the same for a palm rest with or without a fingerprint reader.

  • Page 83: Chapter 8 . Removing And Replacing A Fru

    Installation of palm rest assembly with cables When installing: 1. Attach the cables to the system board firmly. 2. Attach the palm rest so that the two small projections of the palm rest firmly fit into the guide holes of the keyboard bezel as shown in this figure. Chapter 8 Removing and replacing a FRU...

  • Page 84: 1120 Pci Express Mini Card For Wireless Lan

    3. Push the front side of the palm rest until it clicks into place. 4. Close the LCD cover and turn the computer over. Then fasten the screws to secure the palm rest. 1120 PCI Express Mini Card for wireless LAN For access, remove these FRUs in order: •...
  • Page 85 Removal steps of PCI Express Mini Card for wireless LAN In step , unplug the jacks by using the removal tool antenna RF connector (P/N: 08K7159) or pick the connectors with your fingers and gently unplug them in the direction of the arrow. Step Screw (quantity) Color...

  • Page 86: 1130 Backup Battery

    1130 Backup battery For access, remove these FRUs in order: • “1010 Battery pack” on page 61 • “1030 Optical drive or travel cover” on page 64 • “1110 Palm rest assembly with cables” on page 76 DANGER Use only the battery specified in the parts list for your computer. Any other battery could ignite or explode.

  • Page 87: 1150 Media Card Reader Slot Board And Media Card Reader Cable Assembly

    Removal steps of Bluetooth daughter card Step Screw (quantity) Color Torque Black 0.181 Nm M2 × 3 mm, wafer-head, nylon-coated (1) (1.85 kgfcm) When installing: Make sure that the connector on the bottom side of the card is attached firmly to the system board. 1150 Media Card Reader slot board and Media Card Reader cable assembly For access, remove these FRUs in order:...
  • Page 88 Removal steps of Media Card Reader slot board and Media Card Reader cable assembly When installing: Make sure that the Media Card Reader cable assembly is attached firmly to the system board and the Media Card Reader slot board. Hardware Maintenance Manual...

  • Page 89: 1160 Keyboard

    Step Screw (quantity) Color Torque M2 × 3 mm, wafer-head, nylon-coated (2) Black 0.181 Nm (1.85 kgfcm) 1160 Keyboard For access, remove these FRUs in order: • “1010 Battery pack” on page 61 • “1030 Optical drive or travel cover” on page 64 •...
  • Page 90 Removal steps of keyboard Step Screw (quantity) Color Torque Black 0.181 Nm M2 × 5 mm, wafer-head, nylon-coated (1) (1.85 kgfcm) Step Screw (quantity) Color Torque M2 × 3 mm, wafer-head, nylon-coated (1) Black 0.181 Nm (1.85 kgfcm) 0.181 Nm M2 ×...

  • Page 91: 1170 Keyboard Bezel

    When installing the keyboard, do as follows: Installation of the keyboard 1. Attach the connectors. 2. Attach the keyboard so that the keyboard edge is under the frame as shown in the following figure. 3. Gently press the keys with your palms and slightly slide the keyboard toward you until it snaps into position.
  • Page 92 • “1070 Fan assembly” on page 68 • “1100 Wireless WAN slot cover and PCI Express Mini Card for wireless WAN” on page 74 • “1110 Palm rest assembly with cables” on page 76 • “1120 PCI Express Mini Card for wireless LAN” on page 78 •...

  • Page 93: 1180 Lcd Unit

    Step Screw (quantity) Color Torque M2 × 3 mm, wafer-head, nylon-coated (2) Black 0.181 Nm (1.85 kgfcm) When installing: Make sure that the connectors are attached firmly to the system board. 1180 LCD unit For access, remove these FRUs in order: •...
  • Page 94 • “1030 Optical drive or travel cover” on page 64 • “1100 Wireless WAN slot cover and PCI Express Mini Card for wireless WAN” on page 74 • “1110 Palm rest assembly with cables” on page 76 • “1120 PCI Express Mini Card for wireless LAN” on page 78 •...
  • Page 95 For ThinkPad SL510 and L510: For ThinkPad SL410 and L410: When installing: Make sure that the cables are attached to the cable guides firmly. Attention: When you route the cables, make sure that they are not subjected to any tension. Tension could cause the cables to be damaged by the cable guides, or a wire to be broken.
  • Page 96 For ThinkPad SL510 and L510: For ThinkPad SL410 and L410: Step Screw (quantity) Color Torque M2.5 × 6.5 mm, wafter-head, nylon-coated (4) Black 0.392 Nm (4 kgfcm) Hardware Maintenance Manual...

  • Page 97: 1190 Top Shielding Assembly

    1190 Top shielding assembly For access, remove these FRUs in order: • “1010 Battery pack” on page 61 • “1030 Optical drive or travel cover” on page 64 • “1100 Wireless WAN slot cover and PCI Express Mini Card for wireless WAN” on page 74 •...
  • Page 98 Removal steps of top shielding assembly For ThinkPad SL510 and L510: Step Screw (quantity) Color Torque M2 × 3 mm, wafer-head, nylon-coated (3) Black 0.181 Nm (1.85 kgfcm) Black 0.181 Nm M2 × 5 mm, wafer-head, nylon-coated (4) (1.85 kgfcm) For ThinkPad SL410 and L410: Hardware Maintenance Manual...

  • Page 99: 1200 System Board Assembly

    1200 System board assembly • To identify the system board originally installed in your computer, go to PEW at the following web site: http://www.lenovo.com/support/site.wss/document.do?lndocid=LOOK-WARNTY Select Warranty Lookup. Input the machine type and the serial number. Use the system board listed on PEW.
  • Page 100 • “1090 SIM slot cover” on page 72 • “1100 Wireless WAN slot cover and PCI Express Mini Card for wireless WAN” on page 74 • “1110 Palm rest assembly with cables” on page 76 • “1120 PCI Express Mini Card for wireless LAN” on page 78 •...
  • Page 101 For ThinkPad SL410 and L410 discrete models: For ThinkPad SL510 and L510 integrated models: For ThinkPad SL510 and L510 discrete models: Chapter 8 Removing and replacing a FRU...
  • Page 102 Removal steps of system board assembly For ThinkPad SL510 and L510: Step Screw (quantity) Color Torque M2 × 5 mm, wafer-head, nylon-coated (4) Black 0.181 Nm (1.85 kgfcm) For ThinkPad SL410 and L410: Step Screw (quantity) Color Torque M2 × 5 mm, wafer-head, nylon-coated (2) Black 0.181 Nm (1.85 kgfcm)

  • Page 103: 1210 Usb Connector Board And Usb Cable Assembly

    For ThinkPad SL510 and L510: For ThinkPad SL410 and L410: When installing: Make sure that the connectors are attached firmly to the system board. 1210 USB connector board and USB cable assembly For access, remove these FRUs in order: Chapter 8 Removing and replacing a FRU...
  • Page 104 • “1010 Battery pack” on page 61 • “1040 Thermal cover” on page 65 • “1050 Hard disk drive (HDD) assembly” on page 66 • “1100 Wireless WAN slot cover and PCI Express Mini Card for wireless WAN” on page 74 •...

  • Page 105: 1220 Dc-In Cable And Base Cover

    For ThinkPad SL510 and L510: For ThinkPad SL410 and L410: 1220 DC-in cable and base cover For access, remove these FRUs in order: • “1010 Battery pack” on page 61 • “1020 ExpressCard blank bezel and Media Card blank bezel” on page 63 •...
  • Page 106 Removal steps of DC-in cable and base cover For ThinkPad SL510 and L510: Step Screw (quantity) Color Torque M2 × 3 mm, wafer-head, nylon-coated (2) Black 0.181 Nm (1.85 kgfcm) For ThinkPad SL410 and L410: Step Screw (quantity) Color Torque M2 ×...
  • Page 107 For ThinkPad SL510 and L510: For ThinkPad SL410 and L410: Note: Applying labels to the base cover The new base cover FRU is shipped with a kit containing labels of several kinds. Note: If the Windows Certificate of Authentication label (COA) is attached to a part that is replaced, return the old part with the label attached to the customer, or provide a letter to the customer stating what the label was originally on the system and what the label part number, serial number, and product key were.
  • Page 108 SIM ICC ID label Brazil Anatel BG label Israel label (SIM model) Brazil Anatel Bluetooth label For some models, you need to apply two FCC labels. Check the old base cover; if it has two FCC labels, apply both to the new base cover. For the location of each label, refer the following figures: For ThinkPad SL510 and L510: Hardware Maintenance Manual...

  • Page 109: 2010 Lcd Front Bezel

    For ThinkPad SL410 and L410: 2010 LCD front bezel For access, remove these FRUs in order: • “1010 Battery pack” on page 61 • “1100 Wireless WAN slot cover and PCI Express Mini Card for wireless WAN” on page 74 •...

  • Page 110: 2020 Speaker Assembly

    When installing: Make sure that all the latches are attached firmly. Then secure the bezel with the screws. 2020 Speaker assembly For access, remove these FRUs in order: • “1010 Battery pack” on page 61 • “1100 Wireless WAN slot cover and PCI Express Mini Card for wireless WAN” on page 74 •...

  • Page 111: 2030 Integrated Camera

    Step Screw (quantity) Color Torque Black 0.181 Nm M2 × 3 mm, wafer-head, nylon-coated (2) (1.85 kgfcm) 2030 Integrated camera For access, remove these FRUs in order: • “1010 Battery pack” on page 61 • “1100 Wireless WAN slot cover and PCI Express Mini Card for wireless WAN” on page 74 •...
  • Page 112 • “1100 Wireless WAN slot cover and PCI Express Mini Card for wireless WAN” on page 74 • “1110 Palm rest assembly with cables” on page 76 • “1120 PCI Express Mini Card for wireless LAN” on page 78 • “1160 Keyboard”...

  • Page 113: 2050 Hinges, Lcd Panel, Lcd Cable, And Lcd Rear Cover Assembly

    For ThinkPad SL410 and L410 : When installing: Route the cables as shown in this figure. When you route the cables, make sure that they are not subjected to any tension. Tension could cause the cables to be damaged by the cable guides, or a wire to be broken. 2050 Hinges, LCD panel, LCD cable, and LCD rear cover assembly For access, remove these FRUs in order: •...
  • Page 114 • “1160 Keyboard” on page 83 • “1170 Keyboard bezel” on page 85 • “1180 LCD unit” on page 87 • “2010 LCD front bezel” on page 103 • “2020 Speaker assembly” on page 104 • “2030 Integrated camera” on page 105 •...
  • Page 115 Torque Step Screw (quantity) Color M2 × 3 mm, small-head, nylon-coated (4) Black 0.181 Nm (1.85 kgfcm) Chapter 8 Removing and replacing a FRU...
  • Page 116 When installing: Make sure that the LCD connector is attached firmly. Hardware Maintenance Manual...

  • Page 117: Chapter 9. Locations

    Power status indicators Note: For the description of each indicator, see Chapter 5 “Status indicators” on page 51. Fingerprint reader (for some models) Touch pad buttons Touch pad TrackPoint buttons TrackPoint pointing stick UltraNav Volume control buttons © Copyright Lenovo 2009, 2012...

  • Page 118: Rear View

    Rear view Stereo headphone jack or Combo audio jack Microphone jack HDMI port or DisplayPort connector RJ-45 (Ethernet) connector eSATA/USB combo connector External monitor connector Security keyhole Note: In some models, the security keyhole is located on the right side of the computer. USB connector Hardware Maintenance Manual...

  • Page 119: Bottom View

    Bottom view Battery pack Battery pack latch Docking connector (for some models) Thermal slot (DIMM, hard disk drive, fan assembly) ExpressCard slot Wireless WAN card slot SIM slot Chapter 9 Locations...
  • Page 120 Hardware Maintenance Manual...

  • Page 121: Chapter 10. Parts List

    CRU, Lenovo will ship the CRU to you. CRU information and replacement instructions are shipped with your product and are available from Lenovo at any time upon request. You may find a list of CRUs in the publications that ship with your product or at http://www.lenovo.com/CRUs. You may be required to return the defective part that is replaced by the CRU.

  • Page 122: Overall

    • FRUs marked with are available as options. Overall Hardware Maintenance Manual...
  • Page 123 Table 8. Parts list—Overall No. FRU (Overall) FRU no. LCD unit (see “LCD FRUs” on page 142.) Keyboard bezel assembly for SL410 and L410 60Y4138 04W0371 Keyboard bezel assembly for SL510 and L510 60Y4140 04W0372 60Y4359 Top shielding assembly for SL410 and L410 Top shielding assembly for SL510 and L510 60Y4360 55Y3712...
  • Page 124 Table 8. Parts list—Overall (continued) No. FRU (Overall) FRU no. • 2847-CTO, 22x, 33x, 34x, 35x, 39x, 44x, 45x, 46x, 47x, 48x, 49x, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 3Lx, 4Jx, 3Mx, 3Qx, 4Xx, 4Yx, 4Zx, 54x, 55x, 56x, 57x, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Jx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Sx, 5Tx, 5Vx, 5Xx, 5Yx, 5Zx, 62x, 63x, 64x, 65x, 66x, 67x, 4Nx, 4Px, 4Qx, 4Rx, 4Tx, 4Vx, 25x, 27x, 28x, 2Cx, 2Ex, 2Fx, 2Jx, 2Kx, 2Lx, 2Px, 2Qx, 2Sx, 2Tx, 72x, 73x, 74x, 75x, 76x, 77x, 78x, 79x, 7Ax, 7Dx, 7Ex, 7Fx, R3x, R6x, R7x,...
  • Page 125 Table 8. Parts list—Overall (continued) No. FRU (Overall) FRU no. • 2875-CTO, 2Dx, 2Ex, 2Lx, 2Vx, 2Xx, 32x, 33x, 39x, 3Ax, 3Px, 3Yx, 43x, 46x, 47x, 48x, 4Ax, 4Fx, 4Gx, 4Hx, 4Nx, 4Px, 4Rx, 54x, 55x, 57x, 59x, 5Bx, R2x, R3x, R7x, R8x •...
  • Page 126 Table 8. Parts list—Overall (continued) No. FRU (Overall) FRU no. 4Wx, 4Xx, 4Yx, 52x, 53x, 56x, 57x, 58x, 59x, 5Ax, 5Bx, 5Cx, R4x, R5x, R6x, R8x, R9x, RAx, RBx, RCx, RDx, RFx, RGx, RHx, RJx • 2931-CTO, 25x, 26x, 27x, 22x •...
  • Page 127 Table 8. Parts list—Overall (continued) No. FRU (Overall) FRU no. 42T4751 Battery pack, 6 cell Li-ion (2.2 Ah) • 0616-CTO, 22x, 25x, 26x, 27x, 28x, 29x, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx 42T4753 • 2842-CTO, 22x, 35x, 36x, 37x, 39x, 3Bx, 3Dx, 3Qx, 42x, 43x, 45x, 47x, 48x, 49x, 4Ax, 4Bx, 42T4755 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 42T4848...
  • Page 128 Table 8. Parts list—Overall (continued) No. FRU (Overall) FRU no. 42T4702 Battery pack, 6 cell Li-ion (2.4 Ah) • 0616-CTO 42T4704 • 2842-CTO 42T4706 • 2847-CTO 42T4849 • 2873-CTO • 2874-CTO • 2875-CTO • 2931-CTO • 5072-CTO 42T4731 Battery pack, 6 cell Li-ion (2.6 Ah) •...
  • Page 129 Table 8. Parts list—Overall (continued) No. FRU (Overall) FRU no. 41W0747 DVD-RAM/RW drive • 0616-CTO, 22x, 25x, 26x, 27x, 28x, 29x, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx 75Y5029 • 2842-CTO, 22x, 34x, 35x, 36x, 37x, 39x, 3Bx, 3Dx, 3Px, 3Qx, 42x, 43x, 45x, 47x, 48x, 49x, 41W0751 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx, 4Xx, 4Yx, 4Zx, 52x, 53x, 54x, 55x, 56x, 57x, 58x, 59x, 5Ax, 5Bx, 5Cx,...
  • Page 130 Table 8. Parts list—Overall (continued) No. FRU (Overall) FRU no. 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 6Zx, 72x, 73x, 74x, 75x, 76x, 77x, 78x, 79x, 7Ax, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 7Mx, 7Nx, 7Px, 7Qx, 7Rx, 7Sx, 7Tx, 7Ux, 7Vx, 7Wx, 7Xx, 7Yx, 7Zx, 82x...
  • Page 131 Table 8. Parts list—Overall (continued) No. FRU (Overall) FRU no. 2Yx, 2Zx, 7Kx, 7Lx, 7Mx, 7Nx, 6Nx, 6Px, 6Qx, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 6Zx, 92x, 93x, 94x, 95x, 96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, 9Fx, 9Gx, 9Hx, 9Jx, 9Kx, 9Lx, 9Mx, 9Nx, 9Px, 9Qx, 9Rx, 9Sx, 9Tx, 9Ux, 9Vx, 9Wx, 9Xx, 9Yx, 9Zx, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, A2x, A3x, A4x, A5x, A6x, A7x, A8x, A9x, AAx, ABx, ACx, ADx, AEx, AFx, 7Px, 7Qx, 7Rx, 7Sx, AGx, AHx, AJx, AKx, ALx, AMx, ANx, APx, AQx, ARx, ASx, 7Tx, 7Ux,...
  • Page 132 Table 8. Parts list—Overall (continued) No. FRU (Overall) FRU no. 41W0775 SATA hard disk drive, 160 GB, 5,400 rpm • 0616-CTO 41W0767 • 2842-CTO, 34x, 3Px, 3Fx, 3Gx, 46x, 3Rx, 5Gx, ALx, GRx, H6x 41W0783 • 2847-CTO, 33x, 37x, 38x, 39x, 3Lx, 4Jx, 52x, 53x, 24x, 25x, 26x, 27x, 2Bx, 2Cx, 2Dx, 2Ex, 75Y5021 2Jx, 2Kx, 7Fx, QDx, QGx, 8Qx, 8Tx, 2Wx, 9Kx, 9Mx, APx, BBx 75Y5031...
  • Page 133 Table 8. Parts list—Overall (continued) No. FRU (Overall) FRU no. 41W0779 SATA hard disk drive, 320 GB, 5,400 rpm • 0616-CTO, 22x, 25x, 26x, 27x, 28x, 2Cx, 2Dx 41W0771 • 2842-CTO, 22x, 35x, 36x, 37x, 39x, 3Dx, 3Qx, 42x, 45x, 47x, 49x, 4Ax, 4Bx, 4Dx, 4Fx, 41W0787 4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Qx, 4Rx, 4Sx, 4Tx, 4Vx, 4Wx, 55x, 58x, 59x, 5Ax, 3Hx, 3Sx, 75Y5025...
  • Page 134 Table 8. Parts list—Overall (continued) No. FRU (Overall) FRU no. 60Y4739 SATA hard disk drive, 320 GB, 7,200 rpm • 0616-CTO 60Y4737 • 2842-CTO, 43x, 4Gx, 5Mx, 5Sx, 5Tx, C7x, C8x, C9x, CAx, CBx, DDx, DFx, F8x, F9x, FJx, 60Y4809 FKx, FLx, GLx, GMx, GNx, GPx, GYx, GZx, H2x, H3x, H4x, H5x, HFx, HGx, HHx, HYx, 60Y4819 HZx, J2x, J3x, J4x...
  • Page 135 Table 8. Parts list—Overall (continued) No. FRU (Overall) FRU no. Ericsson F3507g other-Wireless WAN card 43Y6513 • 0616-CTO • 2842-CTO, 3Tx, 3Vx, 8Rx, AHx, AKx, 26x, 28x, 2Bx, 2Dx, B8x, BBx, DHx, DKx, FMx, FNx, FPx, FQx, FSx, FTx, FUx, FVx •...
  • Page 136 Table 8. Parts list—Overall (continued) No. FRU (Overall) FRU no. • 2847-CTO, 22x, 33x, 34x, 37x, 38x, 39x, 3Dx, 3Ex, 42x, 43x, 45x, 46x, 48x, 49x, 4Ax, 4Ex, 4Fx, 4Gx, 4Hx, 3Kx, 3Lx, 4Jx, 3Nx, 3Px, 3Qx, 4Xx, 4Yx, 4Zx, 52x, 53x, 54x, 55x, 56x, 57x, 58x, 59x, 5Ex, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Sx, 5Tx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 72x, 73x, 74x, 75x, 76x, 77x, 78x, 79x, 7Bx, 7Ex, 7Fx,...
  • Page 137 Table 8. Parts list—Overall (continued) No. FRU (Overall) FRU no. 43Y6553 ThinkPad 11 b/g/n Wireless LAN Mini-PCI Express Adapter II (1x2 BGN) • 0616-CTO, 22x, 25x 60Y3177 • 2842-CTO, 22x, 34x, 3Px, 4Ux, 4Vx, 4Wx, 4Xx, 4Yx, 4Zx, 52x, 53x, 54x, 55x, 56x, 57x, 58x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 44x, 3Gx, 46x, 3Rx, 66x, 67x, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 6Zx, 72x, 73x, 74x, 75x, 76x, 77x, 78x, 7Ex, 87x, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Dx,...
  • Page 138 Table 8. Parts list—Overall (continued) No. FRU (Overall) FRU no. 7Lx, 7Mx, 7Nx, 6Nx, 6Px, 6Qx, 6Rx, 6Sx, 6Tx, 6Yx, 6Zx, 92x, 93x, 94x, 95x, 96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, 9Gx, 9Hx, 9Jx, 9Lx, 9Mx, 9Nx, 9Px, 9Qx, 9Rx, 9Sx, 9Tx, 9Ux, 9Vx, 9Wx, 9Xx, 9Yx, 9Zx, 3Zx, A2x, A3x, A4x, ACx, AEx, AFx, 7Qx, 7Rx, 7Sx, AJx, AKx, ALx, ANx, APx, AQx, ARx, ASx, 7Ux, AZx, B3x, B4x, BGx, BHx, BJx, BKx, BMx, BNx, BPx, BSx, BTx, BUx, BWx, BXx, BYx, BZx, C2x, C9x, CJx, CKx, CLx, CMx, CNx, CPx...
  • Page 139 Table 8. Parts list—Overall (continued) No. FRU (Overall) FRU no. • 2874-CTO, 32x, 33x, 34x, 35x, 36x, 37x, 3Gx, 3Kx, 3Lx, 3Mx, 4Bx, 4Cx, 4Jx, 6Dx, 6Nx, 6Px, 6Vx, 6Wx, 6Xx, 6Zx, 72x, 73x, 74x, 7Tx, 7Ux • 2875-CTO, 25x, 28x, 29x, 2Ax, 2Wx, 2Xx, 39x, 4Jx, 4Kx, 4Lx, 4Nx, 4Ux, 4Vx, 4Wx •...
  • Page 140 Table 8. Parts list—Overall (continued) No. FRU (Overall) FRU no. 43R0795 CPU assembly, Intel Celeron processor 900 (2.2 GHz) R-0 • 0616-CTO • 2842-CTO • 2847-CTO • 2873-CTO • 2874-CTO, 32x, 3Bx, 3Gx, 3Mx, 4Jx • 2875-CTO, 26x, 27x, 2Cx, 2Qx, 3Ax •...
  • Page 141 Table 8. Parts list—Overall (continued) No. FRU (Overall) FRU no. 63Y2060 CPU assembly, Intel Core™ 2 Duo mobile processor P7450 (2.13 GHz) R-0 • 0616-CTO • 2842-CTO, ABx, AEx, AZx, B2x, BFx, BSx, BTx, BWx, BXx • 2847-CTO, RWx, 8Cx, 8Jx, 8Kx, 8Lx, 8Mx, 8Wx, 7Zx, 7Xx, 6Wx, 6Xx, 9Lx, A5x, A6x, A7x, A8x, AAx, ABx, AGx, AHx, AWx, BSx, BTx, C3x, C4x, C5x, C6x, C8x, CAx, CBx, CCx, CDx, CEx, CFx •...
  • Page 142 Table 8. Parts list—Overall (continued) No. FRU (Overall) FRU no. 43N7739 CPU assembly, Intel Core 2 Duo mobile processor T5870 (2.0 GHz) M-0 • 0616-CTO • 2842-CTO, 34x, 3Bx, 3Px, 42x, 43x, 45x, 4Hx, 4Jx, 4Mx, 4Px, 4Qx, 4Tx, 4Ux, 4Vx, 4Yx, 4Zx, 52x, 53x, 54x, 57x, 59x, 5Ax, 5Bx, 5Cx, 33x, 3Fx, 3Gx, 46x, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 5Gx, 5Hx, 5Lx, 5Mx, 5Nx, 5Px, 5Yx, 5Zx, 64x, 66x, 67x, 68x, 69x, 6Ax, 6Bx, 6Px, 6Qx, 6Rx, 6Sx, 6Tx, 6Ux, 7Ex, 23x, 24x, 7Px, 7Qx, 7Rx, 7Sx, 7Yx, 7Zx, 84x, 87x, 88x, 89x, 8Ax,...
  • Page 143 Table 8. Parts list—Overall (continued) No. FRU (Overall) FRU no. 45M2817 N CPU assembly, Intel Core 2 Duo mobile processor T6670 (2.2 GHz) R-0 • 0616-CTO, 22x, 25x, 26x, 2Cx, 2Fx, 2Gx, 2Kx • 2842-CTO, 22x, 35x, 36x, 37x, 39x, 3Qx, 47x, 48x, 49x, 4Ax, 4Kx, 4Lx, 4Nx, 4Rx, 4Sx, 4Wx, 4Xx, 55x, 56x, 58x, 5Dx, 44x, 3Hx, 5Ex, 5Fx, 5Jx, 5Qx, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 62x, 63x, 65x, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Vx, 6Wx, 6Xx, 6Yx, 6Zx, 72x, 7Bx, 7Tx, 7Ux, 7Wx, 7Xx, 82x, 83x, 85x, 86x, 8Bx, 8Cx, 8Jx, 8Kx, 8Rx, 29x, 2Ex, C6x, C9x, CAx, CBx,...
  • Page 144 Table 8. Parts list—Overall (continued) No. FRU (Overall) FRU no. 60Y3199 Bluetooth daughter card (BDC-2.1) • 0616-CTO, 22x, 25x, 26x, 27x, 28x, 29x, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx 60Y3213 • 2842-CTO, 34x, 35x, 36x, 37x, 39x, 3Bx, 3Dx, 3Px, 3Qx, 42x, 43x, 45x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 33x, 3Gx, 46x, 3Hx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 5Ex, 5Fx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 5Xx, 5Yx, 5Zx, 62x, 63x, 64x, 65x, 7Bx, 7Cx, 7Dx,...
  • Page 145 Table 8. Parts list—Overall (continued) No. FRU (Overall) FRU no. 63Y2094 System board assembly, GM45 (B3/FastEthernet) Integrated 14W • 0616-CTO • 2842-CTO, BNx, BPx, BQx, GQx, GRx, GSx, GTx, GVx, HBx, HRx, HUx, HVx • 2874-CTO • 2931-CTO System board assembly, GM45 (B3/GigabitEthernet) Integrated 14W 63Y2096 •...
  • Page 146 Table 8. Parts list—Overall (continued) No. FRU (Overall) FRU no. 63Y2100 System board assembly, GM45 (B3/FastEthernet) Integrated 15W • 2847-CTO, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 7Wx, 7Xx, 7Yx, AQx, ASx, AUx • 2873-CTO • 2875-CTO • 5072-CTO System board assembly, GM45 (B3/GigabitEthernet) Integrated 15W 63Y2102 •...
  • Page 147 Table 8. Parts list—Overall (continued) No. FRU (Overall) FRU no. DWx, DXx, DYx, DZx, E5x, EAx, EBx, ECx, EDx, EEx, EFx, EGx, EHx, EJx, EKx, ELx, EMx, ENx, EPx, EQx, ERx, ESx, ETx, EUx, EVx, EWx, EZx, F5x, F6x, F7x, F8x, FAx, FBx, FCx, FDx, FEx, FFx, FGx, FHx, FJx, FKx, FLx, FMx, FNx, FPx, FQx, FSx, FTx, FUx, FVx, FWx, FXx, FYx, FZx, G2x, G3x, G4x, G5x, G6x, G7x, G8x, G9x, GBx, GCx, GDx, GEx, GFx, GKx, GLx, GMx, GNx, GPx, GQx, GRx, GSx, GTx, GUx, GVx, GWx, GXx, GYx,...

  • Page 148: Lcd Frus

    Table 8. Parts list—Overall (continued) No. FRU (Overall) FRU no. 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 4Xx, 4Yx, 52x, 53x, 54x, 55x, 56x, 57x, 58x, 59x, 5Ax, 5Bx, R2x, R3x, R4x, R6x, R7x, R8x, R9x, RAx, RBx, RCx, RDx, RJx •...
  • Page 149 Chapter 10 Parts list...
  • Page 150 Table 9. Parts list—14.0-inch HD LCD No. FRU (14.0-inch HD LCD) FRU no. 75Y4787 LCD front bezel for 14W Integrated camera with microphone (0.3M) 60Y3325 • 0616-CTO, 22x, 25x, 26x, 27x, 28x, 29x, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx 63Y0171 •...
  • Page 151 Table 9. Parts list—14.0-inch HD LCD (continued) No. FRU (14.0-inch HD LCD) FRU no. Wireless WAN antenna set 14W 45M2852 N • 0616-CTO • 2842-CTO, 22x, 3Tx, 3Vx, 8Rx, AHx, AKx, 26x, 28x, 2Bx, 2Dx, B8x, BBx, DHx, DKx, FMx, FNx, FPx, FQx, FSx, FTx, FUx, FVx, G6x •...
  • Page 152 FRU no. 04W0373 N LCD cover kit, Texture 14W (with ThinkPad and Lenovo logo) • 0616-CTO, 22x, 25x, 26x, 27x, 28x, 29x, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx • 2842-CTO, JQx, JRx, JSx, JTx, JUx, JVx, JWx, JXx, JYx, JZx, K2x, K3x, K4x, K5x, K6x,...
  • Page 153 Table 9. Parts list—14.0-inch HD LCD (continued) No. FRU (14.0-inch HD LCD) FRU no. 42T0670 LCD module, 14.0-inch HD glare • 0616-CTO 42T0658 • 2842-all 42T0684 • 2874-all 42T0648 • 2931-CTO 27R2433 27R2463 93P5499 27R2497 93P5707 93P5727 93P5735 93P5723 04W0412 42T0668 LCD module, 14.0-inch HD anti-glare •...
  • Page 154 Table 10. Parts list—15.6-inch HD LCD (continued) No. FRU (15.6-inch HD LCD) FRU no. 9Rx, 9Sx, 9Tx, 9Ux, 9Vx, 9Wx, 9Xx, 9Yx, 9Zx, 3Zx, A2x, A3x, A4x, A5x, A6x, A7x, A8x, AAx, ABx, ACx, ADx, AEx, AFx, AGx, AHx, AJx, AKx, ALx, AMx, AQx, ARx, ASx, ATx, AUx, AWx, AXx, AYx, AZx, B2x, B3x, B8x, B9x, BAx, BCx, BDx, BEx, BFx, BGx, BHx, BJx, BKx, BMx, BNx, BPx, BRx, BSx, BTx, BUx, BVx, BWx, BXx, BYx, BZx, C2x, C8x, C9x, CCx, CDx, CEx, CFx, CLx, CMx, CNx, CPx, CQx...
  • Page 155 FRU no. 04W0374 N LCD cover kit, Texture 15W (with ThinkPad and Lenovo logo) • 2847-CTO, CRx, CSx, CUx, CVx, CWx, CXx, CYx, CZx, D2x, D3x, D4x, D5x, D6x, D7x, D8x, D9x, DAx, DBx, DCx, DDx, DEx, DFx, DGx, DHx, DJx, DKx, DLx, DMx, DNx, DPx, DQx, DRx, DSx, DTx •...
  • Page 156 Table 10. Parts list—15.6-inch HD LCD (continued) No. FRU (15.6-inch HD LCD) FRU no. 42T0652 LCD module, 15.6-inch HD glare • 2847-CTO, 22x, 23x, 33x, 34x, 35x, 36x, 37x, 38x, 39x, 3Dx, 3Ex, 42x, 43x, 44x, 45x, 46x, 42T0674 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 3Kx, 3Lx, 4Jx, 3Mx, 3Nx, 3Px, 42T0688 3Qx, 4Xx, 4Yx, 4Zx, 52x, 53x, 54x, 55x, 56x, 57x, 58x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 42T0662...

  • Page 157: Keyboard

    Table 11. Parts list—15.6-inch HDx, LCD (continued) No. FRU (15.6-inch HDx, LCD) FRU no. Wireless WAN antenna set 15W 45M2854 N • 2847-CTO • 2873-CTO • 2875-CTO Hinges 15W 60Y4349 Hinges 15W 60Y4350 LCD cover kit Paint 15W (with logo) 60Y5346 •...

  • Page 158: Miscellaneous Parts

    Table 12. Parts list—Keyboard (continued) Language FRU no. French 45N2294 45N2364 45N2434 German 45N2295 45N2365 45N2435 Greek (U.S. English and Greek layout) 45N2296 45N2366 45N2436 Hebrew 45N2297 45N2367 45N2437 Hungarian 45N2298 45N2368 45N2438 Icelandic 45N2299 45N2369 45N2439 India English 63Y0225 63Y0227 63Y0229 Italian...
  • Page 159 Table 13. Parts list—Miscellaneous parts (continued) FRU no. • Security screw M2 × 4 mm (2) 60Y4344 Seal kit: • Tape for LCD cable (large) • Tape S (cable fix) • Tape L (cable fix) • Screw cap, thin • Screw cap square System board miscellaneous parts 14W 60Y4414 60Y4415...

  • Page 160: Ac Power Adapters

    • Eject sheet • USB gascket LCD miscellaneous parts: • Heat spreader for camera • ThinkPad logo • Lenovo logo • Label (camera) • Label (no camera) • Label (LED) • Tape cable fix (10 × 38) • LCD latch R •...

  • Page 161: Power Cords

    Table 16. Parts list—3-pin ac adapters FRU no. 42T5283 3-pin (65 W, 20 V) adapter (models CTO, xxG, xxM, xxQ, xxA, xxT, xxK, xxC, xxB, xxH, xxV) 3-pin (65 W, 20 V) adapter (models CTO, xxG, xxM, xxQ, xxA, xxT, xxK, xxC, xxB, xxH, xxV) 42T4421 42T4417 3-pin (65 W, 20 V) adapter (models CTO, xxG, xxM, xxQ, xxA, xxT, xxK, xxC, xxB, xxH, xxV)

  • Page 162: Recovery Discs

    Table 18. Parts list—3-pin power cords (continued) FRU no. Country or region Korea 42T5077 • models -CTO, xxK 42T5162 Switzerland 42T5044 • models -CTO, xxG 42T5129 Taiwan 42T5071 • models -CTO, xxV 42T5156 U.K., China (Hong Kong S.A.R.) 42T5035 42T5120 •...

  • Page 163: Windows Xp Professional (Shipping Group) Dvds

    Table 19. Parts list—Windows XP Professional (32 bit) recovery DVDs (continued) Language 03W7690 Spanish Traditional Chinese 03W7676 03W7682 Traditional Chinese (Hong Kong S.A.R.) Turkish 03W7691 Windows XP Professional (shipping group) DVDs Windows XP Professional (shipping group) is preinstalled as the operating system in the following models: •...

  • Page 164: Windows Vista Home Premium (32 Bit) Dvds

    Table 21. Parts list—Windows Vista Home Basic (32 bit) recovery DVDs Language English 58Y2606 English for India 58Y2604 Russian 58Y2605 Russian (English-enabled) 58Y3198 Simplified Chinese 58Y2603 Spanish 58Y3199 Traditional Chinese (Hong Kong S.A.R.) 58Y3197 Windows Vista Home Premium (32 bit) DVDs Windows Vista Home Premium (32 bit) is preinstalled as the operating system in the following models: •...

  • Page 165: Windows Vista Business (32 Bit) Dvds

    Table 23. Parts list—Windows Vista Home Premium (64 bit) recovery DVDs Language English 58Y3196 Spanish 58Y3195 Windows Vista Business (32 bit) DVDs Windows Vista Business (32 bit) is preinstalled as the operating system in the following models: • 0616-CTO • 2842-CTO, 22x, 39x, 45x, 47x, 4Jx, 4Lx, 4Mx, 4Nx, 4Sx, 4Tx, 83x, 84x •...

  • Page 166: Windows 7 Home Basic (32 Bit) Dvds

    Windows 7 Home Basic (32 bit) DVDs Windows 7 Home Basic (32 bit) is preinstalled as the operating system in the following models: • 0616-CTO, 22x, 25x, 27x, 2Gx, 2Hx, 2Kx, 2Lx • 2842-CTO, 3Fx, 3Gx, 3Rx, 66x, 67x, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Px, 6Qx, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 6Zx, 72x, 73x, 74x, 75x, 76x, 87x, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx, 8Nx, 8Sx, 8Tx, 8Ux, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx, 92x, 93x, 94x, 95x, 96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, 9Fx, 9Gx, 9Hx, 9Jx, 9Kx, 9Lx, 9Mx, 9Nx, 9Px,...

  • Page 167: Windows 7 Home Premium (64 Bit) Dvds

    • 2873-CTO • 2874-CTO, 4Ax, 4Bx, 4Gx, 4Kx, 63x, 64x, 65x, 66x, 67x, 69x, 6Ax, 6Cx • 2875-CTO, 2Px, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Kx, 4Lx, 4Nx, R3x, R4x, R5x, RBx, RCx, RHx • 2931-CTO • 5072-CTO Table 27. Parts list—Windows 7 Home Premium (32 bit) recovery DVDs Language P/N (SP0) P/N (SP1)

  • Page 168: Windows 7 Professional (32 Bit) Dvds

    Table 28. Parts list—Windows 7 Home Premium (64 bit) recovery DVDs (continued) Language P/N (SP0) P/N (SP1) 03W7091 04T2109 Greek Hebrew 03W7093 04T2111 Hungarian 03W7094 04T2112 Italian 03W7095 04T2113 Japanese 03W7794 04T2712 Korean 03W7097 04T2114 — Norwegian 04T2115 Polish 03W7098 04T2116 Portuguese 03W7099...

  • Page 169: Windows 7 Professional (64 Bit) Dvds

    Table 29. Parts list—Windows 7 Professional (32 bit) recovery DVDs Language P/N (SP0) P/N (SP1) Brazilian Portuguese 03W7029 04T2049 Czech 03W7032 04T2052 Danish 03W7033 04T2053 English 03W7054 04T2073 03W7056 04T2075 English, Finnish, and Swedish (in Sweden) English, French, German, and Dutch (in Belgium and Luxemburg) 03W7055 04T2074 03W7057...

  • Page 170: Common Service Tools

    Table 30. Parts list—Windows 7 Professional (64 bit) recovery DVDs Language P/N(SP0) P/N(SP1) Brazilian Portuguese 03W7058 04T2077 Czech 03W7061 04T2080 Danish 03W7062 04T2081 English 03W7083 04T2101 03W7085 04T2103 English, Finnish, and Swedish (in Sweden) English, French, German, and Dutch (in Belgium and Luxemburg) 03W7084 04T2102 03W7086...
  • Page 171 USB floppy diskette drive for maintenance diskette 05K9283 27L3452 USB floppy diskette drive tool kit Test card for integrated Smart Card 42W7820 — ThinkPad Hardware Maintenance Diskette Version 1.73 or later Note: Download the file from the following Web site: http://support.lenovo.com Chapter 10 Parts list...
  • Page 172 Hardware Maintenance Manual...

  • Page 173: Appendix A. Notices

    Lenovo representative for information on the products and services currently available in your area. Any reference to a Lenovo product, program, or service is not intended to state or imply that only that Lenovo product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any Lenovo intellectual property right may be used instead.

  • Page 174: Electronic Emission Notices

    Electronic emission notices For electronic emission information on Class B digital devices, refer to the corresponding information in the User Guide. Trademarks The following terms are trademarks of Lenovo in the United States, other countries or both: Lenovo Rescue and Recovery ThinkPad...
  • Page 176 Part Number: 60Y3635_05 Printed in China (1P) P/N: 60Y3635_05...
  • Page 177 *60Y3635_05*...

This manual is also suitable for:

Thinkpad l510Thinkpad sl410Thinkpad sl51028425ju28427pu28472ju ... Show all

Table of Contents
