1
Step 4
.
Proceed to disconnect the IDE Cable [1] and Power
Cable [2] from the Hard Drive.
IMPORTANT! Some force may be required to initiate the removal
of the cables. Take caution not to damage the cables.
Pull with equal force on both sides of each cable to remove them
as shown above.
Step 6
.
Using the enclosed magnetic screwdriver, remove the
four (4) screws that secure the Drive into the bracket.
IMPORTANT! Before proceeding, take note of original position of
the Drive inside the bracket.
Step 8
.
Reinstall the rail being careful to align the rails with the
guides. Firmly press the latch to lock the bracket in place.
P/N T99860132
Rev. B
2
Slide out the original drive.

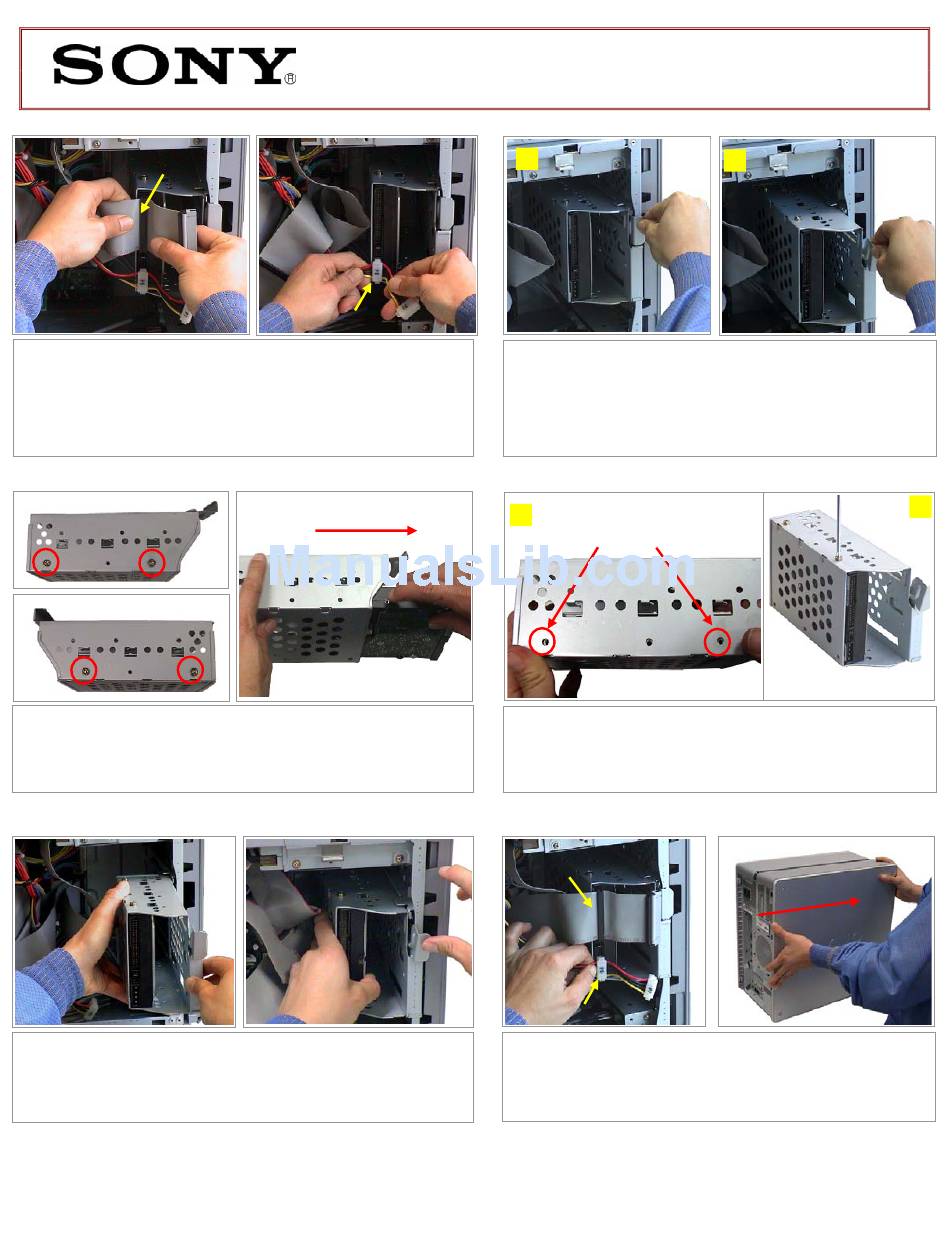

PCV-RZ Series Hard Disk Drive
Replacement Instructions
[A]
Step 5
.
[A] Release the HDD bracket by pulling on the latch
as shown on the picture. Some force may be required to unlock
the latch. [B] Slide the complete bracket assembly out of the
unit.
Ensure that all 4 holes ( 2 on
[A]
each side) are in alignment
Step 7
.
[A] Slide New Hard drive inside bracket with all
holes in alignment. [B] Reinstall the four (4) screws previously
removed, securing new drive into the bracket.
1
2
Step 9
.
Reconnect the IDE Cable [1] and Power Cable [2]
into their original position. Align the Side Panel and slide it in
the direction of the arrow as shown until the Tabs are locked in
place.
2/2
[B]
[B]
