M I C R O W A V E O V E N O P E R AT I O N M A N U A L MODELS R-551ZS C O N T E N T S • For Customer Assistance .. 2 • Precautions to Avoid Possible Exposure to Excessive Microwave Energy .... 2 • Consumer Limited Warranty .
MODEL NUMBER _______________________ SERIAL NUMBER _____________ DATE OF PURCHASE ______________________ DEALER ___________________________ TELEPHONE ________________ SERvICER ___________________________ TELEPHONE ________________ TO PHONE: DIAL 1-800-BE-SHARP ( 237-4277 ) for : SERVICE (for your nearest Sharp Authorized Servicer) PARTS (for your authorized parts distributor) ADDITIONAL CUSTOMER INFORMATION DIAL 1-800-642-2122 for : ACCESSORIES and COOKBOOK TO WRITE:...
Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than an authorized servicer.
I M P O R T A N T S A F E T Y I N S T R U C T I O N S When using electrical appliances, basic safety precautions should be followed, including the following: WARNING-To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy: 11.
F E D E R A L C O M M U N I C A T I O N S C O M M I S S I O N R A D I O F R E Q U E N C Y I N T E R F E R E N C E S T A T E M E N T WARNING: This equipment generates and uses ISM frequency energy and if not installed and used properly, that is in strict accordance with the manufacturer's instructions, may cause interference to radio and television...
I N S T A L L A T I O N G U I D E 1. Examine the oven after unpacking. Check for damage such as a misaligned door, broken door or dent in the cavity. If any damage is visible, DO NOT INSTALL, and notify your dealer immediately. 2.
S P E C I F I C A T I O N S 120V AC, 60Hz SINGLE PHASE WITH POWER SUPPLY GROUNDING INPUT POWER 1600 W MICROWAVE ENERGY OUTPUT 1100 W FREQUENCY 2,450MHz OUTSIDE DIMENSIONS (W x H x D) 23.2 x 13.3 x 18.9 in.

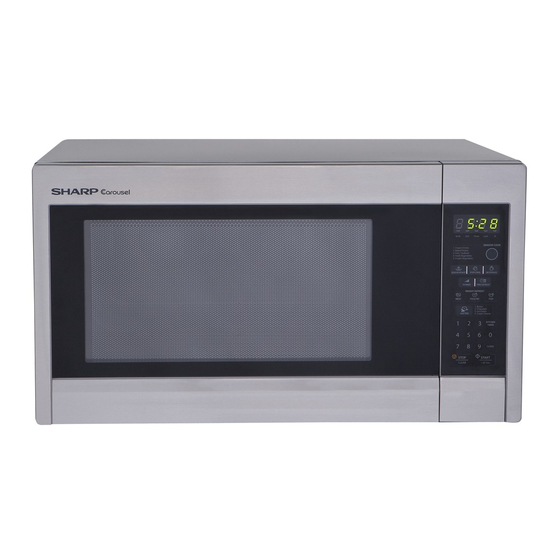

F E A T U R E S D I A G R A M 1 Door latch - When the door is closed, it will 8 Waveguide cover - Protects the microwave automatically shut off. If the door is opened outlet from splashes of cooking foods. while the oven is operating, the magnetron will automatically shut off.
Page 9
F E A T U R E S D I A G R A M 1 DISPLAY - Cooking time, power level, 8 SOFTEN - Used to soften food. indicators and current time are displayed. 9 TIME SET PAD - Used to set the cooking time and the current time.
O P E R A T I O N P R O C E D U R E This section includes useful information about oven operation. Plug power supply cord into a standard 3-pronged Time clock returns to the present time when the 14 Amp, 120V AC 60Hz power outlet.
C O N T R O L S SETTINg THE CLOCK When the oven is first plugged in, the display will show “:0” and a tone will sound. If the AC power ever goes off, the display show “ : 0” when the power comes back on. 1.
C O N T R O L S KITCHEN TIMER MODE (CONTINUED) HOW TO USE TO DELAY THE START OF COOKING 1. Touch KITCHEN TIMER pad. The TIMER indicator lights and “ : 0” is displayed. 2. Press the amount of time you want The display will show what you touched.
C O N T R O L S WEIgHT DEFROSTINg AUTO DEFROST lets you easily defrost food by eliminating guesswork in determining defrosting time. Follow the steps below for easy defrosting. 1. Touch MEAT pad. The lb indicator light and “ 1.0 ” is displayed. 2.
C O N T R O L S TIME DEFROSTINg When TIME DEFROST is selected, the automatic cycle divides the defrosting time into periods of alternating defrost and stand times by cycling on and off. 1. Touch TIME DEFROST pad. The DEF indicator lights and “...
C O N T R O L S COOKINg IN ONE STAgE 1. Touch POWER pad. The M/W indicator lights. (Select the desired power level.) The display will show what you touched. This example shows power level 5. NOTE : If step 1 is omitted, the oven will cook at full power.
C O N T R O L S +30 SEC +30 sec allows you to reheat for 30 seconds at 100% (full power) by simply touching the +30 sec pad. By repeatedly touching the +30 sec pad, you can also extend reheating time to 5 minutes by 30 second increments.
C O N T R O L S SENSOR OPERATIONS The Sensor Cook categories are designed to detect the increasing humidity released by the food during the cooking process. The microwave oven sensor will automatically adjust the cooking time to the type and amount of food.
C O N T R O L S SENSOR COOK SENSOR COOK allows you to cook or reheat many of your favorite foods by repeatedly touching the SENSOR COOK pad. When you touch the SENSOR COOK pad once, “SC-1” will be displayed. By repeatedly touching this pad, you can select other food category as shown in below.
C O N T R O L S CHILD SAFETY LOCK Child safety lock feature may lock the control panel to prevent the oven from being accidentally started or used by children. To lock, press and hold STOP/CLEAR pad for 3 seconds. Lock indicator will be displayed. To unlock, press and hold STOP/CLEAR pad for 3 seconds.
C A R E O F Y O U R M I C R O W A v E O v E N The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. Turn the oven off before cleaning. It is occasionally necessary to remove the glass tray for cleaning.
C A R E O F Y O U R M I C R O W A v E O v E N BEFORE YOU CALL FOR SERVICE Refer to following checklist, you may prevent an unnecessary service call. * The oven doesn’t work : * Sparking in the cavity;...
Q U E S T I O N S A N D A N S W E R S * Q : I accidentally ran my microwave oven without * Q : What does “standing time” mean? any food in it. Is it damaged? A : “Standing time” means that food should be A : Running the oven empty for a short time will not removed from the oven and covered for additional d a m a g e t h e o v e n .
C O O K I N G I N S T R U C T I O N S UTENSIL gUIDE Only use utensils that are suitable for use in microwave ovens. To cook food in the microwave oven, the microwaves must be able to penetrate the food, without being reflected or absorbed by the dish used.
C O O K I N G I N S T R U C T I O N S USE YOUR MICROWAVE OVEN SAFELY general use Do not operate the oven if door seals or sealing Do not attempt to defeat or tamper with safety interlocks.
C O O K I N G I N S T R U C T I O N S MICROWAVINg PRINCIPLES Microwave energy has been used in this country to cook and reheat food since early experiments with RADAR in World War ll.
C O O K I N G I N S T R U C T I O N S COOKINg TECHNIQUES standing tiMe staRting teMPeRatuRe Dense foods e.g. meat, jacket potatoes and cakes, The colder the food, the longer it takes to heat up. Food require standing time(inside or outside of the oven) after from a fridge takes longer to reheat than food at room cooking, to allow heat to finish conducting to cook the...
C O O K I N G I N S T R U C T I O N S DEFROSTINg gUIDE ▶ Do not defrost covered meat. Covering might allow ▶ When defrosted, food should be cool, but softened in cooking to take place.
Page 28
C O O K I N G I N S T R U C T I O N S COOKINg & REHEATINg CHART Reheating chart • Baby food particularly needs to be checked carefully before serving to prevent burns. • When heating pre-packaged ready-cooked foods, always follow the pack instructions carefully. •...
C O O K I N G I N S T R U C T I O N S VEgETABLE CHART Use a suitable glass pyrex bowl with lid. Add 30-45ml cold water(2-3 tbsp.) for every 250g unless another water quantity is recommended - see table.
Page 30
C O O K I N G I N S T R U C T I O N S RECIPES toMato & oRange souP 1 oz.(25g) butter 1. Melt the in a large bowl on P-HI for 1 minute. 1 medium onion, chopped 2.
Page 31
C O O K I N G I N S T R U C T I O N S blue cheese & chive JacKets 2 baking potatoes, 1. Prick each potato in several places. Cook on P-HI for (approx.9 oz.(250g) each) 7-9 minutes.
Page 32
C O O K I N G I N S T R U C T I O N S scRaMbled egg oz.(15g) butter 1. Melt the butter in a bowl on P-HI for 1 minute. 2 eggs 2. Add the eggs, milk and seasoning and mix well. 2 tbsp(30ml) milk 3.
Page 33
SHARP ELECTRONICS CORPORATION Sharp Plaza, Mahwah, New Jersey 07495-1163 JUN 29, 2012 KOR-18ASBA79(R-551ZS)(영).indd 33 2012-07-06 오전 10:54:33...
