To change the callout tag
1 In the parent view, select the callout bubble.
2 Click
3 In the Element Properties dialog, click Edit/New.
4 In the Type Properties dialog, for Callout Tag, select the callout tag family to use.
If the desired callout tag family is not listed, load it or create it. See
352 or Creating a Callout Tag Family
You can specify the reference label for a reference callout in the Type Properties dialog. (See
Reference Callouts
section tag family to use for this callout.
5 Click OK twice to save your changes.

Changing the Boundaries of a Callout

The boundaries of the callout bubble define the part of the building model that displays in the callout view.
To change the callout boundaries, do either of the following:
In the callout view, drag the crop region boundaries.

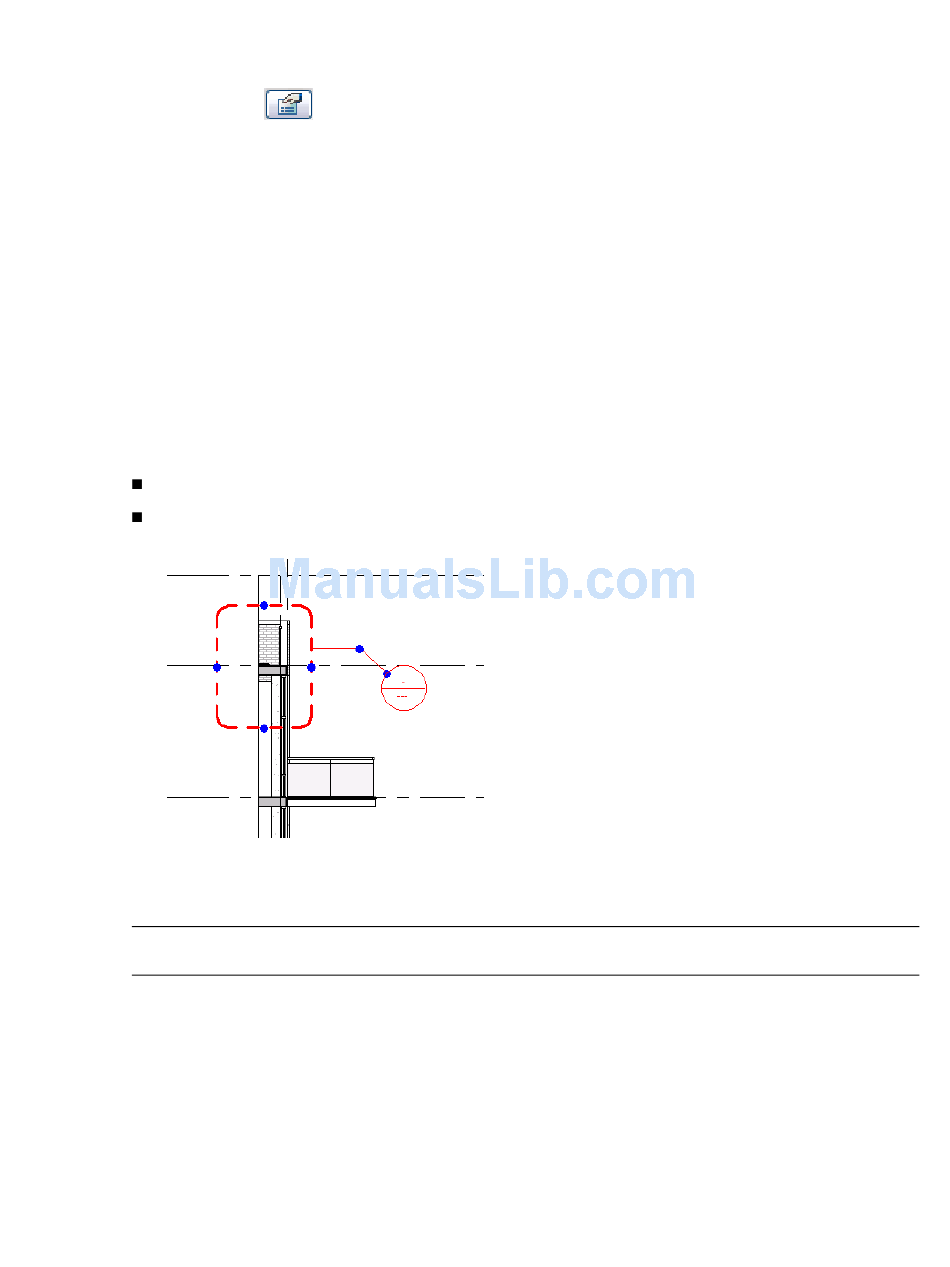

In the parent view of the callout, select the callout bubble. Drag a blue dot to change a boundary of the
callout.
If you change a callout boundary in one view, Revit Architecture automatically updates the other view with
the same changes.
NOTE You can change the boundaries of a detail callout or a view callout. Resizing the boundaries of a reference
callout does not affect the crop region of the referenced view.

Adjusting the Callout Leader Line

In the parent view of a callout, you can move the leader line to any point on the callout bubble.
To adjust the callout leader line
1 In the parent view that displays the callout bubble, select the leader line.
.
on page 107.) If the callout view is a detail view, you can also specify the
on page 106.
Loading Families on page
Modifying a Callout | 103
