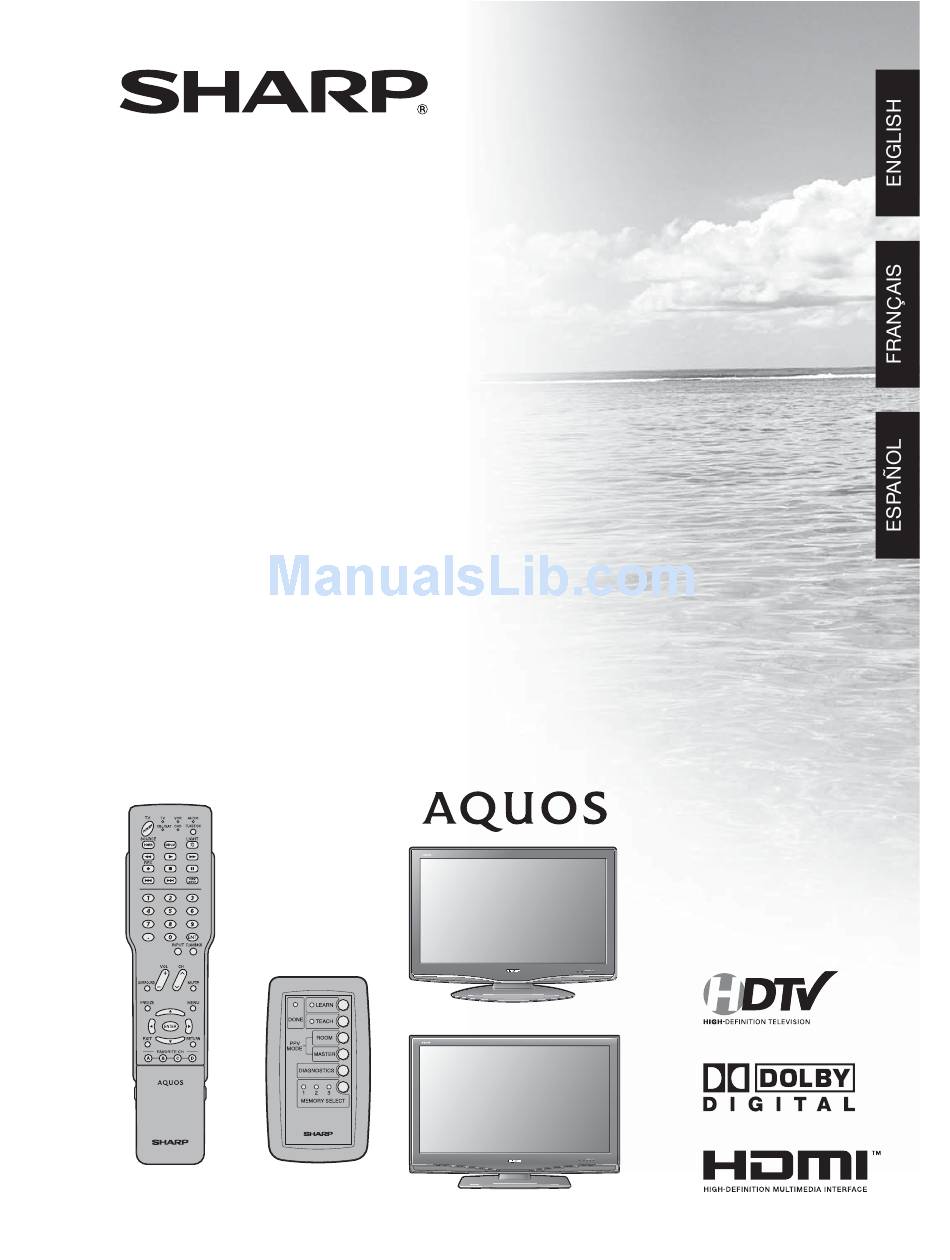

LC-32HT3U LC-37HT3U LC-42HT3U Remote Replicator Duplicateur distant Duplicador remoto AN-H06RCU Remote control unit Télécommande Unidad de control remoto AN-32HTRC OPERATION MANUAL FOR HOTEL OPERATOR MODE D'EMPLOI POUR HOTELIER MANUAL DE OPERACIÓN PARA EMPRESAS HOTELERAS LC-32HT3U LC-37HT3U LC-42HT3U AN-32HTRC AN-H06RCU...
Remote Replicator (AN-H06RCU) Remote control unit (AN-32HTRC) ENGLISH OPERATION MANUAL FOR HOTEL OPERATOR • This operation manual is for LODGENET, ONCOMMAND, NXTV, nSTREAMS and SeaChange users. • This operation manual explains how to set or adjust the TV settings with the Remote Replicator (AN-H06RCU) and the remote control unit (AN-32HTRC), the optional accessories of the LCD TV (LC-32HT3U/LC-37HT3U/LC-42HT3U) designed for hotel guest rooms.
For disposal or recycling information, please contact your local authorities, the Electronic Industries Alliance: www.eiae.org, the lamp recycling organization: www.lamprecycle.org or Sharp at 1-800-BE-SHARP (For U.S.A. Only) Trademarks • Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
IMPORTANT SAFETY INSTRUCTIONS Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product.
Contents IMPORTANT INFORMATION ........1 Remote Replicator ..........26 Trademarks ..............2 Part names ............26 IMPORTANT SAFETY INSTRUCTIONS ....3 Inserting the battery ...........26 Contents ..............4 Storing the settings from the TV ......27 General notes ............6 Transferring the settings to the TV .....27 Accessories ............6 Storing the settings from the TV (for NXTV users TV modes index ..........6 only) ..............27...
Page 6
Contents Basic adjustment settings ........40 Appendix ..............72 Menu operation buttons ........40 Troubleshooting ..........72 On-Screen Display ..........40 Troubleshooting-Digital broadcasting ....72 PPV TV mode menu items (for TV/INPUT 1/INPUT 2/INPUT 3) ....41 PPV TV mode menu items (for HDMI/PC-IN) ..42 NORMAL TV mode menu items ......43 EZ Setup ............44 Channel Setup ...........44 Antenna Setup - DIGITAL ........45...
General notes Accessories Accessories included with the LC-32HT3U/LC-37HT3U/LC-42HT3U See pages 8, 12 and 13 of the operation manual of LC-32HT3U/LC-37HT3U/LC-42HT3U. Optional accessories for the LC-32HT3U/LC-37HT3U/LC-42HT3U • Remote Replicator: Stores the TV settings from one TV (LC-32HT3U/LC-37HT3U/LC-42HT3U) and transfers the TV settings to other TVs (LC-32HT3U/LC-37HT3U/LC-42HT3U).
General notes Quick TV cloning guide (for the PPV TV) The steps below show the process of setting TVs for hotel guest rooms. Press MASTER on the Remote Replicator to turn on the TV. (See page 26.) Use the remote control unit to set or adjust the TV (TV with the master settings). (LODGENET users: See pages 9 to 12.
General notes Quick TV cloning guide (for the Normal TV) If already in Normal TV mode, begin from step 6. Press MASTER on the Remote Replicator to turn on the TV. (See page 26.) Press MENU and the MENU screen displays. Press c / d to select “PPV TV”.
Quick setup for LODGENET users For quick setup, use the remote control unit to perform Function Menu Setup the following operations. Before the setup, press MASTER on the Remote Replicator to turn on the TV You can select the menu items to display on the in the MASTER mode.
Quick setup for LODGENET users Default Channel Default Volume Sets the default volume or turns the Auto adjustment Sets the default channel. on or off for when the TV is turned on. The Auto adjustment sets the volume to a suitable level depending on the previously used volume setting.
Quick setup for LODGENET users Room Mode CH Re-Map You can set “Maximum Volume”, “R/C Buttons”, “TV Sets the channel order (logical channel) to your Buttons” and “TV INPUT Button” for the ROOM mode. preferred order. Press MENU and the MENU screen displays. Press c / d to select “PPV TV”.
Quick setup for LODGENET users View Mode You can set the picture size for when the TV is turned Press VIEW MODE. • The View Mode menu displays. Press VIEW MODE or a/b while the View Mode menu is still on the screen. •...
Quick setup for ONCOMMAND users For quick setup, use the remote control unit to perform Default Channel the following operations. Before the setup, press MASTER on the Remote Replicator to turn on the TV Sets the default channel. in the MASTER mode. Repeat steps 1 and 2 in PPV System.
Quick setup for ONCOMMAND users Default Volume Room Mode Sets the default volume or turns the Auto adjustment You can set “Maximum Volume”, “R/C Buttons”, “TV on or off for when the TV is turned on. The Auto Buttons” and “TV INPUT Button” for the ROOM mode. adjustment sets the volume to a suitable level Repeat steps 1 and 2 in Default Volume.
Quick setup for ONCOMMAND users Label Input CH Re-Map You can assign a label to each input source and Sets the channel order (logical channel) to your channel. preferred order. Press MENU and the MENU screen displays. Press c / d to select “PPV TV”. Press a / b to select “Label Input”, and then press ENTER.
Quick setup for ONCOMMAND users View Mode You can set other menu items, such as Brightness, in the PPV TV mode. (See You can set the picture size for when the TV is turned pages 41 to 67.) Press VIEW MODE. When you are fi...
Quick setup for NXTV users For quick setup, use the remote control unit to perform Default Channel the following operations. Before the setup, press MASTER on the Remote Replicator to turn on the TV Sets the default channel. in the MASTER mode. Repeat steps 1 and 2 in PPV System.
Quick setup for NXTV users Default Volume Room Mode Sets the default volume or turns the Auto adjustment You can set “Maximum Volume”, “R/C Buttons”, “TV on or off for when the TV is turned on. The Auto Buttons” and “TV INPUT Button” for the ROOM mode. adjustment sets the volume to a suitable level Repeat steps 1 and 2 in Default Volume.
Quick setup for NXTV users View Mode CH Re-Map Sets the channel order (logical channel) to your You can set the picture size for when the TV is turned preferred order. Press VIEW MODE. • The View Mode menu displays. Press VIEW MODE or a / b while the View Mode menu is still on the screen.
Quick setup for nSTREAMS users For quick setup, use the remote control unit to perform Selected item Description the following operations. Before the setup, press MASTER on the Remote Replicator to turn on the TV Language You can select a language from in the MASTER mode.
Quick setup for nSTREAMS users Default Volume Room Mode Sets the default volume or turns the Auto adjustment You can set “Maximum Volume”, “R/C Buttons”, “TV on or off for when the TV is turned on. The Auto Buttons” and “TV INPUT Button” for the ROOM mode. adjustment sets the volume to a suitable level previously used volume setting.
Quick setup for nSTREAMS users View Mode CH Re-Map Sets the channel order (logical channel) to your You can set the picture size for when the TV is turned preferred order. Press VIEW MODE. • The View Mode menu displays. Press VIEW MODE or a / b while the View Mode menu is still on the screen.
Quick setup for SeaChange users For quick setup, use the remote control unit to perform Default Channel the following operations. Before the setup, press MASTER on the Remote Replicator to turn on the TV Sets the default channel. in the MASTER mode. Repeat steps 1 and 2 in PPV System.
Quick setup for SeaChange users Default Volume Room Mode Sets the default volume or turns the Auto adjustment You can set “Maximum Volume”, “R/C Buttons”, “TV on or off for when the TV is turned on. The Auto Buttons” and “TV INPUT Button” for the ROOM mode. adjustment sets the volume to a suitable level Repeat steps 1 and 2 in Default Volume.
Quick setup for SeaChange users View Mode CH Re-Map Sets the channel order (logical channel) to your You can set the picture size for when the TV is turned preferred order. Press VIEW MODE. • The View Mode menu displays. Press VIEW MODE or a / b while the View Mode menu is still on the screen.
Remote Replicator Part names 1 LEARN indicator: Lights up while storing the TV settings from the TV to the Remote Replicator. 2 DONE indicator: Lights up when storing or transferring is fi nished. 3 TEACH indicator: Lights up while transferring the TV settings from the Remote Replicator to the TV.
Remote Replicator Storing the settings from the TV Storing the settings from the TV (for NXTV users only) Connect the TRANSPORT (RJ-11) connector of the Remote Replicator to the TRANSPORT Press MASTER to turn on the TV in the terminal of the TV (TV with the master settings) MASTER mode.
Page 29
Remote Replicator NOTE Notes on using the Remote Replicator while in Normal TV Mode • The data from performing LEARN while in Normal TV Mode cannot be used when performing TEACH while in PPV TV Mode. Perform TEACH after switching to Normal TV Mode. (Also, data in the Remote Replicator from performing LEARN while in PPV TV Mode cannot be used when performing TEACH while in Normal TV Mode.
Other settings for the PPV TV mode PPV TV menu Reset All of the TV settings such as “Picture”, “Audio” and The PPV TV menu displays when MENU on the remote “Input Label” will return to the factory presets after control unit is pressed, and the TV is in the PPV TV performing “Reset”...
Other settings for the PPV TV mode Function menu (for LODGENET Option menu (for LODGENET and and nSTREAMS users only) nSTREAMS users only) You can display the Function menu by pressing the You can display the Option menu by pressing the FUNCTION button on the LODGENET or nSTREAMS FUNCTION button on the LODGENET or nSTREAMS remote control unit.
Remote control unit TV POWER: Switches the TV power on or enters Part names standby. (See page 35.) DISPLAY: Displays the channel information. SOURCE POWER: Turns the power of the external equipment on and off. External equipment operational buttons: Operates the external equipment.
Remote control unit Inserting the batteries If the remote control unit fails to operate TV functions, replace the batteries in the remote control unit. 1 Open the battery cover. 2 Insert two “AAA” size batteries 3 Close the battery cover. (supplied with the product).
Preparation You can connect many types of external equipment Connecting a VCR, game console to your TV like a Blu-ray disc player, HD-DVD player, or camcorder DVD player, VCR, Digital TV tuner, HDMI equipment, game console or camcorder. To view external source A VCR, game console, camcorder and other images, select the input source from INPUT on the audiovisual equipment can be conveniently connected...
Preparation Connecting HDMI equipment You can use the INPUT 4 or INPUT 5 terminal when connecting HDMI equipment. HDMI cable (commercially available) HDMI equipment NOTE • When using an HDMI-DVI conversion cable, input the audio signal to AUDIO terminal of INPUT 5. •...
Watching TV See page 29 to switch the TV to the Normal TV mode. Simple operations for watching a TV program Turning on the power Press POWER on the TV, or TV POWER on the remote control unit. • POWER indicator (Green): The TV is on. (After a few seconds, a window appears with sound.) NOTE •...
Watching TV Initial setup When you turn on the TV for the fi rst time, it will automatically memorize the broadcasting channels where you live. Perform the following steps before you press TV POWER on the remote control unit. 1. Insert the batteries into the remote control unit. (See page 32.) 2.
Watching TV Method 1 Simple button operations for Using CH r / s on the remote control unit or on the changing channels You can change channels in several ways. Method 2 1 Press FLASHBACK to switch to the previously tuned channel.
Watching TV ■ Using MUTE on the remote control unit Simple button operations for Mutes the current sound output. changing volume/sound ■ Changing the volume You can change the volume on the TV or on the remote control unit. Press MUTE. •...
Watching TV Setting MTS/SAP stereo mode Setting Digital broadcasting audio mode The TV has a feature that allows reception of sound other than the main audio for the program. This feature The types of audio transmitted in a digital broadcast is called Multi-channel Television Sound (MTS).
Basic adjustment settings Menu operation buttons On-Screen Display Use the following buttons on the remote control to Example operate the menu. Option Audio Only Digital Noise Reduction [Off] Input Select [VIDEO] Output select [Fixed] Color System [Auto] Caption Setup Program Title Display [No] 1 Item displayed in yellow •...
Basic adjustment settings Icons PPV TV Indicates the menu item can be set or adjusted in the PPV menu. NORMAL TV Indicates the menu item can be set or adjusted in the Normal TV menu. PPV TV NORMAL TV Indicates the menu item can be set or adjusted in both the PPV menu and Normal TV mode. PPV TV mode menu items (for TV/INPUT 1/INPUT2/INPUT3) PPV TV Picture...
Basic adjustment settings PPV TV PPV TV EZ Setup Channel Setup NORMAL TV NORMAL TV You can run EZ Setup again, even after setting up the If initial setup does not memorize all the channels in preset channels. your region, follow the instructions below to manually memorize the channels.
Basic adjustment settings Press a / b to select “Signal Strength”. Channel memory setting • The signal strength of DIGITAL channel is Press MENU to display the MENU screen, and displayed. The signal information is based on the then press c / d to select “Setup”. current channel.
Basic adjustment settings Favorite channel setting NORMAL TV This function allows you to program 4 favorite channels, in 4 different categories. By setting the favorite channels in advance, you can select your favorite channels easily. Using FAVORITE CH on the remote control unit Select the channel you want to register as a favorite channel.
Basic adjustment settings PPV TV Picture adjustments c button d button Selected item NORMAL TV Backlight The screen dims The screen Adjusts the picture to your preference with the brightens following picture settings. Contrast For less contrast For more contrast Brightness For less brightness For more brightness...
Basic adjustment settings PPV TV PPV TV Advanced picture adjustments Film Mode (3:2 pull-down) NORMAL TV NORMAL TV This TV provides various advanced functions for Automatically detects a fi lm-based source (originally optimizing the picture quality. encoded at 24 frames/second), analyzes it then recreates each still fi...
Basic adjustment settings PPV TV PPV TV Sound adjustment Surround NORMAL TV NORMAL TV You can adjust the sound quality to your preference Surround function allows you to enjoy realistic “live” with the following settings. sound. Press MENU to display the MENU screen, and then press c / d to select “Audio”.
Basic adjustment settings PPV TV Power Control Digital Setup PPV TV NORMAL TV NORMAL TV Power control setting allows you to save energy. This setting allows you to optimize the settings of Digital broadcasting. No signal off When set to “Enable”, the power will automatically shut PPV TV Audio Setup NORMAL TV...
Using external equipment Displaying an external Input Select NORMAL TV PPV TV equipment image NORMAL TV If the image does not come in clearly from the external equipment connected to INPUT 1 or 2 (LC-42HT3U To view external source images, select the input only), you may need to change the input signal type source from INPUT on the remote control unit or on setting on the “Input Select”...
Using external equipment Displaying an image from PPV TV Input Skip PPV TV NORMAL TV NORMAL TV HDMI equipment This setting allows you to skip the HDMI/PC-IN Input on the Input Selection operation. To watch an HDMI/PC-IN equipment image, select “INPUT4” or “INPUT5” from “INPUT Press MENU to display the MENU screen, and SOURCE”...
Useful adjustment settings Auto Sync. adjustment (for Fine Sync. adjustment PPV TV NORMAL TV PPV TV Analog PC input mode only) NORMAL TV Ordinarily you can easily adjust the picture as necessary to change image position using Auto Sync. For automatically adjusting the PC image. In some cases, however, manual adjustment is needed to optimize the image.
Useful adjustment settings Language setting Reset PPV TV NORMAL TV NORMAL TV You can also select a language from the Setup menu. If complex adjustments are made and the settings Select from among 3 languages: English, French and cannot be restored to normal, you can reset the Spanish.
Useful adjustment settings PPV TV PPV TV Input Label Sleep Timer NORMAL TV NORMAL TV Lets you set the input terminal displayed when using For LODGENET and nSTREAMS users, set the the INPUT SOURCE menu or channel display. Sleep Timer from the Function menu. Allows you to set a time when the TV automatically switches to standby.
Useful adjustment settings View Mode for 4:3 Programs PPV TV View Mode for HD Programs PPV TV NORMAL TV NORMAL TV Stretch mode is available for HD programs. Suitable for viewing wide-screen 1.78:1 aspect-ratio programs. When viewing 1.85:1 programs, the stretch mode will still show very thin black bands at the top and bottom of the screen.
Useful adjustment settings PPV TV View Mode (for PC input mode) NORMAL TV You can select the screen size. NOTE • Connect the PC before making adjustments. (See page 34.) • Selectable screen size may vary with input signal type. Press VIEW MODE.
Useful adjustment settings Advanced Option settings Output Select NORMAL TV Allows you to select what controls the audio output. Perform the following steps to set the Option menu items on this page. Selected item Description Fixed • Sound via speaker is adjusted with VOL k / l on the remote control unit or VOL l / k on the TV.
Useful adjustment settings PPV TV AV MODE Selected item Description NORMAL TV STANDARD For a highly defi ned image in a normal AV MODE gives you 7 viewing options to choose from lighting to best match the surrounding environment of the TV, [Enhanced Picture Contrast: on] which can vary due to factors like room brightness, type of program watched or the type of image input...
Useful adjustment settings Press CC. Closed Captions and PPV TV • This will present the Closed Caption information NORMAL TV Digital Closed Captions display. Press CC while the Closed Caption information For LODGENET and nSTREAMS users, set the is still on the screen. Closed Captions from the Function menu.
Useful adjustment settings PPV TV Caption Setup NOTE NORMAL TV • For resetting adjustments to the factory preset values, This function allows you to adjust the closed caption press a / b to select “Reset”, and then press ENTER. screen appearance to suit your preference. •...
Useful adjustment settings Input the same 4-digit number on the Secret number setting “Reconfi rm” screen as in step 4 to confi rm. PPV TV for parental control NORMAL TV New Secret No. (AV input mode only) Secret No. Clear Input Secret No.
Page 64
Useful adjustment settings Changing the secret number Clearing the secret number Allows you to change your current secret number. Allows you to clear your secret number. Repeat steps 1 and 2 in Setting a secret number. • The secret number setting menu displays. Input the 4-digit secret number by using 0–9.
Useful adjustment settings Parental control (setting V-CHIP level) PPV TV NORMAL TV V-CHIP is an electronic fi ltering device built into your TV. This tool gives parents a great degree of control over broadcasts accessed by their children. It allows parents to select programs judged suitable for child viewing while blocking ones judged not suitable.
Page 66
Useful adjustment settings Voluntary movie rating system (MPAA) TV Parental Guidelines (TV Guidelines) Repeat steps 1 to 4 in Voluntary movie rating system (MPAA). Press a / b to select “TV Guidelines”, and then press ENTER. Press a / b to adjust the item to your desired position.
Page 67
Useful adjustment settings Canadian Rating Systems • The TV rating systems in Canada are based on the Canadian Radio-Television and Telecommunications Commission (CRTC) policy on violence in television programming. • While violence is the most important content element to be rated, the structure developed takes into consideration other program content like language, nudity, sexuality and mature themes.
Useful adjustment settings Canadian English ratings Canadian French ratings Repeat steps 1 to 4 in Canadian English ratings. Press a / b to select “Can. French Ratings”, and then press ENTER. Press a / b to adjust the item to your desired position.
Other viewing options PPV TV Freezing images Presetting remote control function NORMAL TV Allows you to capture and freeze a moving image that You can operate the connected AV products (AV you are watching. Receiver, Cable Box, SAT tuner, DTV, VCR, DVD, LD) using the presetting manufacturer function of your remote control unit.
Page 70
Other viewing options Manufacturer codes REMOTE CONTROL REMOTE CONTROL VCR BRAND CODE NUMBER DVD/LD BRAND CODE NUMBER REMOTE CONTROL CATV/SAT BRAND CODE NUMBER NOTE • Numbers marked with * are SAT codes, all others are CATV codes. REMOTE CONTROL AUDIO BRAND CODE NUMBER...
Page 71
Other viewing options ■ Cable control buttons When the FUNCTION is set to CBL/SAT, the cable converter connected to the TV can be operated using 1 to 4. 1 SOURCE POWER Turns the cable converter power on and off. 2 0–9 Press a button (or buttons) that corresponds to the channel that you wish to watch.
Page 72
Other viewing options ■ VCR control buttons The remote control unit button will function as follows when the FUNCTION of the remote control unit is set to VCR. • Press INPUT until the input connected to the VCR is selected. The following 1 to 8 can be used to control the VCR.
Page 73
Appendix Troubleshooting Problem Possible Solution • No power • Check if you pressed TV POWER on the remote control unit. (See page 35.) If the indicator on the TV does not light up, press POWER on the TV. • Is the AC cord disconnected? (See page 16 of the operation manual for the LC- 32HT3U.) •...
Page 74
CLEARING THE SECRET NUMBER If you forget the secret number, clear the secret number using the following procedure. Press MENU to display the MENU screen, and then press c / d to select “Setup”. Press a / b to select “EZ Setup”, “CH Setup”, “Parental CTRL” or “Reset”, and the Secret number input screen displays.
