Before connecting, operating or adjusting this product, please
For USA and Puerto Rico assistance, please call: 1-800-211-PANA(7262) or, contact us via the web at:
http://www.panasonic.com/contactinfo
P
Operating Instructions
Model No.
read the instructions completely.
Please also refer to Operating
Instructions (PDF format) recorded
on the CD-ROM containing the
Operating Instructions (supplied).
You can learn about advanced operation methods and
check the Troubleshooting.

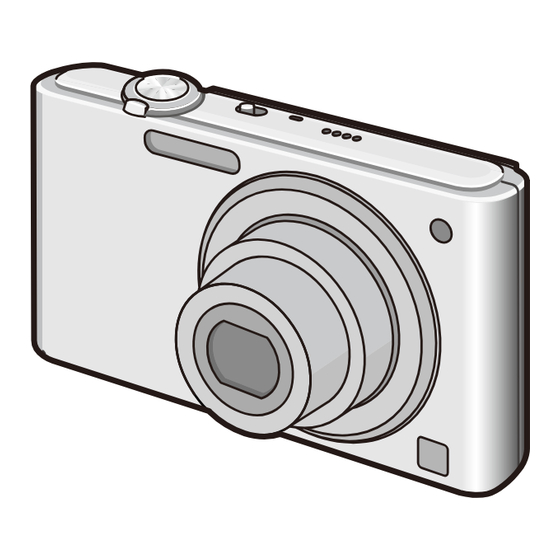

Digital Camera
DMC-FS42
DMC-FS4
VQT2B45-1
H0209HM1049
Basic
Advertisement
Table of Contents
Related Manuals for Panasonic DMC FS4 - Lumix Digital Camera
Summary of Contents for Panasonic DMC FS4 - Lumix Digital Camera
-
Page 1: Operating Instructions
Instructions (PDF format) recorded on the CD-ROM containing the Operating Instructions (supplied). You can learn about advanced operation methods and check the Troubleshooting. For USA and Puerto Rico assistance, please call: 1-800-211-PANA(7262) or, contact us via the web at: http://www.panasonic.com/contactinfo VQT2B45-1 H0209HM1049... -
Page 2: Information For Your Safety
Dear Customer, Thank you for choosing Panasonic! You have purchased one of the most sophisticated and reliable products on the market today. Used properly, we’re sure it will bring you and your family years of enjoyment. Please take time to fi ll in the information in the box below. - Page 3 Trade Name: Panasonic Model No.: DMC-FS42 DMC-FS4 Responsible party: Panasonic Corporation of North America One Panasonic Way, Secaucus, NJ 07094 Support Contact: Panasonic Consumer Electronics Company 1-800-211-PANA(7262) This device complies with Part 15 of the FCC Rules. Operation is subject to the...
- Page 4 About the battery pack CAUTION Battery pack (Lithium ion battery pack) • Use the specifi ed unit to recharge the battery pack. • Do not use the battery pack with equipment other than the specifi ed unit. • Do not get dirt, sand, liquids, or other foreign matter on the terminals. •...
- Page 5 Cautions for Use • Do not use any other cables except a genuine Panasonic AV cable (DMW-AVC1: optional). • Do not use any other USB connection cables except the supplied one.
- Page 6 SDHC Memory Card with SDHC logo that is based on the SD Standard. Please confi rm the latest information on the following website. http://panasonic.co.jp/pavc/global/cs (This Site is in English only.) • Keep the Memory Card out of reach of children to prevent swallowing.
-
Page 7: Table Of Contents
Contents Information for Your Safety ....................2 Standard Accessories......................8 Names of the Components ....................9 Charging the Battery ......................10 Inserting/Removing the Battery/Card (Optional) .............. 12 Setting Date/Time (Clock Set) ..................13 About the Mode and Menu Operation ................14 •... -
Page 8: Standard Accessories
• For information about optional accessories, please refer to “Digital Camera Accessory System”. • If any of the accessories are lost, customers in the USA and Puerto Rico should contact Panasonic’s parts department at 4 VFF0495 1 800 833-9626 for further information about obtaining replacement parts. -
Page 9: Names Of The Components
• When you use a tripod, make sure the tripod is stable with the camera attached to it. 20 Card/Battery door 21 DC coupler cover • When using an AC adaptor, ensure that the Panasonic DC coupler (DMW-DCC4; optional) and AC adaptor (DMW-AC5PP; optional) are used. 22 Release lever... -
Page 10: Charging The Battery
fi re or explosion. Please be advised that we are not liable for any accident or failure occurring as a result of use of a counterfeit battery pack. To ensure that safe products are used we would recommend that a genuine Panasonic battery pack is used. • Use the dedicated charger and battery. - Page 11 Recording conditions by CIPA standard • Temperature: 23 °C (73.4 °F)/Humidity: 50% when the LCD monitor is on. • Using a Panasonic SD Memory Card (32 MB) • Starting recording 30 seconds after the camera is turned on. • Recording once every 30 seconds, with full fl ash every second recording.
-
Page 12: Inserting/Removing The Battery/Card (Optional)
Inserting/Removing the Battery/Card (Optional) • Check that the camera is turned off. • We recommend using a Panasonic card. Slide the release lever in the direction of the arrow and open the card/battery door. • Always use genuine Panasonic batteries (DMW- BCF10PP). -
Page 13: Setting Date/Time (Clock Set)
Setting Date/Time (Clock Set) • The clock is not set when the camera is shipped. Turn the camera on. • When you turn the camera on, [PLEASE SET THE CLOCK] message appears. (It does not appear in Playback Mode.) A [MENU/SET] button B Cursor buttons Press [MENU/SET]. -
Page 14: About The Mode And Menu Operation
About the Mode and Menu Operation Mode switching Slide the recording/playback switch A to (right) or (left). 1 : Recording Mode 5 : Playback Mode Press [MODE] to display the mode selection screen. (Example: Normal Picture Mode) Press e / r to select a mode and press [MENU/SET] to close the menu. -
Page 15: About The Menu Operation
About the menu operation The camera comes with menus that allow you to set the settings for taking pictures and playing them back just as you like. In particular, the [SETUP] menu contains some important settings relating to the camera’s clock and power. - Page 16 Switching to the [SETUP] menu When the camera shows the menu screen after step 1 on “How to use the menu”: 1 Press w to move the menu icon. 2 Press r to select the [SETUP] menu icon [e]. 3 Press q to move to the menu item list. Proceed to step 2 on “How to use the menu”.
-
Page 17: Taking Pictures Using The Automatic Function (Auto Scene Mode)
Recording Mode: ; Taking Pictures Using the Automatic Function (Auto Scene Mode) The camera automatically sets the appropriate settings according to the subject and recording condition. This mode is recommended for beginners to take pictures easily. • The following functions are activated automatically. -
Page 18: Scene Detection
Scene detection When the camera identifi es the optimum scene, the icon of the scene concerned is displayed in blue for 2 seconds, after which its color changes to the usual red. 3 [i-PORTRAIT] 4 [i-SCENERY] 2 [i-MACRO] • Only when [ q ] is selected 5 [i-NIGHT PORTRAIT] •... -
Page 19: Taking Pictures With Your Favorite Settings (Normal Picture Mode)
Recording Mode: 1 Taking Pictures with Your Favorite Settings (Normal Picture Mode) This mode allows you to take pictures freely as more options are available than Auto Scene Mode [ ; ]. Slide the recording/playback switch to [ and press [MODE]. A Recording/playback switch Press e / r to select [NORMAL PICTURE] and press [MENU/SET]. -
Page 20: Playing Back Pictures (Normal Playback Mode)
Playback Mode: 9 Playing Back Pictures (Normal Playback Mode) Slide the recording/playback switch A to [ 5 ]. • Normal playback is set automatically in the following cases: – When the mode was switched to the Playback Mode. – When the camera was turned on while the recording/ playback switch was at [5]. -
Page 21: Deleting Pictures
Playback Mode: 9 z Deleting Pictures Once deleted, pictures cannot be recovered. • Pictures on the built-in memory or the card, which are being played back, will be deleted. To delete a single picture Select the picture to be deleted, and then press [ 4 ]. -
Page 22: Reading The Operating Instructions (Pdf Format)
To uninstall the Operating Instructions (PDF format) Delete the PDF fi le from the “Program Files\Panasonic\Lumix\” folder. • When the contents in the Program Files folder cannot be displayed, click the [Show the contents of this folder] to display them. -
Page 23: Specifi Cations
Specifi cations Digital Camera: Information for your safety Power Source: DC 5.1 V Power Consumption: 1.1 W (When recording) (DMC-FS42)/ 1.0 W (When recording) (DMC-FS4) 0.5 W (When playing back) Camera Effective pixels: 10,100,000 pixels (DMC-FS42)/ 8,100,000 pixels (DMC-FS4) Image sensor: 1/2.5˝... - Page 24 Burst recording Burst speed: Approx. 2.3 pictures/second (DMC-FS42)/ Approx. 3 pictures/second (DMC-FS4) (NORMAL), Approx. 1.7 pictures/second (DMC-FS42)/ Approx. 2 pictures/second (DMC-FS4) (Unlimited) Number of recordable pictures: Max. 5 pictures (DMC-FS42)/ Max. 7 pictures (DMC-FS4) (Standard), Max. 3 pictures (DMC-FS42)/ Max. 4 pictures (DMC-FS4) (Fine), Depends on the remaining capacity of the built-in memory or the card (Unlimited).
- Page 25 Picture size [ + 10M] 3648 × 2736 pixels (DMC-FS42), Still picture: [ + 8M] 3264 × 2448 pixels (DMC-FS4), [ + 5M] 2560 × 1920 pixels, [ + 3M] 2048 × 1536 pixels [ * 9M] 3648 × 2432 pixels (DMC-FS42), [ * 7M] 3264 ×...
-
Page 26: De-A59B
Battery Charger (Panasonic DE-A59B): Information for your safety Input: 110 V to 240 V 50/60 Hz, 0.2 A Output: CHARGE 4.2 V 0.65 A Equipment mobility: Movable Battery Pack (lithium-ion) (Panasonic DMW-BCF10PP): Information for your safety Voltage/capacity (Minimum): 3.6 V/940 mAh... -
Page 27: Digital Camera Accessory System
Digital Camera Accessory System Battery Pack: DC coupler: AC Adaptor: DMW-BCF10PP DMW-DCC4 DMW-AC5PP • Purchase DC coupler and AC adaptor together. You cannot use either of them individually. AV Cable: Soft Case: Semi Hard Case: DMW-AVC1 DMW-CS5 DMW-CHFX30 SDHC Memory Card SD Memory Card 32 GB SDHC Memory Card .. -
Page 28: Digital Camera Accessory Order Form
THE FOLLOWING: VISIT YOUR LOCAL PANASONIC DEALER CALL PANASONIC’S ACCESSORY ORDER LINE AT 1-800-332-5368 [6 AM-6 PM M-F, PACIFIC TIME] MAIL THIS ORDER TO: PANASONIC SERVICE AND TECHNOLOGY COMPANY ACCESSORY ORDER OFFICE 20421 84th Avenue South Kent, WA. 98032 VQT2B45 (ENG) -
Page 29: Request For Service Notice
Reason for requesting service: (USA and Puerto Rico Only) Mail this completed form and your Proof of Purchase along with your unit to: Panasonic Services Company Customer Servicenter Suite B 4900 George McVay Drive... -
Page 30: Limited Warranty
If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer Electronics Company (referred to as “the warrantor”) will, for the length of the period indicated on the chart below, which starts with the date of original purchase (“warranty period”), at its option either (a) repair your product with new or... - Page 31 Carry-In or Mail-In Service For Carry-In or Mail-In Service in the United States and Puerto Rico call 1-800-211-PANA (7262). This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-...
-
Page 32: Customer Services Directory
Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST For hearing or speech impaired TTY users, TTY :1-877-833-8855 Accessory Purchases (United States and Puerto Rico) Purchase Parts, Accessories and Instruction Books online for all Panasonic Products by visiting our Web Site at: http://www.pstc.panasonic.com or, send your request by E-mail to: npcparts@us.panasonic.com... - Page 33 (ENG) VQT2B45...
- Page 34 QuickTime and the QuickTime logo are trademarks or registered trademarks of Apple Inc., used under license therefrom. Panasonic Consumer Electronics Company, Division of Panasonic Corporation of North America One Panasonic Way, Secaucus, NJ 07094 © Panasonic Corporation 2009 Printed in China...
