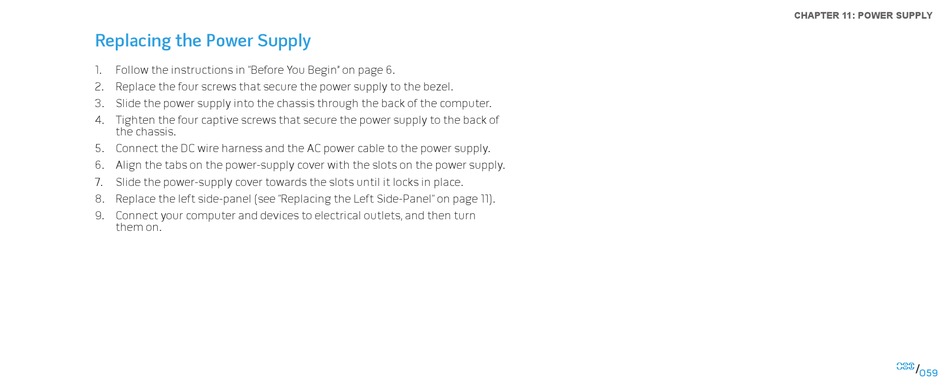

Replacing the Power Supply

1. Follow the instructions in "Before You Begin" on page
2. Replace the four screws that secure the power supply to the bezel.
3. Slide the power supply into the chassis through the back of the computer.
4. Tighten the four captive screws that secure the power supply to the back of
the chassis.
5. Connect the DC wire harness and the AC power cable to the power supply.
6. Align the tabs on the power-supply cover with the slots on the power supply.
7. Slide the power-supply cover towards the slots until it locks in place.
8. Replace the left side-panel (see "Replacing the Left Side-Panel" on page
9. Connect your computer and devices to electrical outlets, and then turn
them on.
6.
11).
CHAPTER 11: POWER SUPPLY
