- Page 1 ACOUSTIMAX User Manual...
- Page 2 IMPORTANT SAFEGUARDS For your protection, please read these safety instructions completely before oper- ating the appliance, and keep this manual for future reference. Carefully observe all warnings, precautions and instructions on the appliance and described in the operating instructions supplied with the appliance. INSTALLATION Any mounting of the product should follow the manufacturer’s holds the power cord plug firmly and securely.
-
Page 3: Table Of Contents
IMPORTANT Acoustimax Preamp Pedal! Before you begin, please check the contents within this With the introduction of the Acoustimax, we are now box to insure that included are: able to offer a state-of-the-art instrument preamp 1. The BBE Acoustimax Preamp Pedal. -
Page 4: Bbe Process Explained
However, phase and amplitude BBE Sound, Inc. conducted extensive studies of numer- integrity is essential to accurate sound reproduction. ous speaker systems over a ten year period. With this... -
Page 5: Controls And Connections

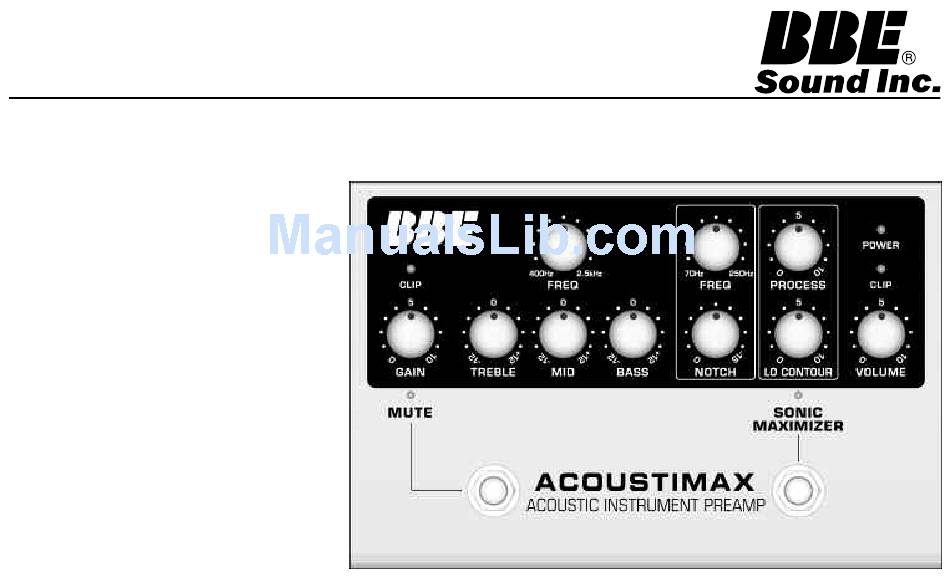

CONTROLS AND CONNECTORS MID EQ FREQUENCY SELECTOR Continuously variable from 400Hz to 2.5kHz. CLIP INDICATOR Indicates input over- load. There is 3dB of headroom left when MID EQ LEVEL CONTROL this is illuminated. 12 dB of boost or cut at the selected frequency. - Page 6 CONTROLS AND CONNECTORS PROCESS CONTROL NOTCH FILTER Regulates the amount of FREQUENCY SELECTOR phase correction. Continuously variable from 70Hz to 250Hz. CLIP INDICATOR Indicates output clipping. There is 3dB of headroom NOTCH FILTER CONTROL when LED is illuminated. Adjusts amount of attenuation at the selected notch frequency.
- Page 7 CONTROLS AND CONNECTORS/REAR PANEL DI OUT LINE OUT EFX LOOP TUNER OUT Balanced, transformer- AC INLET 1kOhm line Tip, ring, sleeve less active mic-level Connect to the level output. Use supplied (TRS) configuration. direct output. input of your tuner. 12VAC power Tip is send, XLR Pin configuration: Always active even...
-
Page 8: Service/Maintenance
As the repair turnaround time is minimal, we request that which requires service be sent to our facility in Huntington the unit be sent to BBE Sound, Inc. We also need to add Beach, California. We request that a “RETURN AUTHO- reliability data to our files so that future revision may be RIZATION”... -
Page 9: Warranty
WARRANTY Warranty registration of the unit to BBE Sound, Inc. is not This warranty will be consider null and void by BBE Sound, necessary. It is strongly recommended that you retain a Inc. if any of the following is found: copy of the bill of sale for future reference. -
Page 10: Specifications
SPECIFICATIONS Frequency Response: ……………………………………………………50Hz ~ 20kHz Treble: ……………………………………………………………………+/-12dB @ 10kHz Mid: ……………………………………………………………………+/-12dB @ 400Hz ~ 2.5kHz Bass: ……………………………………………………………………+/-12dB @ 60Hz Notch: ……………………………………………………………………0 to -12dB @ 70Hz ~ 250kHz BBE: Lo Contour ……………………………………………………+15dB @ 50Hz Process …………………………………………………………+15dB @ 10kHz Noise: Instrument Jack ………………………………………………-98dBu (unity gain) Line Out ………………………………………………………-88dBu (+10dB gain) Max Output ………………………………………………………………+10dBu @ Instrument Jack THD:... - Page 11 5381 Production Drive Huntington Beach, CA 92649 714-897-6766 • FAX 714-896-0736 www.bbesound.com covered by U.S. Patent 5,736,897 and other U.S. and foreign patents pending. BBE is the registered trademark of BBE Sound, Inc. rev3 9/2010...
