Summary of Contents for Asus VH203D

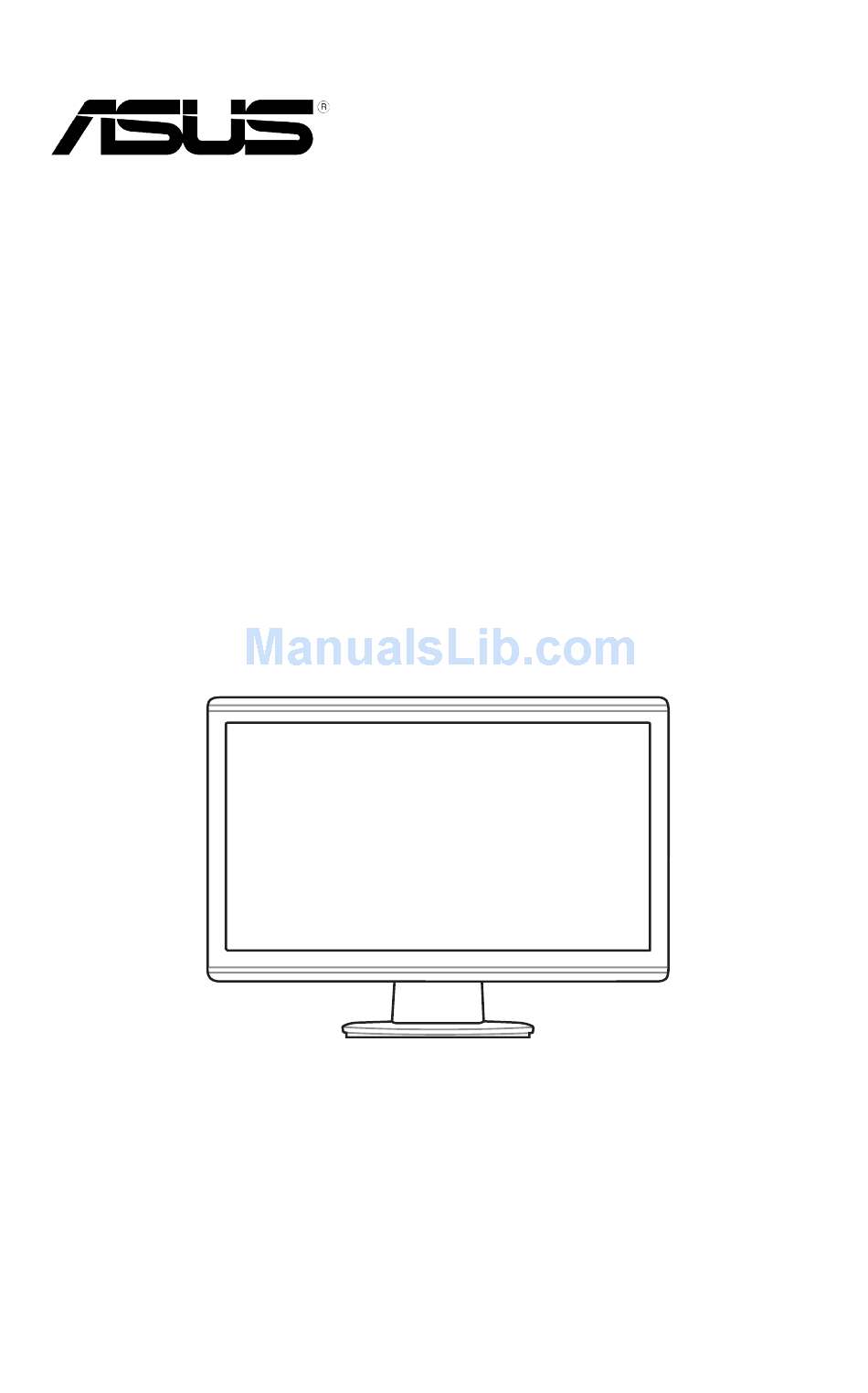

- Page 1 VH203 Series LCD Monitor User Guide...
-
Page 2: Table Of Contents
Contents Notices ......................iii Safety information ..................iv Care & Cleaning ................... v Chapter 1: Product introduction Welcome! ..................1-1 Package contents ................. 1-1 Monitor introduction ..............1-2 1.3.1 Front view ............... 1-2 1.3.2 Back view ................ 1-3 Chapter 2: Setup Assembling the monitor base ............. -
Page 3: Notices
Notices Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer’s instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance with FCC regulations. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. As an Energy Star Partner, our company has determined that this product meets ® the Energy Star guidelines for energy efficiency. -
Page 4: Safety Information
Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury. • If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer. • Before using the product, make sure all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately. • Slots and openings on the back or top of the cabinet are provided for ventilation. Do not block these slots. Never place this product near or over a radiator or heat source unless proper ventilation is provided. • The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supply to your home, consult your dealer or local power company. • Use the appropriate power plug which complies with your local power standard. • Do not overload power strips and extention cords. Overloading can result in fire or electric shock. • Avoid dust, humidity, and temperature extremes. Do not place the monitor in any area where it may become wet. Place the monitor on a stable surface. • Unplug the unit during a lightning storm or if it will not be used for a long period of time. This will protect the monitor from damage due to power surges. • Never push objects or spill liquid of any kind into the slots on the monitor cabinet. • To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate configured receptacles marked between 100-240V AC. -
Page 5: Care & Cleaning
Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord. • Cleaning. Turn your monitor off and unplug the power cord. Clean the monitor surface with a lint-free, non-abrasive cloth. Stubborn stains may be removed with a cloth dampened with mild cleaner. • Avoid using a cleaner containing alcohol or acetone. Use a cleaner intended for use with the LCD. Never spray cleaner directly on the screen, as it may drip inside the monitor and cause an electric shock. The following symptoms are normal with the monitor: • The screen may flicker during the initial use due to the nature of the fluorescent light. Turn off the Power Switch and turn it on again to make sure that the flicker disappears. • You may find slightly uneven brightness on the screen depending on the desktop pattern you use. • When the same image is displayed for hours, an afterimage of the previous screen may remain after switching the image. The screen will recover slowly or you can turn off the Power Switch for hours. • When the screen becomes black or flashes, or cannot work anymore, contact your dealer or service center to fix it. Do not repair the screen by yourself! Conventions used in this guide WARNING: Information to prevent injury to yourself when trying to complete a task. - Page 6 Where to find more information Refer to the following sources for additional information and for product and software updates. ASUS websites The ASUS websites worldwide provide updated information on ASUS hardware and software products. Refer to http://www.asus.com Optional documentation Your product package may include optional documentation that may have been added by your dealer. These documents are not part of the standard package.
-
Page 7: Welcome
Welcome! ® Thank you for purchasing the ASUS VH203 Series LCD monitor! The latest widescreen LCD monitor from ASUS provides a crisper, broader, and brighter display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual experience that the VH203 Series brings you! Package contents Check your package for the following items: LCD monitor Quick start guide 1 x Power cord 1 x VGA cable 1 x DVI cable (VH203T/VH203N only) 1 x Audio cable (VH203T/VH203S only) If any of the above items is damaged or missing, contact your retailer immediately. -
Page 8: Monitor Introduction
Monitor introduction 1.3.1 Front view Base (VH203T/S) (VH203N/D) Button: • Use this hotkey to switch from five video preset modes (Game Mode, Night View Mode, Scenery Mode, Standard Mode, Theater Mode) with SPLENDID™ Video Enhancement Technology. • Exit the OSD menu or go back to the previous menu as the OSD menu is active. Button: (For those models with speakers) • Press this button to increase the value of the function selected or move right/up to the previous function. • This is also a hotkey for Volume adjustment. Button: (For those models without speakers) • Press this button to increase the value of the function selected or move right/up to the previous function. • This is also a hotkey for Contrast adjustment. MENU Button: •... -
Page 9: Back View
Screw holes for VESA Wall Mount AUDIO-IN Rear connectors Rear connectors Audio-in port . This port connects PC audio source by the bundled audio cable. (VH203T/VH203S only) AC-IN port . This port connects the power connector by the bundled power cord. DVI port . This 24-pin port is for PC (Personal Computer) DVI-D digital signal connection. (VH203T/VH203N only) VGA port . This 15-pin port is for PC VGA connection. The VESA wall mount kit (100 mm x 100 mm) is purchased separately. ASUS VH203 Series LCD Monitor... - Page 10 Chapter 1: Product introduction...
-
Page 11: Assembling The Monitor Base
Assembling the monitor base To assemble the monitor base: Have the front of the monitor face down on a table. Connect the base with the arm according to the below drawing. A click shows that the base has been connected successfully. We recommend that you cover the table surface with soft cloth to prevent damage to the monitor. Adjusting the monitor • F or optimal viewing, we recommend that you look at the full face of the monitor, then adjust the monitor to the angle that is most comfortable for you. • H old the stand to prevent the monitor from falling when you change its angle. • Y ou can adjust the monitor’s angle from -5˚ to 20˚. -5˚~20˚ It is normal that the monitor slightly shakes while you adjust the the viewing angle. ASUS VH203 Series LCD Monitor... -
Page 12: Detaching The Arm/Base (For Vesa Wall Mount)
Detaching the arm/base (for VESA wall mount) The detachable arm/base of this LCD monitor is specially designed for VESA wall mount. To detach the arm/base: Have the front of the monitor face down on a table. Remove the rubbers in the four screw holes (Figure 1). Use a screwdriver to remove the two screws on the arm (Figure 1), then slide out the arm/base to detach it from the monitor (Figure 2). Rubbers in the screw holes AUDIO-IN Two screws Arm/base Figure 1 Figure 2 We recommend that you cover the table surface with soft cloth to prevent damage to the monitor. Chapter 2: Setup... -
Page 13: Connecting The Cables
To connect the audio cable : connect one end of the audio cable to the monitor’s Audio-in port, the other end to the computer's audio-out port. • To connect the power cord : connect one end of the power cord securely to the monitor’s AC input port, the other end to a power outlet. • To connect the VGA/DVI cable Plug the VGA/DVI connector to the LCD monitor’s VGA/DVI port. Connect the other end of the VGA/DVI cable to your computer's VGA/ DVI. Tighten the two screws to secure the VGA/DVI connector. When both VGA and DVI cables are connected, you can choose either VGA mode or DVI mode from the Input Select item of OSD functions. Gather all the cables with the cable management slot. AUDIO-IN Cable management slot Turning on the monitor Gently press the power button . See page 1-2 for the location of the power button. The power indicator lights up in blue to show that the monitor is ON. ASUS VH203 Series LCD Monitor... - Page 14 Chapter 2: Setup...
-
Page 15: Osd (On-Screen Display) Menu
OSD Function Introduction Spendid This function contains five sub-functions you can select for your preference. Each mode has the Reset selection, allowing you to maintain your setting or return to the preset mode. • Scenery Mode : best choice for scenery photo display with SPLENDID™ Video Enhancement. • Standard Mode : best choice for document editing with SPLENDID™ Video Enhancement. • Theater Mode : best choice for movie with SPLENDID™ Video Enhancement. • Game Mode : best choice for game playing with SPLENDID™ Video Enhancement. • Night View Mode : best choice for dark-scene game or movie with SPLENDID™ Video Enhancement. • In the Standard Mode, the ASCR, Saturation, and Sharpness functions are not user-configurable. • Except in the Standard Mode, the sRGB function is not user-configurable. ASUS VH203 Series LCD Monitor... - Page 16 Image You can adjust brightness, contrast, ASCR, sharpness, saturation, position (VGA only), and focus (VGA only) from this menu. • Brightness : the adjusting range is from 0 to 100. is a hotkey to activate this function. • Contrast : the adjusting range is from 0 to 100. is a hotkey to activate this function. (For those models without speakers) • ASCR : turns on/off the ASCR (ASUS Smart Contrast Ratio) function. • Sharpness : the adjusting range is from 0 to 100. • Saturation : the adjusting range is from 0 to 100. • Position : adjusts the horizontal postition (H-Position) and the vertical position (V-Position) of the image. The adjusting range is from 0 to 100. • Focus : reduces Horizonal-line noise and Vertical-line noise of the image by adjusting (Phase) and (Clock) separately. The adjusting range is from 0 to 100. • Phase adjusts the phase of the pixel clock signal. With a wrong phase adjustment, the screen shows horizontal disturbances. • Clock (pixel frequency) controls the number of pixels scanned by one horizontal sweep. If the frequency is not correct, the screen shows vertical stripes and the image is not proportional. Color Select the image color you like from this function.
- Page 17 Input Select In this function, you can select your desired input source. (VH203T/VH203N) System Setup Allow you to adjust the system. • Volume : the adjusting range is from 0 to 100. is a hotkey to activate this function. (For those models with speakers) • Aspect Control : adjusts the aspect ratio to “Full” or “4:3”. • OSD Setup Adjusts the horizontal postition (H-Position)/the vertical position (V-Position) of the OSD from 0 to 100. Adjusts the OSD timeout from 10 to 120. Enables or disables the DDC/CI function. • Language : there are eleven languages for your selection, including English, German, Italian, French, Dutch, Spanish, Russian, Traditional Chinese, Simplified Chinese, Japanese, and Korean. • Information : shows the monitor information. • All Reset : “Yes” allows you to restore the default setting. ASUS VH203 Series LCD Monitor...
-
Page 18: Specifications Summary
3.2 Specifications summary (VH203T) Panel type TFT LCD Panel size 20" (16:9) wide screen Max. resolution 1600 x 900 Pixel pitch 0.2768 mm Brightness (Typ.) 250 cd/m Brightness (Max.) 300 cd/m Contrast ratio (Typ.) 1000:1 Contrast ratio (Max.) 10000:1 (with ASCR on) Viewing angle(H/V) CR>10 160˚/160˚ Display colors 16.7 M Response time 5 ms SPLENDID™ Video Enhancement SPLENDID™... - Page 19 Kensington lock Voltage rating AC: 100~240V Power consumption Power On : < 50 W, Standby: < 1 W, Power Off: < 1 W Temperature (Operating) 0˚C~40˚C Temperature -20˚C~+60˚C (Non-operating) Dimension (W x H x D) 486.61 mm x 317.45 mm x 214.97 mm (machine) 551 mm x 458 mm x 132 mm (package) Weight (Esti.) 4.2 kg (Net) ; 5.8 kg (Gross) Multi-languages 11 languages (English, German, Italian, French, Dutch, Spanish, Russian, Traditional Chinese, Simplified Chinese, Japanese, Korean) Accessories VGA cable, audio cable, power cord, quick start guide, warranty card Regulation approvals Energy Star , CB, CE, Gost-R, CCC, UL/cUL, FCC, ® C-Tick, BSMI, VCCI, RoHS, WEEE, PSB, J-MOSS, EK, Windows Vista WHQL *Specifications are subject to change without notice. ASUS VH203 Series LCD Monitor...
- Page 20 Specifications summary (VH203N) Panel type TFT LCD Panel size 20" (16:9) wide screen Max. resolution 1600 x 900 Pixel pitch 0.2768 mm Brightness (Typ.) 250 cd/m Brightness (Max.) 300 cd/m Contrast ratio (Typ.) 1000:1 Contrast ratio (Max.) 10000:1 (with ASCR on) Viewing angle(H/V) CR>10 160˚/160˚ Display colors 16.7 M Response time 5 ms SPLENDID™ Video Enhancement SPLENDID™...
- Page 21 Specifications summary (VH203D) Panel type TFT LCD Panel size 20" (16:9) wide screen Max. resolution 1600 x 900 Pixel pitch 0.2768 mm Brightness (Typ.) 250 cd/m Brightness (Max.) 300 cd/m Contrast ratio (Typ.) 1000:1 Contrast ratio (Max.) 10000:1 (with ASCR on) Viewing angle(H/V) CR>10 160˚/160˚ Display colors 16.7 M Response time 5 ms SPLENDID™ Video Enhancement SPLENDID™...
-
Page 22: Troubleshooting (Faq)
Troubleshooting (FAQ) Problem Possible Solution Power LED is not ON • Press the button to check if the monitor is in the ON mode. • Check if the power cord is properly connected to the monitor and the power outlet. The power LED lights amber and there is • Check if the monitor and the computer are no screen image in the ON mode. • Make sure the signal cable is properly connected the monitor and the computer. • Inspect the signal cable and make sure none of the pins are bent. • Connect the computer with another available monitor to check if the computer is properly working. Screen image is too light or dark • Adjust the Contrast and Brightness settings via OSD. Screen image is not centered or sized • Press the button for two seconds to properly automatically adjust the image. (for VGA mode only) •... -
Page 23: Supported Operating Modes
108.00 1280 x 1024 79.98 75.02 135.00 1366 x 768 47.712 59.79 85.50 1600 x 900 55.54 59.978 97.75 * Modes not listed in the table may not be supported. For optimal resolution, we recommend that you choose a mode listed in the table above. ASUS VH203 Series LCD Monitor... - Page 24 3-10 Chapter 3: General Instruction...
