Enable the debugger for the desired boot entry:

C:\>bcdedit /debug

{identifier_of_boot_entry_targeted_for_kernel_debugging} ON

Once again, for a complete description this tool, refer to the Microsoft documentation found

here:

http://technet.microsoft.com/en-us/library/cc709667(WS.10).aspx

rx1620 server

Connect the cable between the laptop (host) and the rx1620 server (target) using the 5x2-to-DB9M

converter as shown in the following image.

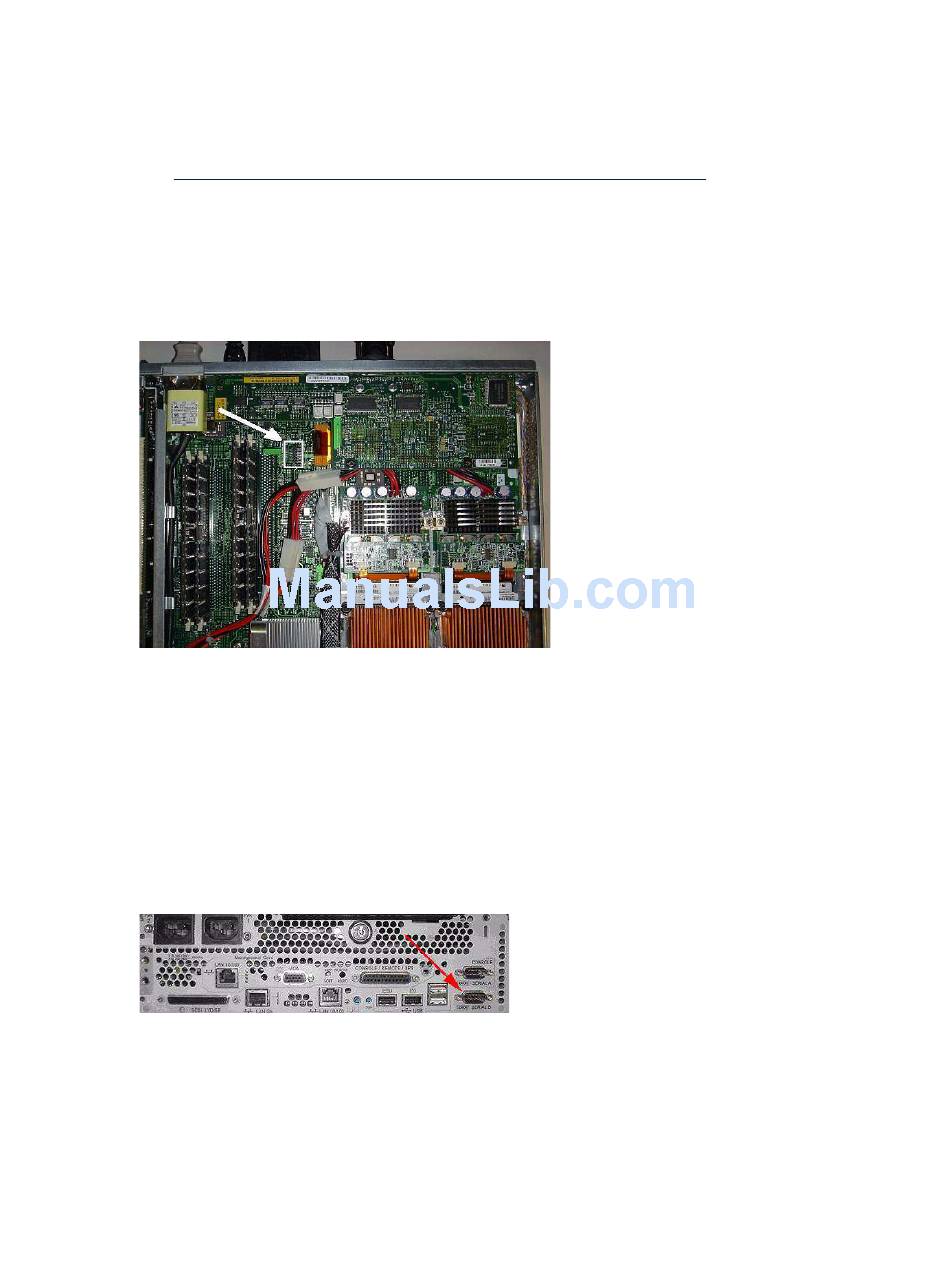

Figure 1-3 rx1620 debugging port

When you face the front of the server, the first pin (#1) is located in the lower right corner of the

rectangle shown in the previous image. It is also indicated directly on the board with a small

white circle or a similar mark.

For rx2600 and rx2620, connect the serial port on the laptop or workstation to the DB9 port in

the back of the server using a standard DB9 female-terminated RS-232 null modem cable. The

following image shows the location of the DB9 port.

Figure 1-4 rx2600 and rx2620 debugging port

For rx2660 servers, connect the serial port on the laptop or workstation to the DB9 port marked

"Auxiliary", located on the back of the server, using a standard DB9 female-terminated RS-232

null modem cable. The following image shows the location of the DB9 port.

Setting up and connecting to the target machine
