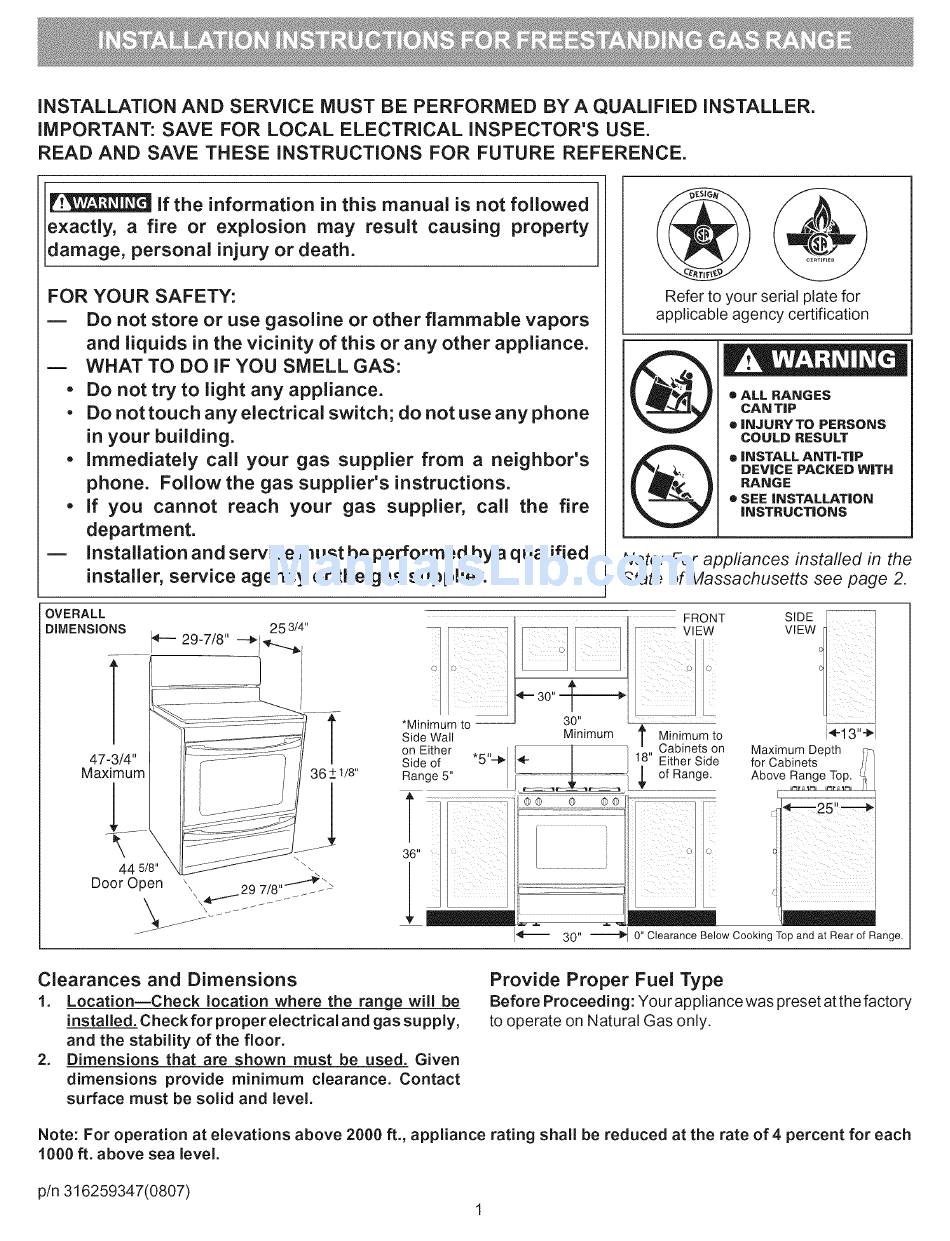

Use and Care Manual
iNSTALLATiON
AND SERVICE
MUST BE PERFORMED
BY A QUALiFiED
iNSTALLER.
iMPORTANT:
SAVE FOR LOCAL
ELECTRICAL
INSPECTOR'S
USE.
READ AND SAVE THESE
iNSTRUCTiONS
FOR FUTURE
REFERENCE.
if the information
in this manual
is not followed
exactly,
a fire
or explosion
may
result
causing
property
damage,
personal
injury or death.
FOR YOUR SAFETY:
=
Do not store or use gasoline
or other flammable
vapors
and liquids in the vicinity
of this or any other appliance.
=
WHAT TO DO iF YOU SMELL GAS:
• Do not try to light any appliance.
• Do nottouch
any electrical
switch;
do not use any phone
in your building.
• Immediately
call your gas supplier
from a neighbor's
phone.
Follow the gas supplier's
instructions.
• if you
cannot
reach
your gas
supplier,
call the fire
department.
=
Installation
and service must be performed
by a qualified
installer, service
agency
or the gas supplier.
Refer to your serial plate for
applicable agency certification
• ALL RANGES
CAN TiP
• INJURYTO
PERSONS
COULD
RESULT
• iNSTALL
ANTI=TIP
DEVICE
PACKED
WiTH
RANGE
• SEE iNSTALLATiON
iNSTRUCTiONS
Note: For appliances
installed
in the
State of Massachusetts
see page 2.
OVERALL
DiMENSiONS
FRONT
47-3/4"
Side of
"5"-_
Maximum
36 =+ 1/8"
Range 5"
_1-== 30,, _
*Minimum to --
30"
Side Wall
Minimum
t
Minimum to
1÷13"-_1
li
Cabinets on
Maximum Depth
on Either
_
" Either Side
for Cabinets
of Range.
Above Range Top.
_---25"_
30"
----_1
0" Clearance Below Cooking Top and at Rear of Range,
Clearances
and Dimensions
1.
Location--Check
location
where the range will be
installed. Check for proper electrical and gas supply,
and the stability
of the floor.
2.
Dimensions
that are shown
must be used. Given
dimensions
provide
minimum
clearance.
Contact
surface
must be solid and level.
Provide Proper Fuel Type
Before Proceeding: Your appliance was preset at the factory
to operate on Natural Gas only.
Note: For operation
at elevations
above 2000 ft., appliance
rating shall be reduced at the rate of 4 percent for each
1000 ft. above sea level.
p/n 316259347(0807)
1
