2006 Volvo S60
Introduction
Welcome to the world-wide family of Volvo owners. We trust that you will enjoy many years of safe driving
in your Volvo, an automobile designed with your safety and comfort in mind. To help ensure your
satisfaction with this vehicle, we encourage you to familiarize yourself with the equipment descriptions,
operating instructions and maintenance requirements/recommendations in this manual. We also urge you and
your passengers to wear seat belts at all times in this (or any other) automobile. And, of course, please do not
operate a vehicle if you may be affected by alcohol, medication or any impairment that could hinder your
ability to drive.
Your Volvo is designed to meet all applicable safety and emission standards, as evidenced by the certification
labels attached to the driver's door opening and on the left wheel housing in the engine compartment.
For further information please contact your retailer, or:
In the USA:
Volvo Cars of North America
file:///K|/ownersdocs/2006/2006_S60/06s60_00.htm (1 of 8)12/30/2006 4:47:05 PM

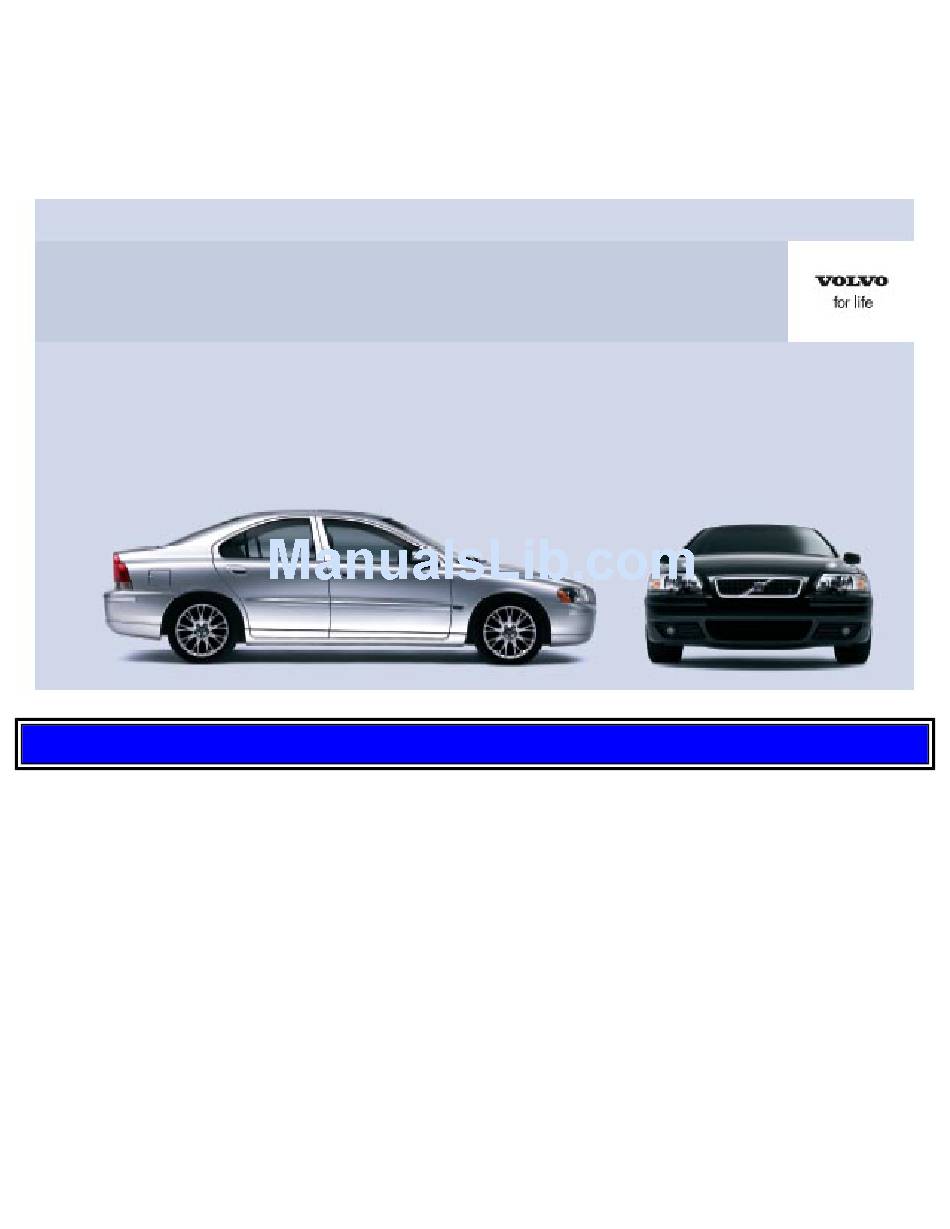

2 0 0 6
VOLVO
S60
