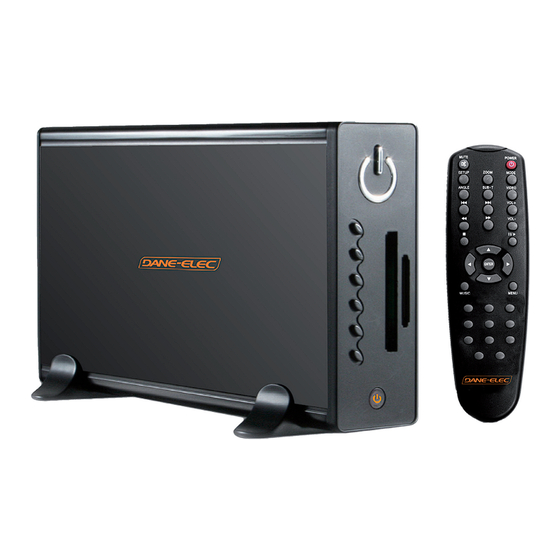

DANE-ELEC SO SPEAKY Manual

Hide thumbs Also See for SO SPEAKY:
Table of Contents

Advertisement

Quick Links

See also: User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SO SPEAKY and is the answer not in the manual?

Questions and answers

Related Manuals for DANE-ELEC SO SPEAKY

Summary of Contents for DANE-ELEC SO SPEAKY

  • Page 2: Table Of Contents

    1. NOTICES ........................3 2. CAUTION:........................4 3. PRODUCT PERFORMANCES..................4 4. ACCESSORIES ......................7 5. PRODUCT USAGE.....................10 6. SYSTEM SETUP ......................18 7. APPENDIX........................18 - 2 -...

  • Page 3: Notices

    Many thanks for choosing this product. For your better usage of this product, please read this User Manual carefully first regarding points for attention and product operation and functions. National patent has been registered for this product described here. Any imitation will be regarded as pirate, and should assume legal liability accordingly.

  • Page 4: Caution

    3. Product Performances 3.1 Feature: 1. The So Speaky can work with big capacity of hard drive for huge storage of movies, music and pictures. 2. The So Speaky support multi popular memory cards.
  • Page 5 7. The So Speaky support DVD wide-screen video display on a wide-screen TV, support multi-angle and multi-language function. 8. The So Speaky can display lyrics and be output sound signal at the same time under playing the song files of MP3 and WMA format.(Support music LRC file format) 9.
  • Page 6 3.2 Specification HD capacity supported: up to 500GB. Max HD partition: 4 primary partitions HD files system:FAT32 Media files supported: 1.Subtitle: SRT,SSA,SMI 2.Audio: MP3 ,WMA,AAC,DTS 3.Video:MPEG1/2/MPEG4.XVID.DIVX.VCD.DVD(*.mpg;*.mpeg;*.dat;*.avi;*.vob;*.ifo) 4. Image: JPEG,MJPEG Memory cards supported: CF.SD.MS. MMC.XD in FAT32 or FAT16 format (important notice: the memory card reader slots on the machine only for media input function, not for computer card reader function, so when Media player connected to PC as a USB hard disk, then card reader slots are out of function).

  • Page 7: Accessories

    4. Accessories Name Quantity So Speaky 1 pc Power Adapter 1 pc Remote Controller 1 pc AV cable 1 pc Progressive scan component video cable 1 pc USB cable 1 pc Quick Start Guide 1 pc CD So Util 1 pc...
  • Page 8 ANGLE Rotation the images. Select to view the same scene from different angle, if the DVD recorded with multiple angles. SUB-T Selection key for MPEG4 Subtitle file. it activates and deactivates the subtitles while video playing. Can use the up button or down button to select a subtitle language that is available on the DVD.
  • Page 9 Pause/play. Previous. Next. Skip backward. Skip forward. VOL+ Increase the volume. VOL- Decrease the volume. REPEAT Change Repeat play mode. INTERVAL TIME Change the transition time between pictures when SlideShow. SLIDE SHOW Plays pictures in continuous mode. One Touch Backup ---Backup the data of memory card into the hard driver directly.

  • Page 10: Product Usage

    1. You want to use AV(CVBS) mode: press INPUT CHOICE key of the TV, and turn to AV INPUT MODE. If image cannot appear, press VIDEO key of the So Speaky remote controller and wait for a few seconds than press again, until it turns to CVBS mode, then menu will appear on TV.
  • Page 11 2. You want to use YPbPr output mode: choose YPbPr as input mode for TV. Press VIDEO key of So Speaky remote controller to choose YPbPr OUT mode, and menu will appear on TV. (Progressive scan component video)YPbPr OUTPUT MODE...
  • Page 12 Mode of VGA Output 3. When connecting with TV and preparing to use VGA out put: choose the VGA model ,then press the video KEY on remote controller to switch the VGA Mode, then menu will shown on TV. 4. When connecting to VGA monitor and preparing to use VGA output mode, please press the video key to switch the VGA out mode, then menu will be shown on monitor.
  • Page 13 5.2 Usage of Memory card After plug in the move memory card, a menu listed all of storage equipment is displayed. Press KEY, you could choose the storage equipment. If press the ENTER KEY, you could enter to the main menu of it. Note: When insert memory card should be in the stop playback mode, please! 5.3 Operation The main menu of storage equipment: when there are two or more partitions in So...
  • Page 14 5.4 Picture Playing Select PHOTO icon on main menu, press the ENTER key into the picture browse mode, If press the direction key, you could choose the picture, if you press ENTER key, it will begin to play normally. 5.5. Music playing: Select music icon on main menu, and press ENTER Key to enter music library, Press direction key to select music, and press ENTER Key to enter music EQ and Begin playing.
  • Page 15 To connect the So Speaky with computer by USB cable. Then you can see the contents in hard driver of the player from computer. b. Make a folder in the hard driver of the unit. .example: on E disk build e:\car folder.
  • Page 16 Files delete: select the target files and press RIGHT direction key and ENTER key to enter the command dialog box. Then choose DELETE to delete the file. 5.8. Keys on the So Speaky Front Panel User can press STOP/RETURN key, and wait for several seconds to return main menu.
  • Page 17 For the first time to use this product to back up or access data, computers which are under old operation system should be installed driver. b. For the first usage, power on So Speaky and connect it to computer through USB cable. The installation process will be initialized on computer. After that the icon of green arrow will appear right below on the system tray.

  • Page 18: System Setup

    2. Movie setup ->set up some function and parameter for playing movies 3. Slideshow setup->set up some function and parameter for playing lantern slide 4. Preferences setup ->set up some function and parameter of So Speaky. TV type: MULTI-SYSTEM After pitch on this option, the output system will be according to the program source.
  • Page 19 video output 1. composite video output(CVBS),TV system NTSC/PAL 2.VGA output 3. progressive scan component Video output bus interface USB2.0 interface supported memory cards CF, MS, SD, MMC.XD Physics parameter： outline dimension 205mm Χ 112mm Χ 40mm Product material Aluminum Product certificate specification： √...
