FUTABA G190 Instruction Manual

Rate Gyro for Small Electric
Powered Helicopters
I
I
NSTRUCTION
NSTRUCTION
Thank you for purchasing a G190 gyro, a rate gyro for small electric powered helicopters. G190 is a
small and light-weight gyro with high-performance, employing small size piezoelectric sensor of little
temperature drift. In addition, the G190 unit is well deigned as any side of its case can be used for easy
and stable mounting.
Features of G190
Small piezoelectric sensor
G190, utilizing a small piezoelectric sensor of little temperature drift, has achieved a very stable
performance.
Small, light-weight and all-in-one
Our high-density assembly technology has made it possible for G190 to become very small
(22.2x22.8x8.9mm, excluding protrutions) and light-weight (6.7g).
Newly designed case capable of using any side of the case for mounting
The newly designed case, any side of which can be used for mounting, is very small and highly
flexible for being correctly positioned and correctly oriented on the limited space of a small-size
electric powered helicopter. Consequently G190 can maximize its gyro performance.
Applicable to the micro servo S3108
Combination of G190 and S3108 micro servo would further reduce the total weight.
Special Markings;
Pay special attention to the
safety at the parts of this
manual that are indicated
by the following marks.
Symbol: ; Prohibited
; Mandatory
Before using your new gyro,
please read this manual thor-
oughly and use the gyro prop-
erly and safely. After reading
this manual, store it in a safe
place.
• No part of this manual may be
reproduced in any form without
prior permission.
• The contents of this manual are
subject to change without prior
notice.
• This manual has been carefully
written. Please write to Futaba if
you feel that any corrections or
clarifi cations should be made.
M
M
ANUAL
ANUAL
Mark Meaning
Procedures which may lead to a dangerous
condition and cause death or serious injury to
the user if not carried out properly.
Procedures which may lead to a dangerous
condition or cause death or serious injury to
the user if not carried out properly, or
procedures where the probability of superficial
injury or physical damage is high.
Procedures where the possibility of serious
injury to the user is small, but there is a
danger of injury, or physical damage, if not
carried out properly.

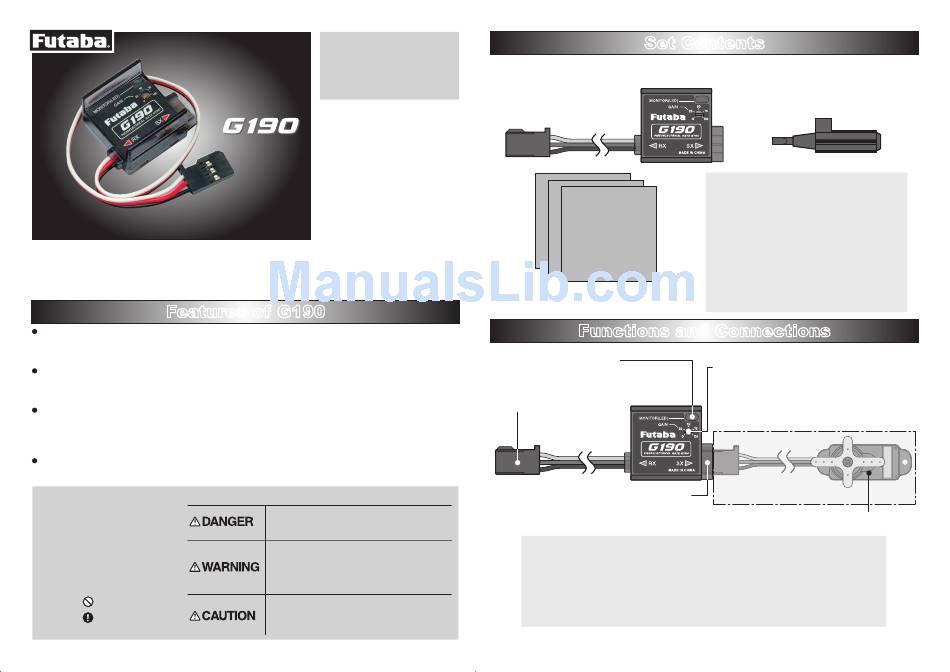

Set Contents
The G190 comes with the following accessories:
G190
Double-sided tape
(3 sheets)
Functions and Connections
LED monitor
Rudder input connector
Connects to the receiver rudder
channel output connector.
Rudder servo connector
Connects the rudder servo.
LED monitor:
• Quick Blinking: The LED continues blinking quickly as the initialization of the G190 au-
tomatically starts immediately after the power is turned on.
• Always On: As soon as the initialization is completed, the LED turns on continuously
and G190 is ready for operation.
• Slow Blinking (about 1Hz): If the G190 receives any abnormal signal from the receiver,
the LED starts slow blinking.
1M23N15502
Mini screwdriver
(for adjustments)
G190 Ratings:
(Integrated sensor type rate gyro)
• Gyro sensor: piezoelectric sensor
• Operating voltage: 4.8 to 6.0VDC
• Current drain: 15mA at 4.8V
• Operating temperature range: -5 to +45ºC
• Dimensions: 22.2 x 22.8 x 8.9mm (except pro-
trusion)
• Weight: 6.7g (including connector)
• Functions: Sensitivity trimmer and LED monitor
Gyro sensitivity trimmer (GAIN)
Gyro sensitivity setting trimmer. Set to the
maximum value at which the tail does not hunt
(minute vibration).
Rudder servo
