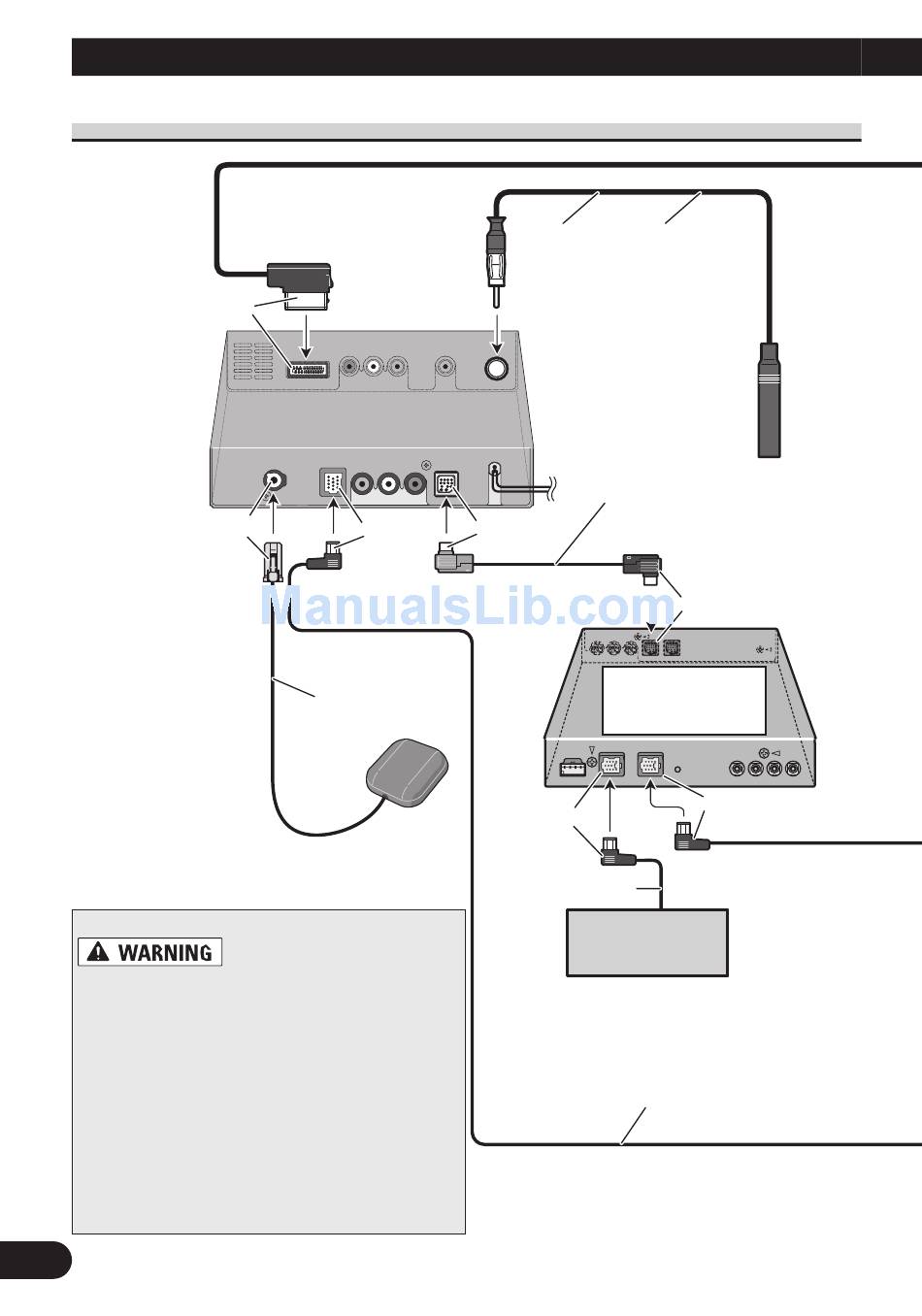

Connecting the System
Connecting the system
Yellow
When installing
the Hide-away unit
in the trunk, etc.,
the extension cable
(e.g. CD-SC300E)
(sold separately)
is required.
Light gray
• To avoid the risk of accident and the potential
violation of applicable laws, this unit should
never be used while the vehicle is being driven
except for Navigation purposes. And, also
Rear Displays should not be in a location
where it is a visible distraction to the driver.
• In some countries or states the viewing of
images on a display inside a vehicle even by
persons other than the driver may be illegal.
Where such regulations apply they must be
obeyed and this unit's DVD or TV features
should not be used.
7
Hide-away unit
*2 *2 *2
Blue
5 m (16 ft. 5 in.)
GPS antenna
Extension 3 m (9 ft. 10 in.)
antenna cable
(supplied)
AV-BUS cable
(supplied with
TV tuner)
Blue
Hide-away TV tuner
(e.g. GEX-P6400TV)
(sold separately)
Blue
IP-BUS cable
Multi-CD player
(sold separately)
IP-BUS cable
(supplied with XM tuner)
Black
Black
