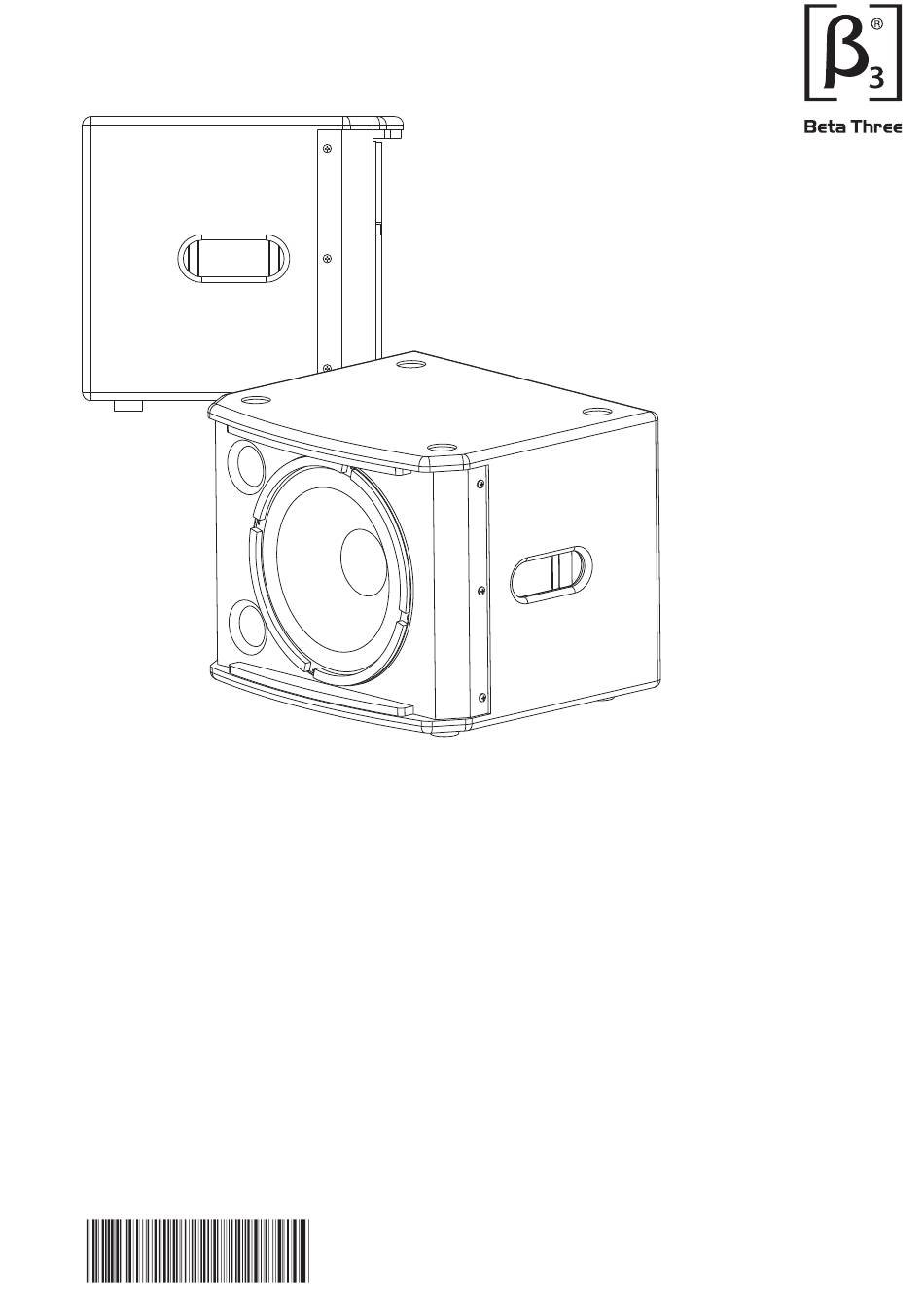

- Page 1 EB110A 10" Active Subwoofer User Manual U M- E B 1 1 0 A - 2 0 1 1 0 3 2 1 v e r A...
- Page 2 SAFETY INSTRUCTIONS PLEASE READ THIS MANUAL FIRST Thank you for buying product. Read this manual first as it will help you to operate the system properly. Please keep this manual for future reference. WARNING: This product must be installed by professionals. When using hanging brackets or rigging other than those supplied with the product, please ensure they comply with the local safety codes.
- Page 3 EB110A CONTENT 10" Active Subwoofer CONTENT INTRODUCTION Features Applications AMPLIFIER MODULE Rear Panel INSTALLATION Installation Reference TECHNICAL SPECIFICATION Technical Sheet Frequency Response And Impedance Curve 2D Dimension Product information may be updated without notification, please visit www.elderaudio.com for latest update.
- Page 4 EB110A INTRODUCTION 10" Active Subwoofer EB110A 10" active subwoofer Features Single 10" active phase inverted subwoofer Built-in 250W/8ohm power amplifier One XLR input Powder coated grille High-cut can be available at 250Hz or 120Hz Advanced paint materials and the painting technology...
- Page 5 EB110A AMPLIFIER MODULE 10" Active Subwoofer Introduction of Amplifier Module POWER CLIP ~ 230V/50Hz,T3 .15 AL VOLUME EB110A POWER 250W ACT IVE SUBWOOFER INPUT No.: MADE IN CHINA 1. Power indicator 2. High-cut Clip indicator 4. Power supply switch 5. Volume control 6.
- Page 6 EB110A INSTALLATION 10" Active Subwoofer Installation Reference 1. Stack Warning: Make sure the mounting accessories safety factor not less than 5:1 or meet the local standard during installation .
- Page 7 EB110A TECHNICAL SPECIFICATION 10" Active Subwoofer Specification 50Hz-250Hz Frequency response(-3dB): Max.SPL(1m): 111dB/117dB(PEAK) Transducer: Transducer:1x10" loudspeaker,8 Ohm,250W Input: one channel balanced input(XLR) Connector: XLR for input Input impedance(line): 20Kohm balanced input Input level: -14 dBU (0.2 V rms, 1.4 V peak)Line-100Hz...
- Page 8 EB110A TECHNICAL SPECIFICATION 10" Active Subwoofer 2D Dimension Top view 398mm [15.7in] Side view Front view Back view Bottom view...
- Page 9 Notes:...
