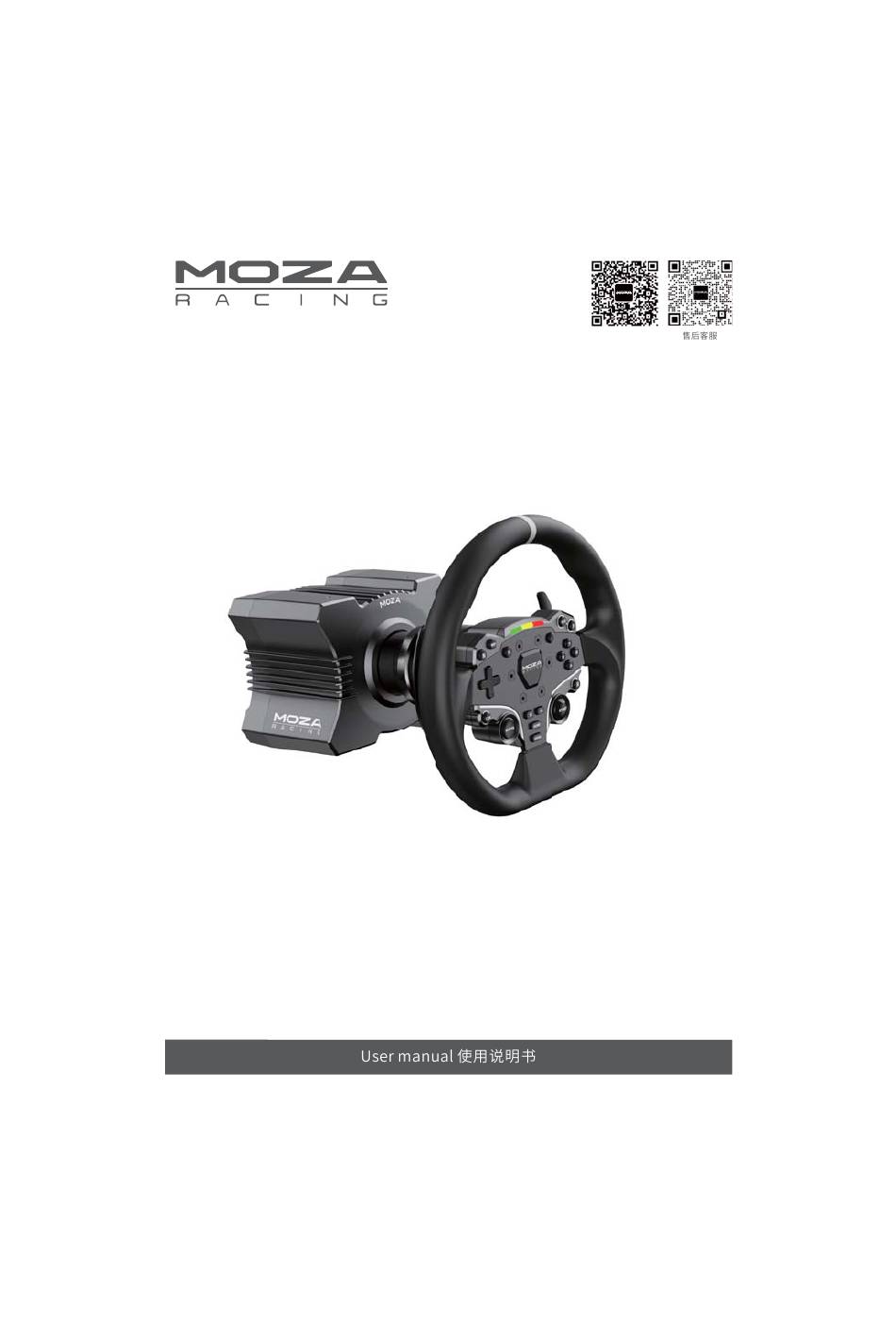

- Page 1 Quick Guide R5 Racing Simulator...
- Page 2 R5 Direct Drive Wheel Base ES Steering Wheel SR-P Lite Racing Pedals...
- Page 3 CONTENTS ENGLISH........................1 ........................12 ........................23...
- Page 4 R5 Direct Drive Wheel Base Product Features 5.5 N·m Peak Torque Intelligent Temperature Control System Servo Direct Drive System 15-bit Resolution Aviation-grade Aluminum Alloy MOZA Pit House Control Center Software Ultra-low Torque Ripple and Cogging MOZA App Cloud Control Wheelbase Interface...
- Page 5 2. Insert the Type-B end of USB cable and power cable into corresponding ports on the rear of the R5 base. 3. Short press the power button (located on the rear of the R5 base) to power on the R5. 4. Navigate to MOZA Racing (www.mozaracing.com) and download the latest version of the MOZA Pit House Software Suite.
- Page 6 Non-standard power supplies are prohibited from use. Use only AC power provided by a standard wall outlet to avoid damage to the R5. Do not expose the device to heat sources as this will damage the R5.
- Page 7 MOZA products should they wish to adjust. One of our latest additions is the FFB Effect Equalizer, which allows for adjustments to give the best feeling of the road through the steering wheel as well as other surfaces (such as grass, or dirt).
- Page 8 Our one-click update system allows for a fast and seamless upgrade of the entire MOZA ecosystem, allowing users to quickly get into the action. *For further software instructions, visit the official MOZA Racing website (www.mozarac- ing.com) help center page to download the latest instructions and manuals.
- Page 9 3. After logging into the MOZA account, click on "Connect Device" and Bluetooth connection will pop up. At this time, the base needs to be in a normal power on state 4. Check if the Bluetooth connection interface indicates that MOZA R5-xxx can be connected FCC Warning This device complies with part 15 of the FCC Rules.
- Page 10 (black color) and pull the wheel out at the same time. Wheel Configuration Using MOZA Pit House, our software suite, the ES steering wheel can easily be set up and configured to your liking. Joystick Mode: Can be configured as buttons or keys.
- Page 11 (For further information on specific steering wheel settings or functions using the MOZA Pit House Suite, visit our official website at www.mozaracing.com) Product Parameters Wheel Material: Microfiber Leather Frame Material: Aluminum Alloy Shifter Material: Aluminum Alloy Size: 11 Inches Buttons: 22 (Configurable)
- Page 12 SR-P Lite Racing Pedals Product Description High-strength Steel Pedals High Precision Hall Sensor Compatible with a variety of setups Adjustable Pedal Spacing Detachable Pedals Pedal Input Adjustable (Software) Pedal Installation Process 1. Install the pedals onto the included footrest using the mounting holes. Use a 2.5mm hexagon wrench to fix the M4*10 screws into the footrest.
- Page 13 3. Open the MOZA Pit House software suite to preview and confirm the status of each pedal. If the device is still colored grey or does not respond after using the pedal, please unplug the base, close the MOZA Pit House, restart your PC and reconnect the base, finally opening the MOZA Pit House again.
- Page 14 Pedal Input Adjustment: Software Supported Pedal Reversable Function: Supported Pedal Output Curve Adjustment: Software Supported Anti-slip Pedal Bottom: Included Packing List R5 Direct Drive Wheelbase Power Cord M6 Flat Pad x4 ES Steering Wheel Wire Harness x2 Moza Logo Stickers...
- Page 15 173.9mm 90mm...
- Page 26 173.9mm 90mm...
