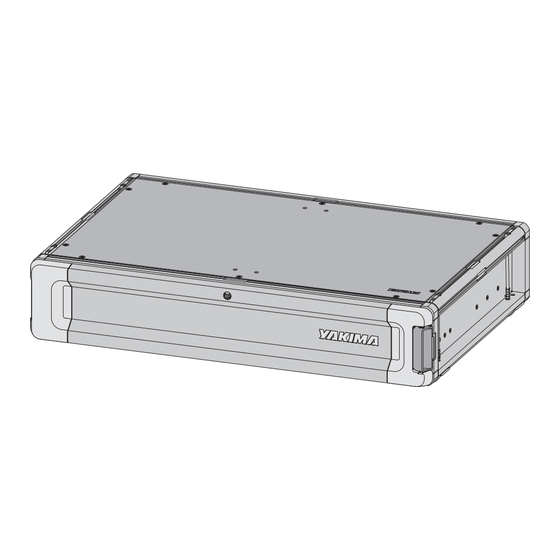

MOD System HomeBase
CONTENTS
1
HomeBase (1X)
2
divider (1X)
3
strap (4X)
4
5
foot (2X)
foot assembly (2X)
HARDWARE BAG
6
7
wrench (1X)
bottle opener (1X)
8
9
M6 x 45mm screw (4X)
M6 flat washer (4X)
10
11
12
13
6 mm shoulder screw (2X)
divider (2X)
M6 X 20 mm plastite screw (4X)
spacer (4X)
LOAD CAPACITY - Inside: 100 lbs / 45 kg On Top: 250 lbs / 113 kg
CAPACITÉ DE CHARGE - À l'intérieur : 100 lbs / 45 kg Dessus : 250 lbs / 113 kg
CAPACIDAD DE CARGA - Interior: 100 lb/45 kg Parte superior: 250 lb/113 kg
Français..........P6
Español...........P6
Instruction #1036295F-1/27

Advertisement

loading
Need help?

Need help?

Do you have a question about the MOD System HomeBase and is the answer not in the manual?

Questions and answers

Related Manuals for Yakima MOD System HomeBase

Summary of Contents for Yakima MOD System HomeBase

  • Page 1 MOD System HomeBase CONTENTS HomeBase (1X) divider (1X) strap (4X) foot (2X) foot assembly (2X) HARDWARE BAG wrench (1X) bottle opener (1X) M6 x 45mm screw (4X) M6 flat washer (4X) 6 mm shoulder screw (2X) divider (2X) M6 X 20 mm plastite screw (4X)
  • Page 2 ASSEMBLE AND INSTALL ASSEMBLE THE FEET. Insert the foot assembly into a foot. Using the provided Install an M6 wrench, tighten shoulder screw. 3 Nm completely to 3 Nm 2.2 lb-ft (2.2 lb-ft). PLACE HOMEBASE ON THE FEET. Set the assembled feet on a stable surface, spaced about 18”...
  • Page 3 FULLY TIGHTEN THE DRAW BOLTS. Now that the draw bolts are aligned, fasten them securely with a torque of 3.5 Nm 3.5 Nm (2.6 lb-ft). While 2.6 lb-ft tightening, pull down on the bolts to ensure they are properly engaged. Repeat steps 3 and 4 for the other side of the HomeBase.
  • Page 4 Next, pull the free ends of the straps firmly to secure the system in your vehicle. Ensure the straps are tight enough to prevent any movement of the HomeBase while driving. CAUTION: The MOD System HomeBase unit must be secured at all 4 corners before driving. LOCK THE HOMEBASE.
  • Page 5 OPTIONAL: INSTALL THE DIVIDER. • Choose one of the 3 availiable positions. • Align the upper portion of the divider bracket with the upper hole, press it into place, then rotate the lower portion into place, as shown, until the bracket is fully seated. •...
  • Page 6 REMOVAL A. Loosen the straps. B. Unhook the strap from the tie-down points. C. With the assistance of a friend, carefully lift the HomeBase and remove it from the vehicle. MAINTENANCE WARNING Use non-water-soluble lubricant on Be sure all of the hardware is secured according to screws.
  • Page 7 FRANÇAIS ESPAÑOL SERRER COMPLÈTEMENT APRIETE BIEN LOS PERNOS DE TRACCIÓN. LES BOULONS DE SERRAGE. Maintenant que les boulons de serrage sont alignés, les serrer Una vez alineados los pernos de tracción, apriételos firmemente a un fermement avec un couple de 3,5 Nm. Pendant le serrage, tirer sur les par de torsión de 3.5 Nm.
  • Page 8 FRANÇAIS ESPAÑOL AVERTISSEMENT ADVERTENCIA Asegurarse de fijar todos los accesorios según las instrucciones. Con el Vérifiez que tout le matériel est fixé conformément aux instructions. Le tiempo, los accesorios de sujeción pueden aflojarse. Revisarlos antes de matériel de fixation peut se desserrer avec le temps. Vérifiez-le avant cada uso y apriete si es necesario.
  • Page 9 DANSK NAINSTALUJTE DRUHOU JEDNOTKU HOMEBASE. MONTER DEN EKSTRA HOMEBASE. ADVARSEL DOSTUPNÉ P ÍSLUŠENSTVÍ DOSTUPNÉ P ÍSLUŠENSTVÍ NEDERLANDS SUOMI TABLE DES MATIÈRES SISÄLTÖ LAADVERMOGEN - KUORMITUSKAPASITEETTI - binnenzijde: 45 kg / 100 lbs; bovenop: 113 kg / 250 lbs sisällä: 45 kg / 100 lbs; päällä: 113 kg / 250 lbs MONTEER DE POTEN.
  • Page 10 NEDERLANDS aikana. TOISEN HOMEBASE-SÄILYTYSJÄRJESTELMÄN ASENNUS INSTALLEER DE TWEEDE HOMEBASE. Instruction #1036295F-10/27...
  • Page 11 NEDERLANDS SAATAVILLA OLEVAT LISÄTARVIKKEET BESCHIKBARE ACCESSOIRES TABLE DES MATIÈRES TABLE DES MATIÈRES CAPACITÀ DI CARICO - All’interno: 100 lb / 45 kg Sopra: 250 lb / 113 kg LADUNGSKAPAZITÄT - binnenzijde: Innen: 45 kg / 100 lbs; oben: 113 kg / 250 lbs Instruction #1036295F-11/27...
  • Page 12 DIE ZWEITE HOMEBASE INSTALLIEREN. DIE ZWEITE HOMEBASE INSTALLIEREN. Instruction #1036295F-12/27...
  • Page 13 NORSK POLSKI Instruction #1036295F-13/27...
  • Page 14 NORSK POLSKI INSTALLER DEN ANDRE HOMEBASE-ENHETEN. ADVARSEL CONTEÚDO CAPACIDADE DE CARGA - No interior: 100 lbs / 45 kg Na parte superior: 250 lbs / 113 kg Instruction #1036295F-14/27...
  • Page 15 INSTALAÇÃO DA SEGUNDA HOMEBASE. Instruction #1036295F-15/27...
  • Page 16 SVENSKA MONTERA FÖTTERNA. POZOR: Instruction #1036295F-16/27...
  • Page 17 SVENSKA NAMONTUJTE DRUHÝ SYSTÉM HOMEBASE. VAROVANIE Instruction #1036295F-17/27...
  • Page 18 Instruction #1036295F-18/27...
  • Page 19 Afin de pouvoir remplacer des clés perdues ou défectueuses, prendre note du numéro de la serrure et des clés ci-dessous et les enregistrer à www. In order to replace any lost or defective keys, note the lock and key yakima.com. numbers below and register them at www.yakima.com. Instruction #1036295F-19/27...
  • Page 20 Para reemplazar una llave perdida o defectuosa, anote más abajo los números de la cerradura y de la llave y regístrelos en www.yakima.com. Instruction #1036295F-20/27...
  • Page 21 • Før start på alle køreture. • Efter at have kørt en kort strækning efter montering af • Voor het begin van elke reis. bagagebærer eller last. • Na een korte afstand rijden na het monteren van een rek of •...
  • Page 22 • Vor dem Beginn einer Fahrt. • ennen ajon alkamista • Nach einer kurzen Strecke nach der Installation des Regals oder der Ladung. • ajettuasi lyhyen matkan telineen tai kuorman asennuksen jälkeen • Auf längeren Stecken in regelmäßigen Abständen. • säännöllisin välein pidemmillä...
  • Page 23 Instruction #1036295F-23/27...
  • Page 24 Instruction #1036295F-24/27...
  • Page 25 Instruction #1036295F-25/27...
  • Page 26 Instruction #1036295F-26/27...
  • Page 27 YAKIMA PRODUCTS, INC. 4101 KRUSE WAY LAKE OSWEGO, OR 97035-2541 888.925.4621 yakima.com/support YAKIMA AUSTRALIA PTY LTD 17 Hinkler Court Brendale, QLD 4500 Australia 1800 143 548 www.yakima.com.au www.yakima.co.nz www.yakima.eu Instruction #1036295F-27/27...
