Panasonic KX-TU110 Manual

Your phone

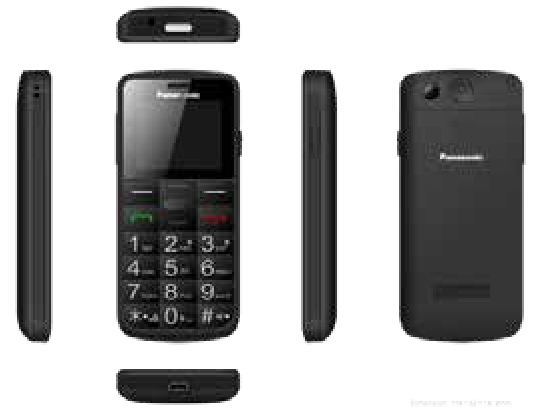

Phone overview

Status icons

The table below lists various icons that might appear on the status bar while using the phone. Apart from the icons for signal strength level and the power, other icons are displayed as per the current mode and priority of the phone.

Icon	Description
	Indicates the network signal strength.
	Indicates the current battery capacity.
	Indicates that there is an unread message.
	Indicates that there is a missed call.
	Indicates that the current Sound Status is the Ring only.
	Indicates that the current Sound Status is the Vibrate only.
	Indicates that the current profile mode is the Headset mode.
	Indicates that the current alarm clock is set as activated.
	Indicates the current keypad-locked state.
	Indicates that the Bluetooth is turn on.

Functions of Keys

The mobile phone provides the following keys:

• Left and right soft key
  The bottom line on the screen displays the functions of the Left and Right soft key.
• Dial key
  Press it to originate a call by entering the called number or selecting a contact from the phonebook; or press it to receive an incoming call; or press it in standby state to show the latest call records.
• End key
  Press it to end a call being dialed or end an ongoing call; or press it to exit the menu and re turn to the standby state. You can hold it for two or three seconds can power on/off the mobile phone.
• Direction key
  Press them to scroll the options when browsing a function list. In edit state, press direction keys to navigate.
• OK key (Center key)
  Press it to confirm a selection.
• Number keys, * key and # key
  Press number keys 0 through 9 to input or edit state to input numbers and characters; The # key and the * key represent different functions in different states or different function menus.
  Hold the # key up to 2s in standby state to activate or deactivate the silent mode.
  Press the # key in edit state to switch between input methods.
  Pressing the * key in edit status to select a symbol.
  In idle screen, you can press left soft key then * key to lock keypad. When the keypad is locked, you can press left soft key then * key to unlock it.
  Press and hold the 0 key up for 2s to input "+" in standby interface. When the symbol "+" appears, press the 0 key quickly to input "P" or "W". "P" and "W" are used for calling the extension; "+" are used for dialing an international call.
• 1 ( ) key
  Long press it to dial the voicemail number, if you have set voicemail number.
• 2 ( ) key
  Long press it to dial the speed dial number, if you have set speed dial number.
• 3 ( ) key
  Long press it to dial the speed dial number, if you have set speed dial number.

1. Side key
2. OK key (Center key)
3. Left key
4. Dial key
5. Earpiece
6. Display
7. Navigation key
8. Right key
9. End/Power key

Technical specifications

Phone
Dimensions (114 ˣ 51 ˣ 13.5 mm):
Weight: 81.5 g (With battery)
Lithium battery
Rated capacity: 1000 mAh
Continuous standby duration: 225H(Relates to network status)
Continuous conversation duration: 5.0H(Relates to network status)
Please refer to their labels for other data related to the battery and the charger.

Getting started

Installing the SIM Cards and the Battery

An SIM card carries useful information, including your mobile phone number, PIN (Personal Identification Number), PIN2, PUK (PIN Unlocking Key), PUK2 (PIN2 Unlocking Key), IMSI (International Mobile Subscriber Identity), network information, contacts data, and short messages data.
Note: After powering off your mobile phone, wait for a few seconds before removing or inserting an SIM card.
Exercise caution when operating an SIM card, as friction or bending will damage the SIM card.
Properly keep the mobile phone and its fittings such as the SIM cards beyond children's reach.

Installation

• Hold the End key for a while to power off the mobile phone

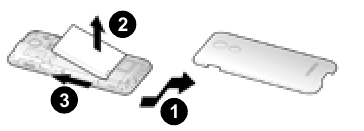

• Push the back cover above the battery and remove it.
• Pull the left battery buckle outward and then lift the battery away.

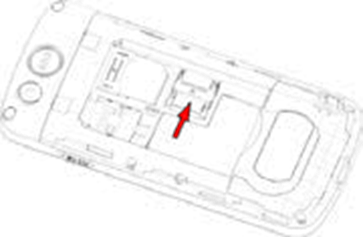

• Insert the SIM card into the SIM card slot lightly and the gold plate of the card facing download, till the SIM card cannot be further pushed in.
• With the metallic contacts of the battery facing the metallic contacts in the battery slot, press the battery down until it locks into place.

Using code
The mobile phone and the SIM cards support sorts of passwords, in order to prevent the phone and the SIM cards from being misused. When you are prompted to input any of the codes mentioned below, just input the correct code and then press the OK key. If you input a wrong code, press the Right soft key to clear it and then input the correct code.

Phone lock code
The phone lock code may be set to prevent your mobile phone from being misused. In general, this code is provided along with the mobile phone by the manufacturer. The initial phone lock code is set to 1122 by the manufacturer. If the phone lock code is set, you need to input the phone lock code when powering on the mobile phone.

PIN
The PIN (Personal identification number, 4 to 8 digits) code prevents your SIM card from being used by unauthorized people. In general, the PIN is supplied with SIM card by the network operator. If PIN check is enabled, you need to input the PIN each time when you power on your mobile phone. The SIM card will be locked if you input wrong PIN code for three times.
Unlocking methods as follows:

• Input the correct PUK according to the screen tips to unlock the SIM card.
• Then input the new PIN and press the OK key.
• Input the new PIN again and then press the OK key.
• If the input PUK is correct, the SIM card will be unlocked and the PIN will be reset.

Note: The SIM card will be locked if you input wrong PIN code for three times. To unlock the SIM card, you need to input the PUK. In general, the PUK can be obtained from the network operator.

PUK
The PUK code (Personal Unlocking Key) is required to change a blocked PIN. It is supplied with SIM card. If not, contact your network operator. If you input wrong PUK code for 10 times, SIM card will be invalid. Please contact the network operator to replace the SIM card.

Barring code
A barring code is required for setting the call barring function. You can obtain this code from the network operator to set the call barring function.

Installing Memory Card

The memory card is a pluggable mobile storage card inside the mobile phone.
To install the memory card, insert the card into the card slot.
To remove the memory card, take the card out.
Note:

1. The mobile phone cannot automatically identify the memory card being inserted when the mobile phone is powered on. You must power off the mobile phone and then power it on, so that the phone can identify the memory card.
2. The memory card is a miniature object. Keep it out of the reach of children for fear that children swallow it!

Charging the Battery

The lithium battery delivered with the mobile phone can be put into use immediately after being unpacked.

Battery level indication:

• Your mobile phone can monitor and display the battery state.
• Normally the remaining energy of the battery is indicated by the battery level icon at the upper right corner of the display screen.
• When the battery energy is insufficient, the mobile phone prompts "Battery low". If you have set an alert tone, an alert tone will be given off when the battery level is too low.
• A charging animation appears when the battery is being charged. When the charging is complete, the animation disappears.

Using a travel adapter:

• Install the battery into the mobile phone before charging the battery.
• Connect the adapter of the travel charger with the charging slot in the mobile phone.

Ensure that the adapter is fully inserted.

• Insert the plug of the travel charger to an appropriate power outlet.
• During the charging, the battery level grids in the battery icon keep flickering till the battery is fully charged.
• It is normal when the battery is become hot during the charging period.
• The battery icon does no longer flicker when the charging process ends.
  Note: Ensure that the plug of the charger, the plug of the earphone, and the plug of the USB cable are inserted in the right direction. Inserting them in a wrong direction may cause charging failure or other problems.
  Before the charging, ensure that the standard voltage and frequency of the local mains supply match the rated voltage and power of the travel charger.

Using the Battery
The performance of a battery is subject to multiple factors: radio network configuration, signal strength, ambient temperature, chosen functions or settings, phone fittings, and the voice, data or other application mode you choose to use.
To guarantee the optimal performance of your battery, please stick to the following rules:

• Use only the battery provided by the vendor. Otherwise, damages or even injuries could be caused during the charging.
• Power off the mobile phone before removing the battery.
• The charging process lasts a longer time for a new battery or a battery not in use for long. If the battery voltage is too low to enable the mobile phone to be powered on, charge the battery for a longer time. In this case, the battery icon does not flicker until a long time after the battery enters the charge status.
• During the charging, ensure the battery is placed in a room temperature environment or in an environment close to room temperature.
• Immediately stop using the battery if the battery produces odor, overheats, cracks, distorts or has other damage, or if the electrolyte leaks.
• The battery wears out with use. A longer charging time is required as the battery is put into use for a long time. If the total conversation duration decreases but the charging time increases even though the battery is properly charged, purchase a standard battery from the OEM or use a battery approved by our company. Using any poor-quality fittings will cause harm to your mobile phone or even incur danger!
  Note: To guarantee your personal safety and protect the environment, do not litter the battery! Return the old battery to the mobile phone manufacturer or place it in specified battery reclamation areas. Do not litter any battery with other rubbish.

  Short-circuits of the battery may cause explosion, fire, personal injury or other severe consequences!

Powering On/Off the Mobile Phone

Hold the End key for a while to power on the mobile phone. A power-on animation appears on the display screen.
Input the phone lock code and press the OK key if the mobile phone prompts you to input the phone lock code. The original code is 1122.
Input the PIN and press the OK key if the mobile phone prompts you to input the PIN. The PIN is provided by the network operator for new opening SIM card.
Enter the standby interface.
To power off the mobile phone, hold the End key for a while.

Linking to the Network

After the SIM card and the mobile phone are successfully unlocked, the mobile phone automatically searches for an available network. After finding a network, the mobile phone enters the standby state. When the mobile phone is registered in the network, the name of the network operator is displayed on the screen. Then you can dial or receive a call.

Dialing Calls

In the standby interface, press number keys to input the area code and the telephone number, and then press the Dial key to dial a call. To end the call, press the End key.

• Dialing an international call
  Hold the 0 key and input "+". Then input the country code, the area code and the telephone number. Finally, press the Dial key.
• Dialing a call to a number in the phonebook
  Enter the phonebook and use the up or down direction keys to find the telephone number you want to call.
  Press the Dial key. The mobile phone automatically dials the chosen telephone number.
• Redialing the last number
  In the standby interface, press the Dial key to show the dialed calls.
  Press the up or down direction keys to select a number you want to dial and then press the Dial key.
• Answering incoming calls
  Press the Dial key or the Left soft key to answer an incoming call.
  Press the End key to end the current conversation.
  To reject an incoming call, press the End key or the Right soft key.
  Note: If the calling number exists in the phonebook, the mobile phone will present the name of the caller. If the caller cannot be identified, the mobile phone will present the calling number only. You can answer an incoming call when using a function list or browsing the phonebook.
• Using options during a conversation
  Select Options during a conversation to pause, end the ongoing call, browse the phonebook, view information, set the mute, or perform other operations. For details, refer to the menu guide.

Using the Headset

It would enter headset mode automatically when you insert headset to the slot. Make sure of inserting it at the bottom of the slot, or you can't use it normally.

Input method

This mobile phone provides multiple input methods, including English input and numeric input. You can use these input methods when editing the phonebook, short messages and files.

Icons for Input Methods

After you enter an edit window such as a window for editing the phonebook, short messages, an icon is displayed to indicate the current input method:
Numeric input: "123"
English input in upper case: "ABC" English input in lower case: "abc"

To Shift Entry Methods

Press the # key to switch between input methods.

Numeric Input

You can input numbers with the numeric input method. Press a number key to input the corresponding number.

English input and numeric input

The keyboards for English input and numeric input are defined in the following table:

English input:

• Each key is used to represent multiple characters. Quickly and continuously press a key till the character you want appears. Input the next character after the cursor moves.
• Press the # key to switch between input methods
• To input a blank, switch to the English input mode (in upper or lower case) and then press number key 0.
• Clear wrong inputs, press the Right soft key.

Inserting a Symbol

Press the * key to enter the Select symbol interface, use direction keys to select a symbol you want.

Using the Menus

Multimedia

• Image viewer
  You can view the pictures or images through this function.
• Video recorder
  This function enables you to record video. In the capture interface, you can press up or down direction key to to zoom in and zoom out, press OK key to capture videos clip. The video recording can not be done without a memory card.

Messages

If the short message memory is full, a blinking message icon appears on the top of the screen. To normally receive short messages, you need to delete some of the existing short messages. If the destination user has received the short message you sent and the short message delivery report function is activated, the phone will give off a message report alert tone.

Write message
Access this menu to create a text message.

Inbox
Received messages are listed in this menu.

Drafts
The messages which are sent failed are stored in the Outbox.

Outbox
The messages which are sent failed are stored in the Outbox.

Sent messages
Sent messages are listed in this menu.

SMS settings
This function enables you to set the default features about the text message and service message.

Phonebook

The mobile phone can store up to 300 telephone numbers. The number of telephone numbers that an SIM card can store depends on the storage capacity of the SIM card. The telephone numbers stored in the mobile phone and in the SIM cards form a phonebook.

Add new contact:
Create new contact to phonebook.
After selecting a telephone number in the phonebook, select Options to perform the following operations:

View:
View the content of the telephone number.

Sent text message:
Sent text message to the selected number.

Call:
Call the current number of the SIM1 or SIM2.

Edit:
Edit the selected number and name.

Delete:
Delete the telephone number from the phonebook.

Copy:
Duplicate the telephone number from the mobile phone to the SIM card or from the SIM card to the mobile phone.

Caller groups:
You can assign contacts to the default caller groups. For each group, you can edit group name.

Phonebook settings:
To set some parameters of phonebook.

Settings

• Profiles
  The mobile phone provides multiple user profiles, so that you can customize some settings to adapt to the specific events and environments.
  Customize the user profiles according to your preference and then activate the user profiles.
  The user profiles fall into four scenarios: General, Silent, Meeting and Outdoor.
  When you insert an earpiece to the mobile phone, the mobile phone automatically enters the Headset mode. There is no option for activating the Headset mode on the screen. For details on operation, refer to General.
  Activate
  Select Activate to activate the selected mode.
  Customize
  After choosing one of the above four modes, select Customize to edit the following items: Alert type, Ring type, incoming call ringtone, ringtone volume, message ringtone, keypad tone, etc.
  Reset
  Use this function to restore factory settings of user profile.
  Note: If you remove the battery from the mobile phone or if the battery energy was exhausted a long time ago, you may need to reset the date and time when re-inserting the battery or powering on the mobile phone after recharging.
• Dual SIM settings
  Dual-SIM refers to two SIM card slots, and the two cards can standby at the same time or set one of them to display on the idle screen.
• Flight mode: You can turn off all wireless connections so your phone can't cause any inter ference with sensitive equipment in a plane or a hospital.
• Phone settings
  Time and date: set the date format, the time format, and detail time of the location.
  Note: If you remove the battery from the mobile phone or if the battery energy was exhausted a long time ago, you may need to reset the date and time when re-inserting the battery or powering on the mobile phone after recharging.
  Language:
  Select the display language for the mobile phone.
  Writing language:
  Select writing language as needed.
  Display:
  Users can access this item to set wallpaper, Show date and time, etc.
  Dedicated keys:
  You can set shortcuts for those functions you often use.
  Auto update time:
  Activate/deactivate this function as per your need.
  Font size:
  Users can choose the font size for the large font or theme default font.
  Misc. setting:
  You can set the LCD backlight brightness and time.
  One key for help:
  You can turn on or off this function, and set the help content, help number etc.
  Network settings:
  Contact the network operator to obtain the following network services.
  Network selection:
  Set Network selection mode to Automatic or Manual. Automatic is recommended. When
  Network selection mode is set to Automatic, the mobile phone will prefer the network where the SIM card is registered. When Network selection mode is set to Manual, you need to select the network operator's network where the SIM card is registered.
  GPRS transfer pref.:
  Select Call first or Data first.).
• Security settings
  This function provides you with related settings about safety use.
  SIM security:
  • PIN lock:
    To activate PIN lock, you need to input the correct PIN code. If you set PIN lock to on, you need to input the PIN each time you power on the mobile phone. In the case you input a wrong PIN for three consecutive times; you need to input the PIN Unblocking Key (PUK). The PUK is used to unlock and change the locked PIN. To obtain the PUK, contact the network operator.
  • Change PIN:
    To change PIN code of SIM card.
  • Change PIN2:
    To change PIN2 code of SIM card.
    Phone security
  • Phone lock:
    The function enables you to lock/unlock the phone. Entering password to switch on the phone. Password is required when the phone is locked. The initial password is 1122.
  • Change password:
    To change phone password.

Screen auto lock
The function enables you to lock/unlock the keypad. Setting the auto locking time that 15s, 30s, 1min or 5mins is available. The keypad will be auto locked with no operation during the period.

Privacy protection
In this menu, you can set password-protected on the need of menu. For the menu open the private protection, need to input a phone password when you entered. Enter the other module which has opened the function, do not input the password again until return to idle to give up operation of authority.
Restore Settings:
Use this function to restore factory settings. The preset password is 1122.

Call center

Call history
Missed calls
You can view a list of the latest missed calls.
Note: When the mobile phone indicates that some calls are missed, you can select View to enter the missed calls list. Navigate to a missed call and then press the Dial key to dial the number that originated that call.
Dialled calls
You can view the latest dialed calls. Choose Dialled calls and then select a dialed call to delete, save, dial, or send a short message to it.
Received calls
You can view the latest received calls. Choose Received calls and then select a received call to delete, save, dial, or send a short message to it.
Delete call logs
You can delete the latest call records. Choose Delete call logs and then select to delete all the numbers in the call history, or delete only the numbers in the missed calls list, the dialed calls list or the received calls list.
Call timers
Choose Call timers to view the last call time, the total time of all dialed calls, the total time of all received calls and the total time of call history, and/or to reset all the time.

Call settings
SIM1/2 call settings

• Call waiting: After you choose Activate, the mobile phone will contact the network. A moment later, the network will make a response and send a message to acknowledge your operation. If the call waiting function is activated, the network will alert you and the mobile phone screen will display the incoming call number if others are calling you while you are already in a conversation.
• Call divert: this network function enables you to forward incoming calls to another number you have previously specified.
• Call barring: The call barring function enables you to bar calls as needed. When setting this function, you need to use a network barring code, which can be obtained from the network operator. If the code is wrong, an error message will be prompted on the screen. After selecting a call barring option, continue to select Activate or Deactivate. The mobile phone will prompt you to input the call barring code and then contact the network. A moment later, the network will make a response and send the operation results to the mobile phone.
• Line switching: Switch to Line 1 or Line 2. By default, Line 1 is used.
  Note: If you choose Line 2, dialing may fail. This depends on the implementation of the network operator.

Advanced settings

• Auto redial: Set it to On or Off to enable or disable auto redial. If you set Auto redial to On, the mobile phone will automatically redial the number a moment later if the called party does not reply. The number of auto redial times can be set to a maximum of 10. In the auto redial period, you cannot dial other numbers. To end the auto redial process, press the End key.
  Note: This function requires support from the network operator to which the SIM card is registered.
• Call time reminder: To set single or periodic tone in a call to make you know the time.
• Answer mode: Select an answer mode as per your need.

Organizer

• Alarm
  Five alarm clocks are set but deactivated by default. You can activate one, multiple or all of them as needed. For each alarm clock, the ringing date and the ringing time can be set.
• World clock
  By pressing left/right navigation keys to change time zone on world map, you can check time and date of different cities and regions.
• Bluetooth
  With Bluetooth, you can make a wireless connection to other compatible devices, such as mobile phones, computers, headsets and car kits.
• SIM toolkit
  SIM toolkit service is the tool kit of SIM card. This phone supports the service function. The specific items are depended by SIM card and network. Service menu will be auto added to the phone menu when supported by network and SIM card.

File manager

The phone provides a certain space for users to manage files and supports the memory card. The capacity of the memory card is selectable. You can use the file manager to conveniently manage various directories and files on the phone and the memory card.
Choose File manager to enter the root directory of the memory. The root directory will list the default folders, new folders and user files. When the mobile phone is powered on for the first time or when you have not changed the directory, the root directory contains the default folders only.

Camera

The phone is provided with a camera, which supports the photographing functions. Roll the phone to align the camera to the picture and then press OK key to capture photos. Pictures will be saved in the file system of the phone or the memory card. In the capture interface, you can press up or down direction key to zoom in and zoom out.

How to handling the battery and SIM card

• Remove the back cover above the battery.

• Pull the left battery buckle outward and then lift the battery away.
• To install the Micro SD card, place its indented side downward, insert the card into the card slot.

• Insert the SIM card into the SIM card slot lightly with the corner cutting of the card aligning to the notch of the slot and the gold plate of the card facing down load, till the SIM card cannot be further pushed in.


Troubleshooting

If you find exceptions when operating the mobile phone, restore the factory settings and then refer to the following table to solve the problem. If the problem persists, contact the distributor or service provider.

For your future reference

We recommend keeping a record of the following information to assist with any repair under warranty:

Manufacturer (Panasonic Corporation)
Panasonic System Network Co Ltd.
1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan http://www.panasonic.com

Detailed information
"For detailed information about the features of your phone system, refer to the operating instructions, which is available by visiting the support page for this product at the address below: http://www.panasonic.eu”

Sales department

Graphical symbol

Symbol	Explanation	Symbol	Explanation
	Alternating current (A.C.)		Class P equipment (equipment in which protection against electric shock rely on Double Insulation or Reinforced Insulation.)
	Direct current (D.C.)		"ON" (power)
	Protective earth		"OFF" (power)
	Protective bonding earth		Stand-by (power)
	Functional earth		"ON"/"OFF" (power; push-push)
	For indoor use only		Caution, risk of electric shock
