EVM User's Guide: TPS26750EVM
TPS26750 Evaluation Module
Description
The TPS26750EVM is designed to test USB-PD for
sink-only, source-only, or DRP applications, in both
USB-PD SPR and EPR ranges. The TPS26750EVM
can operate as a sink only with no power provided, or
as a source, sink, or DRP with a power supply of 15V.
The TPS26750EVM supports sourcing and sinking
up to 48V at 5A, in accordance with the USB-PD
specification, as well as supporting battery charging
applications in conjunction with the BQ25756EVM.
Get Started
1. Order the
TPS26750EVM
2. Start development with the
Customization Tool
3. Refer to the
data
sheet,
Manual, or E2E for questions and support
Features
PD controller is certified by the USB-IF for PD3.1
Up to 240W (28V/5A) source and sink applications
– 15W (5V/3A) Source and 240W (48V/5A) sink
as standalone EVM
– 240W (48V/5A) Source and 240W (48V/5A)
sink with BQ25756EVM
Easy-to-use GUI with pre-configured firmware to
configure:
SLVUCP8 – SEPTEMBER 2024
Submit Document Feedback
Application
Technical Reference
Copyright © 2024 Texas Instruments Incorporated
– Programmable Power Supply (PPS) for 5V-21V
range
– Liquid detection and corrosion mitigation
– BC1.2 charging schemes (requires populating
resistors on board)
– Integrated I2C control for BQ25756 battery
charger
– Interfacing connector for BQ25756EVM
Multiple test points and headers for quick and easy
debug
– Exposed VBUS and CCx test points to monitor
PD traffic
– VBUS, VBUS_LV, PPHV, and VSYS test points
available
– GPIO, I2C, and power supplies available on
100mil header
– 100 mil header pins scaled to 5V to support 5V
or 10V digitizers for easier debug
Applications
Battery pack for cordless power
banks,
retail automation and payment
e-Bikes,
wireless
speakers,
cleaners
Personal and portable
applications
Medical
applications,
personal care and fitness
Description
tools,
power
cordless vacuum
electronics,
industrial

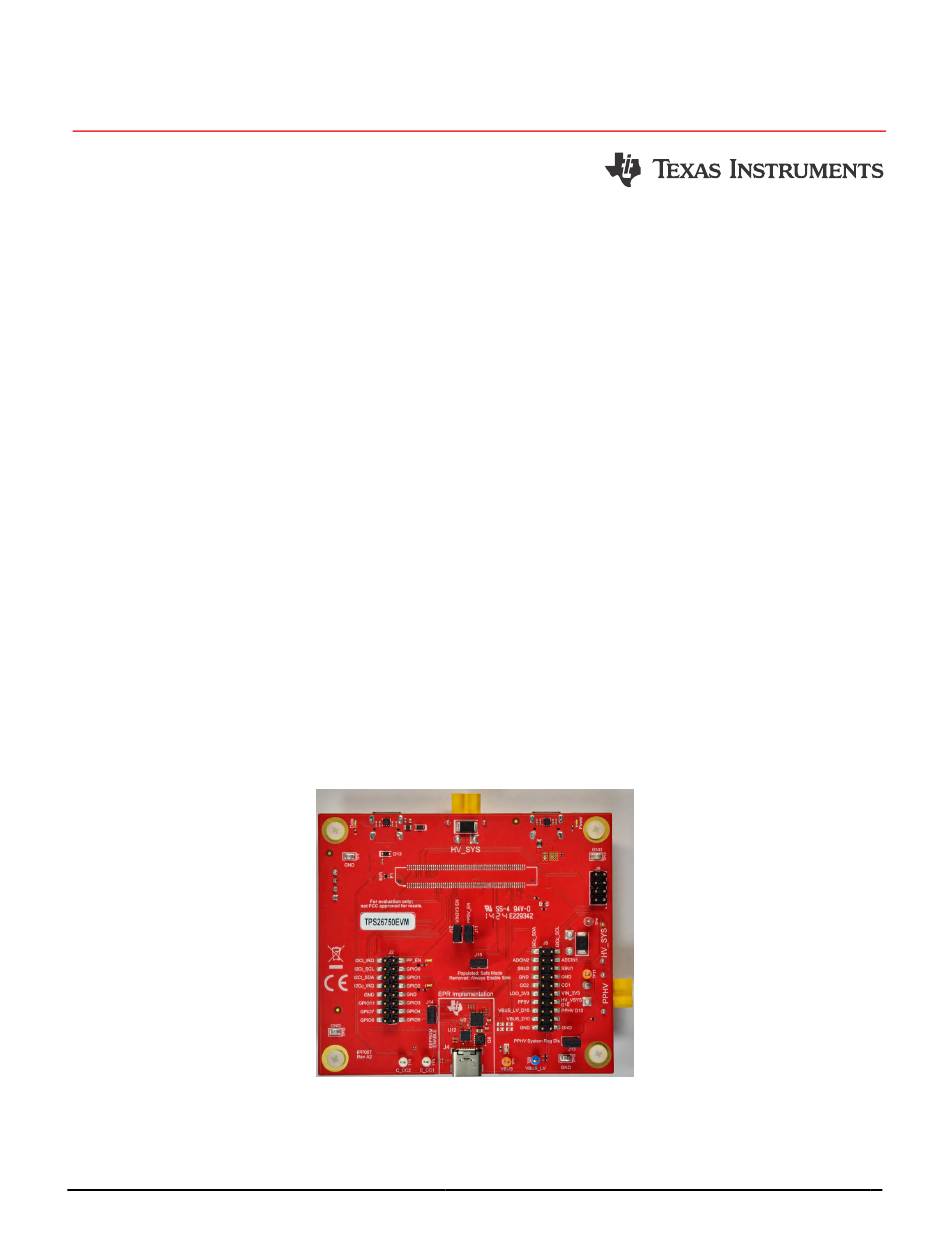

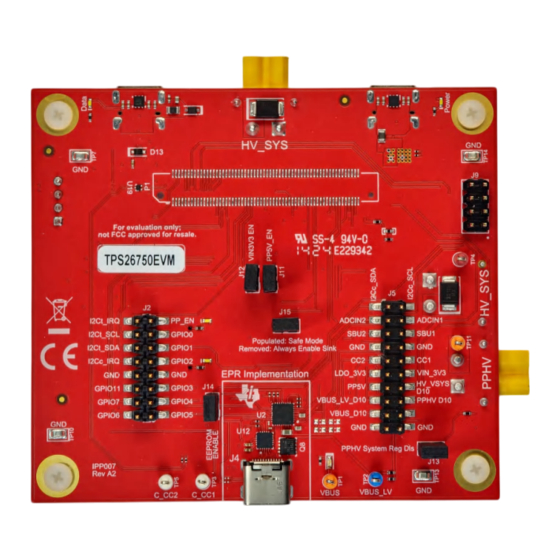

TPS26750 Evaluation Module
