GE JGP945SEKSS - 30" Sealed Burner Gas Cooktop Dimensions And Installation Information

JGP945SEK
GE Profile 30" Built-In Gas Cooktop
™
Dimensions and Installation Information
AGA Requirement: All gas cooktop models require
7/16" free area below cooktop height to combustible
material. Requires 18" minimum from countertop to
adjacent overhead cabinets.
Note: If installing with a GE Profile
TM
Downdraft System, consult both cooktop and
downdraft installation instructions packed with
product before installing. Cooktop gas/electric
supply may need to be re-routed to install
downdraft.
Electrical Rating: 120V, 60Hz, 5A
Installation With Single Wall Oven Information:
30" Gas Cooktops are approved for use over select
GE 27" and 30" Wall Ovens and Warming Drawers.
30" and 36" Gas cooktops are approved for use
over 30" Wall Ovens and Warming Drawers.
Refer to cooktop and wall oven/warming drawer
installation instructions packed with product for
current dimensional data.
Installation Information: Before installing, consult
installation instructions, packed with product, for
current dimensional data.
For answers to your Monogram, GE Profile
®
GE appliance questions, visit our website at
®
ge.com or call GE Answer Center
®
800.626.2000.

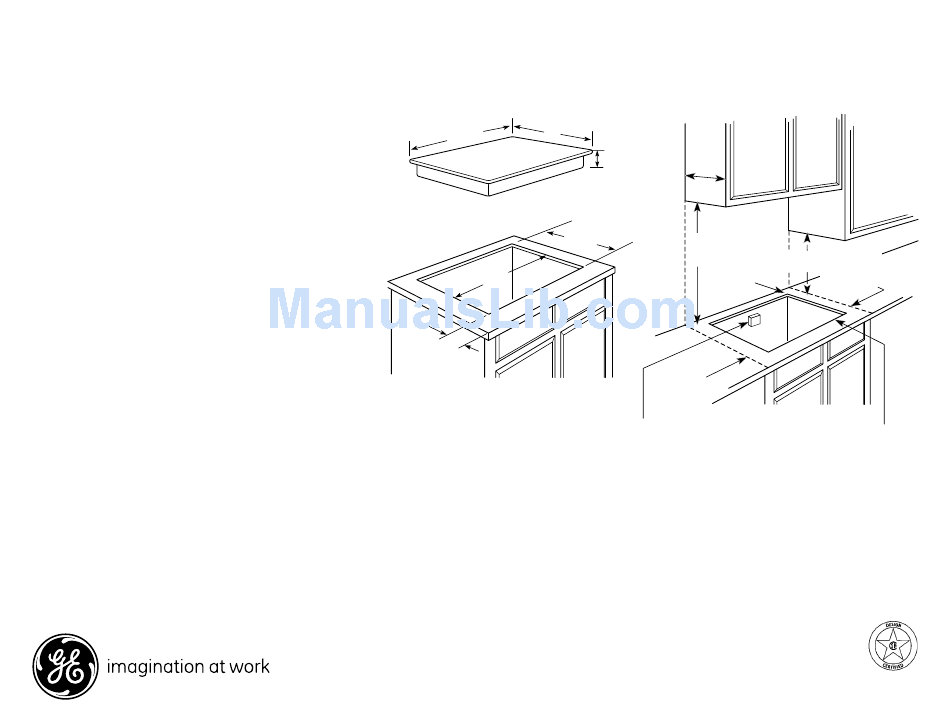

Telescopic
*Allow 5-3/4" depth at rear for electrical and
gas connections
or
™
service,
21
30
Cooktop
3-3/16*
19-5/8
28-1/2
2-1/2
(Min.)
Dimension and installation information are shown in inches.
13" MAX.
depth
30" MIN. to
unprotected
18" MIN.
cabinet
to cabinet
2-1/4" to
rear wall
3-3/4" MIN.
clearance to
side wall
from cut-out
Electrical junction
box 12" MIN.
below countertop
Specification Revised 10/05
6" MIN.
clearance to
side wall
from cut-out
Cut should
not interfere
with cabinet
structure at
front
230264
