Bosch 1900, 1900 DH, F1900 W 100, F1900 W 125 Manual

INSTALLATION

Overview

warning The bathroom extractor fan should only be installed, connected to electrical mains and commissioned for use by qualified personnel in accordance with applicable laws!

Necessary tools:

Installation procedure

Precisely determine where the fan will be installed
Prepare the power cable indicated in chapter "Application and operating conditions"
NOTE: Before starting make sure that the power cord is not live.
Measure and drill holes for the fan and ø6 mm mounting pins included with the product

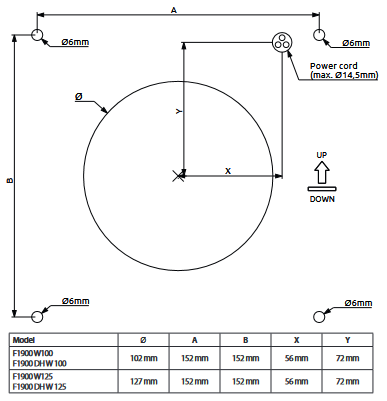

NOTE: The arrangement of mounting holes and wires must be in accordance with Figure 7.

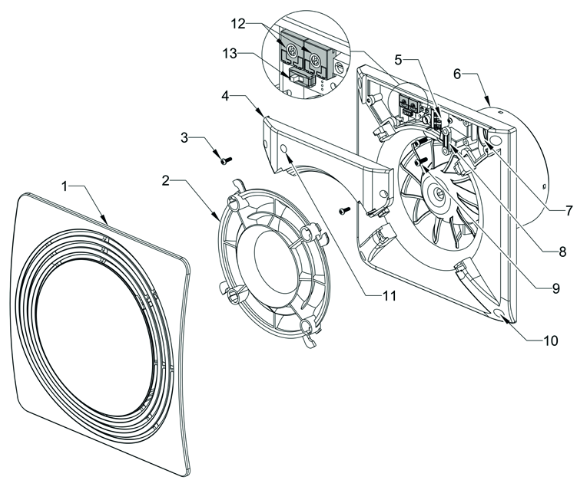

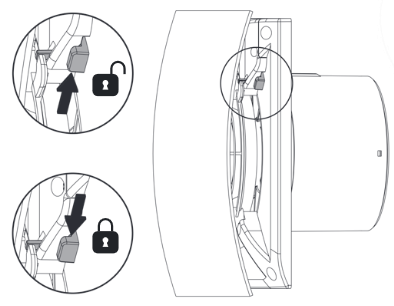

Remove the front panel (1) and the rotor cover (2) To remove the panel, unlock the locking mechanism (see Fig 2.1)

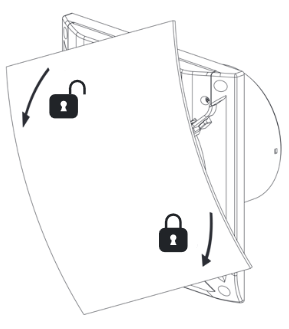

and then turn the panel counterclockwise (see Fig 2.2)
Remove the electric cover (4) fixed with screws (3)
Applicable to the DH version: A sensor (11) is attached to the electric cover (4). Remove the cover carefully so as not to damage the wiring harness connecting the sensor to the controller.
Route the power cord in double insulation through the rubber grommet (7) Insert a sufficient length of the cord so that the wires can be connected to the power terminals (5) The minimum length of the cable in the external insulation is 10 mm (inside the chamber)
Before mounting the fan: remove all foreign objects from its inside; check manually that the fan rotor moves freely; check that there is room for opening the non-return valve baffle located at the outlet of the bathroom extractor fan;
Place the fan housing (6) and the mounting pins in the previously drilled holes
ATTENTION: The fan must be mounted so that the electrical compartment is at the top.
Mount the fan to the substructure by driving the screws into mounting pins through the mounting holes (10)
Remove the outer insulation from the power cord and remove the 4 mm of insulation from the wires
Arrange the power cord and connect according to the electrical wiring diagram applicable to the model installed
NOTE: If there are unused wires in the cable then they should be insulated.
Applicable to the DH version: Insert the cores of the power cord into the corresponding holes of the terminal strip For ease of use, press the button on the clamps
Secure the cable against slipping out using the clamp (8) and screws (9)
Check if the seating of the cable conductors in the terminals (5) is solid
Check if the fan is firmly installed and correctly wired
Set the stop delay time and the humidity sensor sensitivity level using the potentiometer knobs (12) on the controller
Check the tightness of the power cord
- The power cord must be secured so that in case of flooding there is no ingress of water to live parts
Place the electric cover (4) and secure with the screws (3)
Slide the handles of the front panel (1) into the holes of the rotor cover (2)
Place the front panel and the rotor cover on the front of the fan in a counterclockwise direction by approx 5° Then turn it clockwise until a clearly perceptible resistance is felt (see Fig 2.2)
Slide the front panel lock to prevent accidental removal (see Fig 2.1)

ATTENTION! Hazard of injuring fingers with the rotating fan rotor! Install the guard against the direct touch of moving parts before starting!

FIRST START OF THE DEVICE

The first start may only take place after all safety precautions have been checked and risks have been eliminated After the bathroom extractor fan start-up, check that it runs steadily and the air is handled efficiently (out of the room and through the exhaust duct to the outside)
The bathroom extractor fan may only be used with the front panel, which provides protection against contact with moving parts and water ingress
The installer is responsible for compliance with the applicable standards and may be held liable for accidents resulting from the absence of safety devices

ELECTRICAL CONNECTIONS

The electrical connection and start-up may only be carried out by qualified personnel who arequalified to perform electrical work
Always follow the applicable standards, safety regulations and technical requirements specified bythe power company!
The type of mains system, voltage and frequency must match the data on the rating plate of thebathroom extractor fan
For bathroom extractor fans with stop delay time, the minimum voltage at the T terminal that startsthe stop delay countdown or starts the exhaust fan is 130V AC at 50 Hz

DIMENSIONS

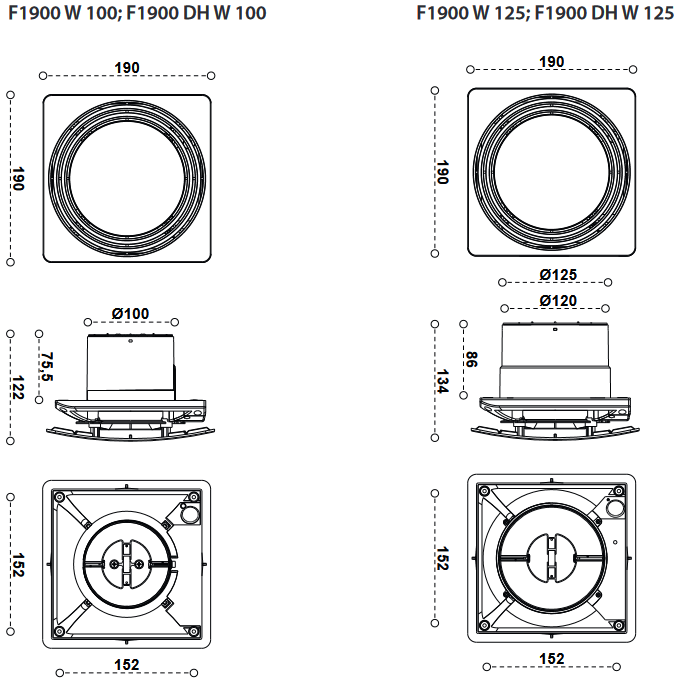

The dimensions of the models are listed on the packaging and Figure 6

MAINTENANCE AND CLEANING

Maintenance

Health and safety regulations must be respect during all maintenance work
Before servicing the bathroom extractor fan, disconnect it from the mains and secure it against unintentional operation!
The bathroom extractor fan ventilation ducts must be clear of foreign bodies: hazard of injury by objects blown out at a high speed!
Do not attempt any maintenance works when the fan is running
If excessive vibrations are felt or heard, have the product maintenance carried out by a qualified electrician
Depending on the degree of rotor contamination, technical inspections must be carried out at least once every 6 months!
Check the rotor for cracks
The manufacturer is not liable for damage caused by improper repair
In the case of appliances with ball bearing motors with "lifetime lubrication", the motor does not require lubrication

CLEANING

shock hazard Electrocution risk by damaged wiring insulation! Before cleaning, completely disconnect the bathroom extractor fan from the mains and secure it against inadvertent operation!

Clean the front cover and visible parts of the housing with a damp cloth
Do not use any aggressive solvents!
Do not clean with a high pressure cleaner or strong jets of water!
When cleaning, make sure that no water enters the electric motor or terminal box
The grille at the bathroom fan inlet must always be kept clean

WARNING

The following safety symbols show important safety information Follow all safety regulations and the safety symbols shown in the Instructions manual to avoid injury and hazards!

Electrocution hazard: high voltage!

Attention: rotating parts!

GENERAL SAFETY PRINCIPLES

Information for the target group
Observe the instructions in the manual Failure to follow the instructions may result in property damage, personal injury or even death

Read the installation instructions before proceeding with the installation
Read and retain this manual before using the device
Observe safety principles and warnings
Observe national and regional regulations, technical rules and guidelines

Safety of household and similar electrical appliances
In order to avoid hazards posed by electrical appliances, the following requirements apply in accordance with the EN 60335-1 standard:

"This product can be used by children at least 8 years old, by people with impaired physical and/or mental abilities, and by people without any experience in or understanding of the operation of the product, if supervised or instructed by a competent adult in the safe use of the product so that they understand the relevant operating risks"
"Children should not play with the appliance Children should not be allowed to clean or maintain the product without supervision of an adult"
"If the power cord is defective, it must be replaced by the manufacturer, his service department or a person with similar qualifications in order to avoid hazards"

Risk of fatal injury from electric shock!
Touching live electrical parts may result in electric shock

The bathroom extractor fan is designed for permanent indoor connection, for fixed electrical installation, which must be equipped with means/devices for total contact breakage in order to ensure complete separation under overvoltage conditions of category III according to the regulations for such installation
The bathroom extractor fan is designed for installation at a substantial height, ie 2,3 m above the floor Installation - only in accordance with the descriptions and guidelines in this manual, in particular with regard to the required installation position, by inserting the power cord into the housing
Measures shall be taken to prevent gases from escaping from open smoke duct or other open flame equipment into the room
Unauthorised changes or modifications to the equipment are not permitted
Before installing the equipment, check the load-bearing capacity of the structure to which it is to be mounted, as improper mounting can lead to damage or destruction of the equipment and can pose a risk to persons in the vicinity of the equipment in the following situations

warning The appliance may become dangerous if used improperly or if installed by unqualified personnel.

APPLICATION AND OPERATING CONDITIONS

The fan is designed for wall and ceiling mounting
Bathroom extractor fans are designed to transport normal or slightly dusty air (particle size <10 μm) of low aggressiveness and humidity in temperate climates according to and within their limits of performance
The appliance is designed only for continuous operation in a building if there is no access to the power supply line
The maximum temperature handled by the bathroom extractor fan and the maximum ambient temperature are +40°C
The exhaust fan is an IP24 and protection class II device if it is installed in the wall or ceiling according to Figure 7.
The bathroom extractor fan must be operated according to its intended use and in accordance with the data provided on the rating plate
The bathroom extractor fan must be connected to the building mains (recessed electrical installation) with one of the following power cable: 2x1,5 mm²; 3x1,5 mm², depending on the fan version - see PRODUCT DATA chapter. If a cable with more wires is used, eg 4x1,5mm², the outer diameter of the cable must not exceed 14,5 mm
The bathroom extractor fan cannot be used to circulate air with the following characteristics:
- viscous contaminants prone to deposition in the bathroom extractor fan,
- corrosive contaminants which may degrade the bathroom extractor fan,
- contaminants from mixtures of flammable substances in the form of gases, vapours, mists and dusts, which in combination with air can create an explosive atmosphere
Motors fitted with ball bearings are designed for a service life of at least 30,000 hours at maximum permissible ambient temperature so as to enable continuous operation at maximum efficiency
In case additional controllers exist in the installation, these must not cause frequent switching on and off of the bathroom extractor, as this will be considered extreme and not intended use of the product
The device is not suitable for use 2000 m above sea level

TRANSPORT AND STORAGE

Bathroom extractor fans should be stored in their original packaging in a dry place protected from-weather conditions
Maintain storage and transport temperatures between -20°C and +40°C
Avoid shocks and impacts Bathroom extractor fans should be transported in their original packaging
If the storage period is longer than 1 year, it is necessary to check the correct functioning of the motor bearings by manually turning the rotor before installation
Damage caused by improper transport, storage or starting is not covered by the warranty

PRODUCT DATA

Terminal block (standard version, no part index suffix). Models with terminal block should be connected according to the wiring diagram in Fig. 3.

The bathroom extractor fan is operated by means of a separate switch, which is part of the building electrical installation (not part of the appliance)
Humidity sensor and timer (part name suffix "DH"). Models equipped with humidity sensor (hygrostat) and stop delay (timer) should be connected according to the wiring diagram in Fig. 4 or 5.

The air humidity sensor detects humidity between 40% ("HIGRO" potentiometer turned maximum to the left) and 90% ("HIGRO" potentiometer turned maximum to the right) of relative humidity (see Fig 8.1)

The system is additionally equipped with a timer The operation of the fan depends on the power supply connection method If connected as shown in Fig5, the fan will start automatically when the air humidity level exceeds the set value of the humidity sensor Under these conditions the fan will switch off when the air humidity level is below the set value, plus the switch-off delay time set with the timer elapses Switch-off delay time is regulated by the "CZAS/TIME" potentiometer in the range of 3-30 min (the minimum switch-off delay time is obtained by turning the potentiometer maximum to the left - see Fig 8.2)

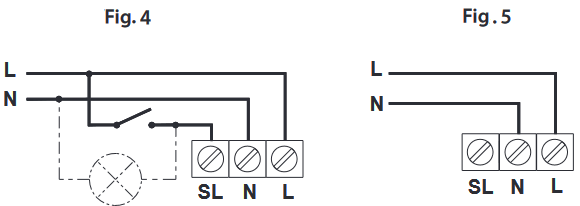

If connected as shown in Fig 4, the fan can also be started with by operating the separate on/off switch Depending on the setting of the "DELAY" slider (13) on the controller, the fan will start operating when voltage is detected on the "SL" terminal or after 2 minutes after voltage is detected After a signal loss at the "SL" terminal due to switching off the light or the on/off switch, the fan will stop after the stop delay time set with the potentiometer if the humidity level in the room is below the level preset on the potentiometer The humidity detection system is the master system
NOTE: When the green diode located in the electronic system is on, it means that the humidity level in the room is higher than the preset on the potentiometer controlling the humidity level adjustment. As long as the diode is on, the fan will not start counting down the stop delay after which the fan is switched off. It will take place only after the humidity level in the room drops and the green diode goes off.
