Related Manuals for TUYA Smart Control Panel Mini
Summary of Contents for TUYA Smart Control Panel Mini
- Page 1 Smart Control Panel Mini Product manual...
- Page 2 Catalog Welcome Product picture Features Product specifications Warranty Policy Non-warranty regulations Certification Information...

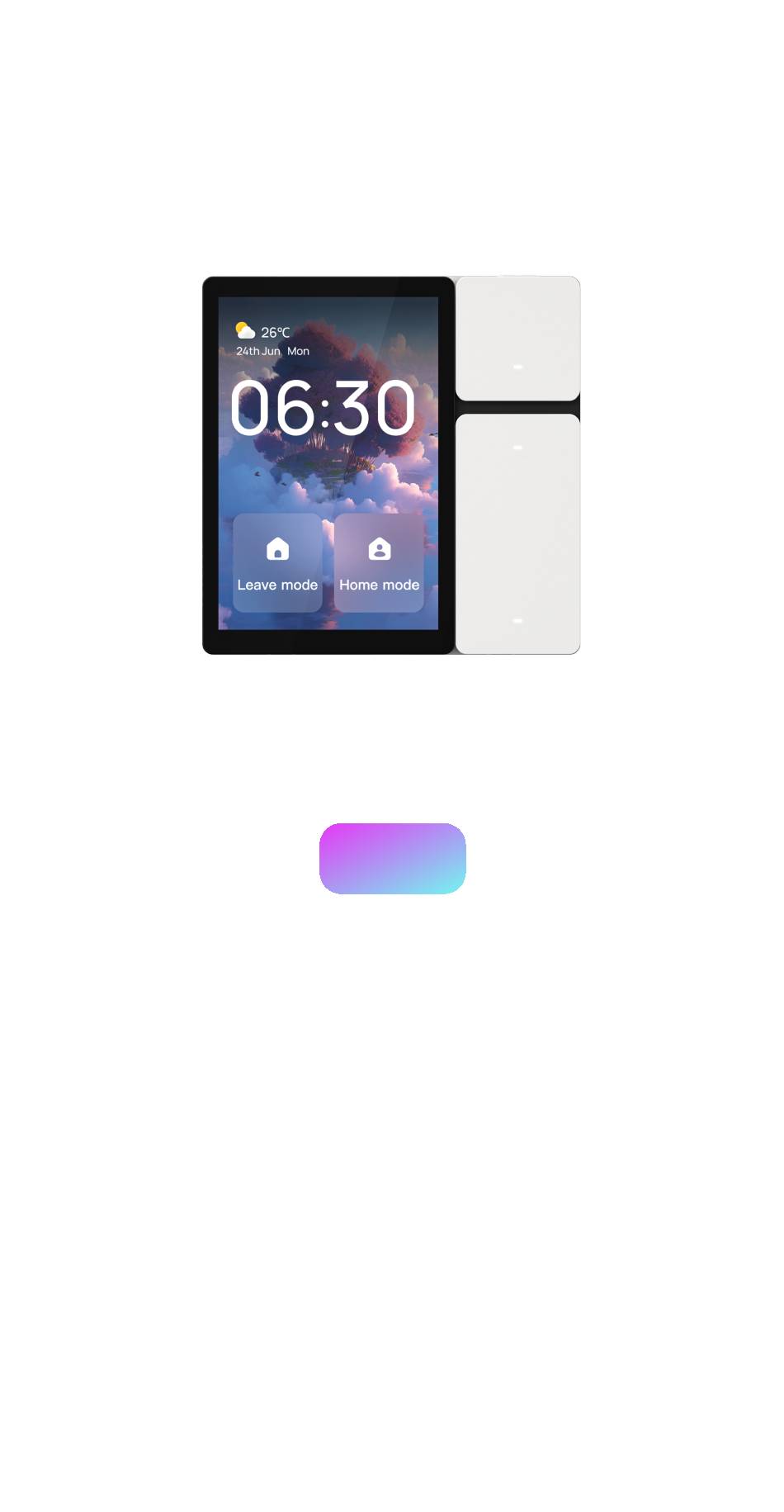

- Page 3 Welcome Smart Control Panel Mini is a multifunctional interactive device that integrates a screen, three physical buttons, three relay channels, and infrared remote control. Through the screen, various devices and scenes at home can be controlled. The three relay channels can replace traditional switches to control three lighting devices.

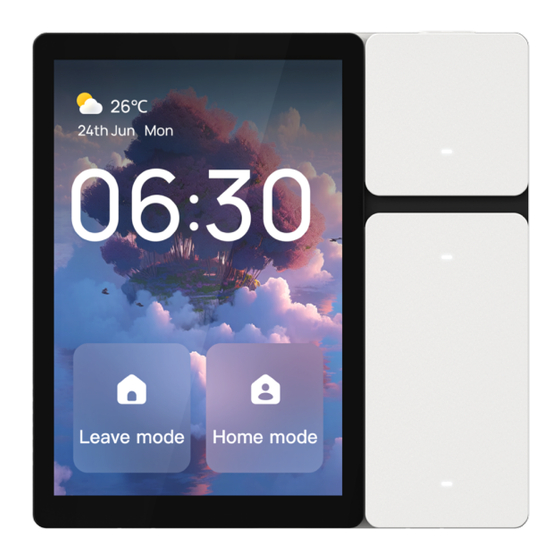

- Page 4 Product picture The physical buttons Infrared remote control Touch Button (Front side) screen indicator light Neutral wire Live wire (Back side) Reset Type C (Side view) *Debug only...
- Page 5 Function introduction ① Boot Guide After mounting the Smart Control Panel on the wall and powering it up, it will enter the boot guide page. Follow the on-screen prompts to: • Select language • View and agree to the terms of use •...
- Page 6 Function introduction ② Home Page After completing the boot guide settings, the Smart Control Panel will enter the home page, which displays: • Current time • Date and day of the week • Weather and temperature • Current network signal •...
- Page 7 Function introduction ③ Device Control Swipe right on the home page to enter the "All Devices" list page. Here, the devices that have been added to the mobile app will automatically sync. Devices meeting any of the following conditions will appear in the device list on the Smart Control Panel： •...
- Page 8 Function introduction ④ Scene Control Swipe left on the home page to enter the “Tap-to-run” list page. Here, the "Tap-to-run" and "Lighting Scenes" (if any) that have been added to the mobile app will automatically sync. Click on a scene card to execute the scene action. If lighting scenes have been created under the account, clicking on "Tap-to-run"...
- Page 9 Function introduction ⑤Quick control Swipe down on the home page to enter the "Quick control” page. Here, quick control widgets for devices are displayed. What you see is what you get, allowing you to control devices at a glance. Click on the function button of a quick control widget to control the device's function.
- Page 10 Function introduction ⑥ View Camera & Unlock on Screen Swipe right on the home page for two screens to enter the “Family call" page. Here, devices with video streaming capabilities such as smart cameras, visual doorbells, and visual door locks are displayed. Click on the device card of a smart camera or visual doorbell to view the camera footage.
- Page 11 Function introduction ⑦ Pull-down Page From any page, swipe down from the top of the screen to bring up the "Pull-down Page". The "Pull-down Page" includes the following buttons: • Home: Click to return to the home page. • Settings: Click to enter the settings page. •...
- Page 12 Function introduction ⑧Settings In the "Pull-down Page", click on "Settings" to enter the settings page. The "Settings" include the following options: • Network setting: Select network, enter password to connect to the internet. • Bluetooth: Enable or disable Bluetooth Mesh gateway. •...
- Page 13 Function introduction ⑨ Infrared Remote Control The Smart Control Panel Mini is equipped with three surface- mounted infrared emitters, allowing it to control home infrared appliances on its own. • How to add infrared devices? In the Smart Control Panel section of the mobile app, click on the "Infrared Remote Control"...
- Page 14 Function introduction ⑩ Customizing Physical Buttons The Smart Control Panel Mini comes with three physical buttons, offering various customization options: • Relay Switch: Control the opening and closing of relays, typically used to replace traditional switches for non-smart lighting fixtures.
- Page 15 Function introduction ⑪ Button Indicator Light The three physical buttons on the Smart Control Panel Mini are all equipped with indicator lights, which support customizable settings. The indicator lights have three states: • Indicate off: The indicator light remains off when the relay is toggled.
- Page 16 Function introduction ⑬ Theme and Screen Saver The Smart Control Panel Mini supports multiple sets of themes and screen savers. In the settings - personalization section, users can choose themes and screen savers according to their aesthetic preferences. • Theme •...
- Page 17 Function introduction ⑭ Security Alarm The Smart Control Panel Mini supports security alarm functionality. When devices such as gas detectors, smoke detectors, water leakage sensors, SOS emergency buttons, etc., are triggered at home, the control panel will display a security alarm card to alert users and emit a "beep beep"...
- Page 18 Function introduction ⑯ Partition Control The Smart Control Panel Mini supports partition control functionality. Users can select the area to be controlled by this control panel on the screen. This includes options to select: a single room, multiple rooms, or all rooms. Once the desired area is selected for control, only the devices in that area will be displayed on the control panel, while devices from other areas will be hidden and not visible.
- Page 19 Function introduction ⑰ Language Switching The Smart Control Panel Mini supports 19 languages (continuously increasing). Users can choose their preferred language for the interface display. There are two entry points for language selection: • Boot Guide: Language selection is the first step in the boot guide.
- Page 20 Function introduction ⑲ Sub-device Networking The Smart Control Panel Mini supports on-screen pairing for Sigmesh sub-devices. Here's how to pair Sigmesh sub-devices on the screen: 1. Ensure that the Sigmesh sub-device is in pairing mode and is nearby the control panel.
- Page 21 Function introduction ⑳ Sensor The Smart Control Panel Mini supports various sensor devices and can display their current status in real-time. In the pull-down page, under "Sensor", you can view the real-time status and data of all sensors associated with your account.
- Page 22 Function introduction ㉑Device reboot In the pull-down page, go to Settings - Device & System, then click on "Device reboot” to complete the reboot of the control panel. ㉒Restore factory In the pull-down page, go to Settings - Device & System, then click on “Restore factory”...
- Page 23 Product Specifications Smart Control Panel Product Name Mini Product Model TPP06 Input 100-240V～；50/60Hz Wireless Protocol Wi-Fi、IR Maximum total load: 600W Maximum Load Maximum load per channel: 200W Operating 0°C～40°C Temperature Operating 5% to 90% RH (Non-condensing) Humidity 86*86*11.5mm (excluding base) Size 86*86*35.5mm (including base) Net Weight...
- Page 24 Warranty Policy The after-sales service of Smart Control Panel Mini is strictly in accordance with the "Consumer Rights Protection Law of the People's Republic of China" and "Product Quality Law of the People's Republic of China", and implements after-sales warranty services of repair, replacement and refund.
- Page 25 Non-warranty regulations 1. Unauthorized maintenance, misuse, collision, negligence, abuse, liquid ingress, accident, alteration, incorrect use of non-original accessories, or tearing off/altering of labels or anti-counterfeiting marks. 2. Expiration of validity period of the warranty services of repair, replacement and refund. 3.
- Page 26 Certification Information Class II equipment.Equipment in which protection against electric shock does not rely on basic insulation only, but in which a supplementary safeguard is provided, there being no provision for protective earthing or reliance upon installation conditions. ~ a.c. Nature of the supply voltage. Declaration of Conformity European notice Hereby, We declares that this product is in compliance with essential requirements and other relevant provisions of Directive 2014/53/...
