Dell Latitude 3540 Manual

Notes, cautions, and warnings

NOTE: A NOTE indicates important information that helps you make better use of your product.

A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

A WARNING indicates a potential for property damage, personal injury, or death.

Set up your Latitude 3540

NOTE: The images in this document may differ from your computer depending on the configuration you ordered.

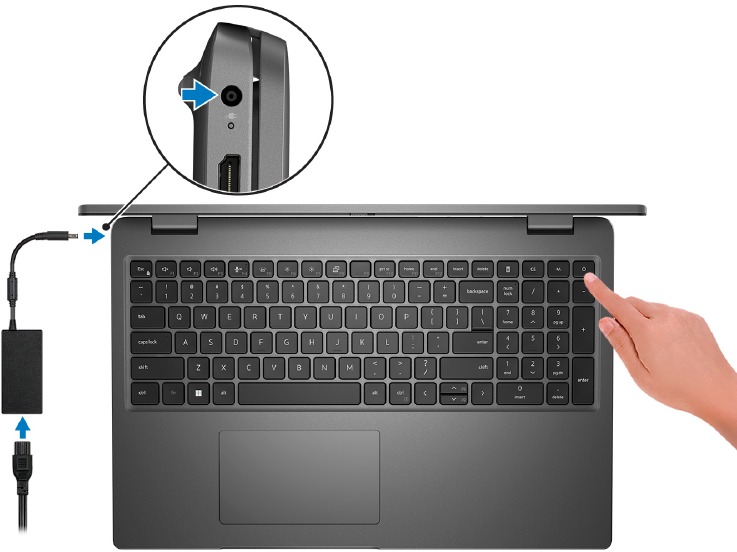

1. Connect the power adapter and press the power button.

   NOTE: To conserve battery power, the battery might enter power saving mode. Connect the power adapter and press the power button to turn on the computer.
2. Finish operating system setup.
   For Ubuntu:
   Follow the on-screen instructions to complete the setup. For more information about installing and configuring Ubuntu, search in the Knowledge Base Resource at www.dell.com/support.
   For Windows:
   Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you:
   • Connect to a network for Windows updates.
     NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when prompted.
   • If connected to the internet, sign-in with or create a Microsoft account. If not connected to the internet, create an offline account.
   • On the Support and Protection screen, enter your contact details.
3. Locate and use Dell apps from the Windows Start menu — Recommended.
   Table 1. Locate Dell apps

   Resources	Description
   	Dell Product Registration Register your computer with Dell.
   	Dell Help & Support Access help and support for your computer.
   	SupportAssist SupportAssist is the smart technology that keeps your computer running at its best by optimizing settings, detecting issues, removing viruses and notifies when you need to make system updates. SupportAssist proactively checks the health of your system's hardware and software. When an issue is detected, the necessary system state information is sent to Dell to begin troubleshooting. SupportAssist is preinstalled on most of the Dell devices running Windows operating system. For more information, see SupportAssist for Home PCs User's Guide on www.dell.com/serviceabilitytools. NOTE: In SupportAssist, click the warranty expiry date to renew or upgrade your warranty.
   	Dell Update Updates your computer with critical fixes and latest device drivers as they become available. For more information on using Dell Update, search in the Knowledge Base Resource at www.dell.com/support.
   	Dell Digital Delivery Download software applications, which are purchased but not preinstalled on your computer. For more information on using Dell Digital Delivery, search in the Knowledge Base Resource at www.dell.com/support.

Views of Latitude 3540

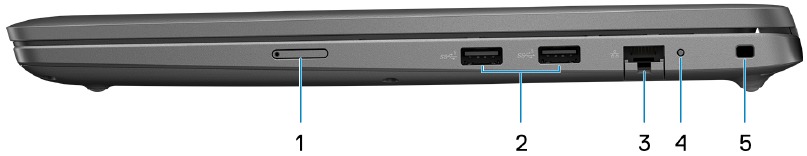

Right

1. microSIM card slot (optional)
2. USB 3.2 Gen 1 port
3. RJ-45 ethernet port
4. Ethernet status LED
5. Wedge-shaped lock slot

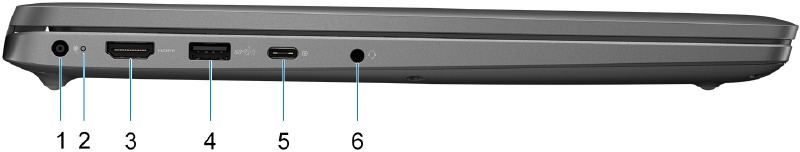

Left

1. DC-in port
2. Battery-status light/Diagnostic-status light
3. HDMI 1.4 port
4. USB 3.2 Gen 1 port with PowerShare
5. USB 3.2 Gen 2 Type-C port with Power Delivery and DisplayPort Alt mode
6. Universal audio port

Top

1. Power button with optional fingerprint reader
2. Keyboard
3. Touchpad

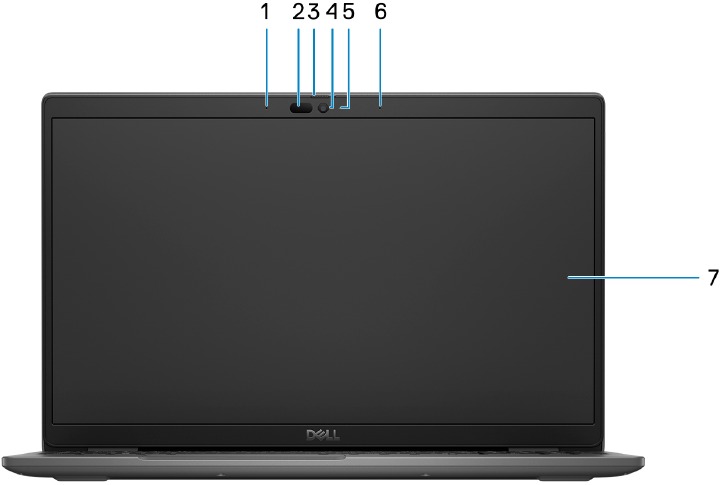

Display

1. Digital-array microphone
2. IR camera and emitter (optional)
3. Camera shutter
4. RGB camera (HD/FHD)
5. Camera status LED
6. Digital-array microphone
7. LCD panel

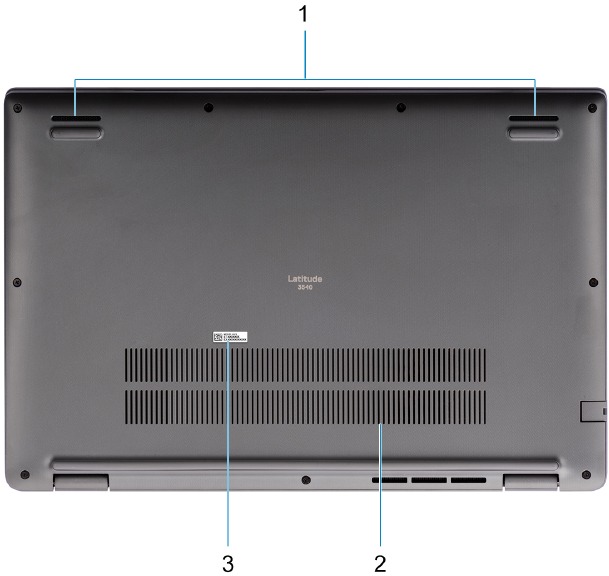

Bottom

1. Speaker mesh
2. Air vents
3. Service Tag and regulatory labels

Service Tag

The service tag is a unique alphanumeric identifier that allows Dell service technicians to identify the hardware components in your computer and access warranty information.

Battery charge and status light

The following table lists the battery charge and status light behavior of your Latitude 3540.
Table 2. Battery charge and status light behavior

• S0 (ON) - System is turned on.
• S4 (Hibernate) - The system consumes the least power compared to all other sleep states. The system is almost at an OFF state, expect for a trickle power. The context data is written to hard drive.
• S5 (OFF) - The system is in a shutdown state.

Specifications of Latitude 3540

Dimensions and weight

The following table lists the height, width, depth, and weight of your Latitude 3540.
Table 3. Dimensions and weight

Processor

The following table lists the details of the processors supported by your Latitude 3540.
Table 4. Processor

Chipset

The following table lists the details of the chipset supported by your Latitude 3540
Table 5. Chipset

Operating system

Your Latitude 3540 supports the following operating systems:

• Windows 11 Pro, 64-bit
• Windows 11 Home, 64-bit
• Windows 10 Pro (Windows 11 Pro Downgrade)
• Ubuntu 22.04 LTS, 64-bit

Memory

The following table lists the memory specifications of your Latitude 3540.
Table 6. Memory specifications

External ports

The following table lists the external ports of your Latitude 3540.
Table 7. External ports

Internal slots

The following table lists the internal slots of your Latitude 3540.
Table 8. Internal slots

Ethernet

The following table lists the wired Ethernet Local Area Network (LAN) specifications of your Latitude 3540.
Table 9. Ethernet specifications

Wireless module

The following table lists the Wireless Local Area Network (WLAN) modules that are supported on your Latitude 3540.
Table 10. Wireless module specifications

WWAN module

The following table lists the Wireless Wide Area Network (WWAN) module supported on your Latitude 3540.
Table 11. WWAN module specifications

Audio

The following table lists the audio specifications of your Latitude 3540.
Table 12. Audio specifications

Storage

This section lists the storage options on your Latitude 3540.
One M.2 2230/2280 solid-state drive
Table 13. Storage specifications

Keyboard

The following table lists the keyboard specifications of your Latitude 3540.
Table 14. Keyboard specifications

Camera

The following table lists the camera specifications of your Latitude 3540.
Table 15. Camera specifications

Touchpad

The following table lists the touchpad specifications of your Latitude 3540.
Table 16. Touchpad specifications

Power adapter

The following table lists the power adapter specifications of your Latitude 3540.
Table 17. Power adapter specifications

Description		Option one	Option two	Option three
Type		60 W AC adapter, USB-C	65 W AC adapter, 4.5 mm barrel	65 W adapter USB-C
Connector dimensions:	External diameter	N/A	4.50 mm	N/A
	Internal diameter	N/A	2.90 mm	N/A
Power-adapter dimensions:	Height	22 mm (0.86 in.)	29 mm (1.14 in.)	28 mm (1.10 in.)
	Width	55 mm (2.16 in.)	47 mm (1.85 in.)	51 mm (2.01 in.)
	Depth	66 mm (2.59 in.)	108 mm (4.25 in.)	112 mm (4.41 in.)
Input voltage		100 VAC to 240 VAC	100 VAC - 240 VAC	100 VAC - 240 VAC
Input frequency		50 Hz to 60 Hz	50 Hz - 60 Hz	50 Hz - 60 Hz
Input current (maximum)		1.70 A	1.60 A/1.70 A	1.70 A
Output current (continuous)		20 V/3 A 15 V/3 A 9 V/3 A 5 V/3 A	3.34 A	20 V/3.25 A (Continuous) 15 V/3 A (Continuous) 9.0 V/3 A (Continuous) 5.0 V/3 A (Continuous)
Rated output voltage		20 VDC 15 VDC 9 VDC 5 VDC	19.50 VDC	20 VDC 15 VDC 9 VDC 5 VDC
Temperature range:	Operating	0°C to 40°C (32°F to 104°F)	0°C to 40°C (32°F to 104°F)	0°C to 40°C (32°F to 104°F)
	Storage	-40°C to 70°C (-40°F to 158°F)	-40°C to 70°C (-40°F to 158°F)	-40°C to 70°C (-40°F to 158°F)
Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

Battery

The following table lists the battery specifications of your Latitude 3540.
Table 18. Battery specifications

Description		Option one	Option two	Option three	Option four
Battery type		3-cell, 42 Wh, Lithiumion, ExpressCharge	3-cell, 54 Wh, Lithium-ion, ExpressCharge	3-cell, 42 Wh, Long Life Cycle, ExpressCharge 1.0	3-cell, 54 Wh, Long Life Cycle, ExpressCharge 1.0
Battery voltage		11.4 V	11.4 V	15 V	11.4 V
Battery weight (maximum)		0.19 kg	0.22 kg	0.19 kg	0.22 kg
Battery dimensions:	Height	5.73 mm	5.73 mm	5.73 mm	5.73 mm
	Width	263 mm	263 mm	263 mm	263 mm
	Depth	79.42 mm	79.42 mm	79.42 mm	79.42 mm
Temperature range:	Operatin g	0°C to 45°C (32°F to 113°F)	0°C to 45°C (32°F to 113°F)	0°C to 45°C (32°F to 113°F)	0°C to 45°C (32°F to 113°F)
	Storage	-20°C to 60°C (-4°F to 140°F)	-20°C to 60°C (-4°F to 140°F)	-20°C to 60°C (-4°F to 140°F)	-20°C to 60°C (-4°F to 140°F)
Battery operating time		Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.	Varies depending on operating conditions and can significantly reduce under certain powerintensive conditions.	Varies depending on operating conditions and can significantly reduce under certain powerintensive conditions.	Varies depending on operating conditions and can significantly reduce under certain powerintensive conditions.
Battery charging time (approximate) NOTE: Control the charging time, duration, start and end time, and so on using the Dell Power Manager application. For more information on the Dell Power Manager see, Me and My Dell on www.dell.com.		0~15°C — 4 hours (when the computer is off) 16~45°C — 2 hours (when the computer is off) 46~50°C — 3 hours (when the computer is off)	0~15°C — 4 hours (when the computer is off) 16~45°C — 2 hours (when the computer is off) 46~50°C — 3 hours (when the computer is off)	0~15°C — 4 hours (when the computer is off) 16~45°C — 2 hours (when the computer is off) 46~50°C — 3 hours (when the computer is off)	0~15°C — 4 hours (when the computer is off) 16~45°C — 2 hours (when the computer is off) 46~50°C — 3 hours (when the computer is off)
Coin-cell battery		CR2032	CR2032	CR2032	CR2032
Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components. Dell recommends that you charge the battery regularly for optimal power consumption. If your battery charge is completely depleted, connect the power adapter, turn on your computer, and then restart your computer to reduce the power consumption.

Display

The following table lists the display specifications of your Latitude 3540.
Table 19. Display specifications

Fingerprint reader

The following table lists the fingerprint-reader specifications of your Latitude 3540.
NOTE: The fingerprint reader is located on the power button.
Table 20. Fingerprint reader specifications

Sensor

The following table lists the sensor of your Latitude 3540.
Table 21. Sensor

GPU

Integrated

The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Latitude 3540.
Table 22. GPU — Integrated

Discrete

The following table lists the specifications of the discrete Graphics Processing Unit (GPU) supported by your Latitude 3540.
Table 23. GPU — Discrete

Multiple display support matrix

The following table lists the multiple display support matrix for your Latitude 3540.
Table 24. Multiple display support matrix

Hardware security

The following table lists the hardware security of your Latitude 3540.
Table 25. Hardware security

Operating and storage environment

This table lists the operating and storage specifications of your Latitude 3540.
Airborne contaminant level: G1 as defined by ISA-S71.04-1985
Table 26. Computer environment

Description	Operating	Storage
Temperature range	0°C to 35°C (32°F to 95°F)	-40°C to 65°C (-40°F to 149°F)
Relative humidity (maximum)	90% (non-condensing)	95% (non-condensing)
Vibration (maximum) *	0.66 GRMS	NA
Shock (maximum)	140 G†	NA
Altitude range	-15.2 m to 3048 m (-49.8 ft to 10000 ft)	-15.2 m to 10668 m (-49.8 ft to 35000 ft)
Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

* Measured using a random vibration spectrum that simulates user environment.
† Measured using a 2 ms half-sine pulse.

Keyboard shortcuts of Latitude 3540

NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations.
Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. The symbol shown on the lower part of the key refers to the character that is typed out when the key is pressed. If you press shift and the key, the symbol shown on the upper part of the key is typed out. For example, if you press 2, 2 is typed out; if you press Shift + 2, @ is typed out.
The keys F1-F12 at the top row of the keyboard are function keys for multi-media control, as indicated by the icon at the bottom of the key. Press the function key to invoke the task represented by the icon. For example, pressing F1 mutes the audio (refer to the table below).
However, if the function keys F1-F12 are needed for specific software applications, multi-media functionality can be disabled by pressing Fn + Esc. Subsequently, multi-media control can be invoked by pressing Fn and the respective function key. For example, mute audio by pressing Fn + F1.
NOTE: You can also define the primary behavior of the function keys (F1–F12) by changing Function Key Behavior in BIOS setup program.
Table 27. List of keyboard shortcuts

The Fn key is also used with selected keys on the keyboard to invoke other secondary functions.
Table 28. Secondary behavior

Getting help and contacting Dell

Self-help resources
You can get information and help on Dell products and services using these self-help resources:
Table 29. Self-help resources

Self-help resources	Resource location
Information about Dell products and services	www.dell.com
Tips
Contact Support	In Windows search, type Contact Support, and press Enter.
Online help for operating system	www.dell.com/support/windows www.dell.com/support/linux
Access top solutions, diagnostics, drivers and downloads, and learn more about your computer through videos, manuals and documents.	Your Dell computer is uniquely identified by a Service Tag or Express Service Code. To view relevant support resources for your Dell computer, enter the Service Tag or Express Service Code at www.dell.com/support. For more information on how to find the Service Tag for your computer, see Locate the Service Tag on your computer.
Dell knowledge base articles for a variety of computer concerns	Go to www.dell.com/support. On the menu bar at the top of the Support page, select Support > Knowledge Base. In the Search field on the Knowledge Base page, type the keyword, topic, or model number, and then click or tap the search icon to view the related articles.

Contacting Dell
To contact Dell for sales, technical support, or customer service issues, see www.dell.com/contactdell.
NOTE: Availability varies by country/region and product, and some services may not be available in your country/region.
NOTE: If you do not have an active Internet connection, you can find contact information about your purchase invoice, packing slip, bill, or Dell product catalog.
