IVR-08

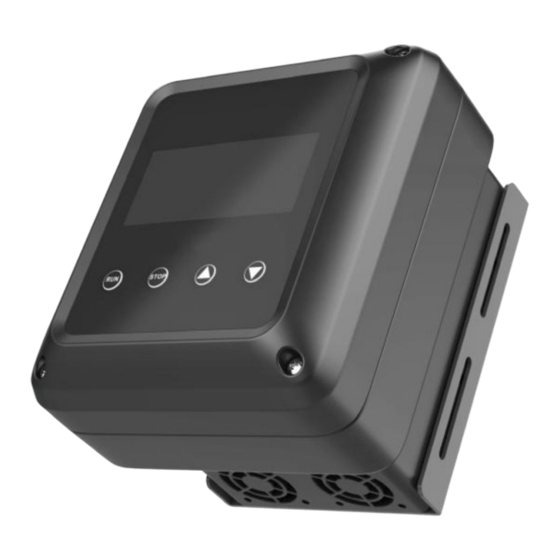

Intelligent inverters for IBO pumps
The device can only be used in conjunction with a pump.
NOTE! Before starting to use, read the operating instructions. For safety
reasons, only persons authorized to operate the controller are allowed to do so.
knowing the operating instructions thoroughly.
Advertisement
Related Manuals for IBO IVR-08
Summary of Contents for IBO IVR-08
- Page 1 Instruction service IVR-08 Intelligent inverters for IBO pumps The device can only be used in conjunction with a pump. NOTE! Before starting to use, read the operating instructions. For safety reasons, only persons authorized to operate the controller are allowed to do so.
- Page 2 Contents Warning information General notes Protective measures Environmental requirements Application Technical data Installation Service Error codes, different types of protection Maintenance and storage Let's take care of our environment! EU/EC Declaration of Conformity | module A WARRANTY CARD Danger Danger The need to familiarize oneself read the user manual electric shock...
- Page 3 Warning information Warning! The "danger" symbol is used for notes that, if not observed, may pose a risk to life or health from the electrical installation. Before carrying out activities marked with this symbol, the pump's power cord must be disconnected from the electrical supply.
- Page 4 IVR-08 intelligent drive. The information contained in this manual is subject to change without prior notice. To ensure correct and safe use of the IVR-08 series drive and to avoid possible damage to the drive or pump and hazardous situations for users, please read the following instructions carefully before installing and operating the device.
- Page 5 Protective measures • Before installation or maintenance, turn off the power supply. Otherwise there is a risk of electric shock. • Do not touch the inverter with wet hands. There is a risk of electric shock. • If you detect any abnormal behavior of the device, immediately disconnect it from the power supply.
- Page 6 The IVR-08 inverter adopts SPWM (sinusoidal pulse width modulation) and high-performance space vector technology using V/F VVVF (variable speed, variable frequency) control.
- Page 7 Applications The IVR-08 model can be used to increase the water pressure in taps in various facilities such as: households, agricultural and residential buildings, swimming pools, commercial facilities, hotel facilities, industrial water circuits, cooling water installations, cold water circuits.
- Page 8 Technical data Dimensions of single-phase pump - IVR-08 (015S, 020S, 030S) Dimensions of three-phase pump - IVR-08 (030T) Tension Tension Frequency Frequency Intensity Pressure Dimensions Power Model Power supply (kW) (mm) Sensor (AND) (Hz) (Hz) IVR-08 (015S) 1~230V 180x160 IVR-08...
- Page 9 Technical data IVR-0 IVR-08 IVR-08 IVR-08 No. Name (015S) (020S) (030S) (030T) 1.1kW 1.5kW 2.2kW 2.2kW Power 11 A 12 A Intensity Input voltage 1 x 230V 3x400V Output voltage 1 x 230V 3x400V 160V ~ 260V 320V ~ 450...
- Page 10 Installation Single Pump Connection Diagram Self-priming pump Tap water Water supply mode Pressurization mode installation installation For correct operation, the inverter must work with a diaphragm tank with a capacity of at least 2 L. The diaphragm tank should be inflated to 60% of the water pressure set on the controller.
- Page 11 Installation 1. Connection must be done by Three-phase input professionals. and three-phase output 2. Connections must be made with the power turned off. 3. Make sure the connection is correct and confirm the voltage before turning on the power. 4. Piercing attempts are not permitted. 5.
- Page 12 Service Buttons and their functions No. Name Instruction Starting Manually start the pump, press this button button to exit the no water state Stopping Stop the pump manually, press this button button to exit the no water state Pressure Increasing Increase the pressure by 0.1 bar button each time...
- Page 13 Error codes, different types of protection • Overheat protection – displays “OH” • Overload protection – displays “OD” • Output short circuit/over current protection – displays “OC” or “OL” • Undervoltage protection – “uLU” • Protection against voltage increase – “uOU” •...
- Page 14 Maintenance and storage During normal use, the controller does not require maintenance or periodic inspections. However, its technical condition should be visually inspected periodically, especially the electrical and hydraulic connections for leaks and damage. Maintenance may only be performed by an authorized electrician. Maintenance work does not have to be identical for the same device, and its scope is decided by the person performing the maintenance.
- Page 15 Let's take care of our environment! Every user can contribute to protecting the environment. It is neither difficult nor expensive. To do this, you should send the cardboard packaging to the waste paper, throw plastic bags into the plastic container. The used device should be returned to the appropriate collection point.
- Page 16 EU/EC Declaration of Conformity | Module A 1. Inverter - pump controller IVR-08 2. DAMBAT Jastrzębski SKA, Adamów 50, 05-025 Grodzisk Mazowiecki, POLAND, e- mail:biuro@dambat.pl 3. This declaration of conformity is issued under the sole responsibility of the manufacturer. 4. Pump controller described in point 1.
- Page 17 WARRANTY CARD The warranty card below is valid only together with the original purchase document, i.e. invoice or receipt. In addition, it must be confirmed by the seller with a signature and stamp. The warranty card without the original purchase document attached is invalid. 1.
