ARMATURENBAU MANOTHERM DPM Installation And Operating Instructions Manual

Installation and Operating Instructions
Process-controlled Digital Display DPM
Contents
1. General Information
2. Safety Information
3. Description of the Application
4. Technical Data
5. Information on CE
6. Installation
6.1 Storing and Transport
6.2 Information on Installation
6.3 Electrical Connection
6.4 Connection of the optional
limit value contacts
7. Operation and Parameterisation
8. Maintenance, Repair
9. Decommissioning
10. Disposal
1. General Information
Please read these operating instructions carefully
before using the process-controlled digital display.
The process-controlled digital display model DPM is
manufactured in accordance with the valid standards
(see information on CE).
The process-controlled digital display model DPM is
for displaying and transforming of process factors like:
currents, voltages, temperature signals, potentiometer
signals. It is for the use in apparatus- and switch
cabinet construction.
Further information on instruments can be found on
data sheet 9910 as well as on the nameplate of the
instrument.
Applications
explicitly as intended, are contrary to
normal use!
ARMATURENBAU GmbH and MANOTHERM Beierfeld
GmbH do not assume liability for damages that arise
from misuse of the device resp. from not regarding the
information contained in these operating instructions.
2. Safety Information
Please regard the valid country-
specific instructions when installing,
putting into operation and operating.
• All operations may only be executed in
dead voltage condition
• Mounting, electrical installation, putting into operation
and maintenance may only be executed by
qualified personnel.
• These instructions have to be understood, regarded
and followed.
Sales and Export South, West, North
ARMATURENBAU GmbH
Manometerstraße 5 • D - 46487 Wesel - Ginderich
Tel.: +49 (0) 28 03 / 91 30–0 • Fax:+49 (0) 28 03 / 10 35
armaturenbau.com • mail@armaturenbau.com
p. 1
p. 1
p. 1
p. 2
p. 2
p. 2
p. 2
p. 2
p. 2
p. 2
p. 3-6
p. 7
p. 7
p. 7
that are not listet
• Please do not use the instrument in areas where it is
exposed to flammable and explosive gases.
• Use the instrument only in professionally installed
condition (see information on installation)
• This instrument is not a security device (SIL).
Malfunctions of the instrument can lead to breakdowns
of the outlet ports. Please take precautions, like for
example the installation of a separate monitoring
system, to avoid accidents because of these
breakdowns and to grant security.
• The instrument is maintenance-free. Opening the
case is not allowed. Within the case are contact-
dangerous circuits. Retrofitting or further technical
changes of the instrument executed by the customer,
are not allowed. With this you will lose your warranty.
• Mounting and dismounting may only be executed in
dead-voltage condition.
• You have purchased an electronical precision meter.
Please treat the instrument carefully so that it cannot
be damaged at the plastic surface and the case parts.
• When disregarding the corresponding instructions,
injuries and/or damage to property may occur.
3. Description of the Application

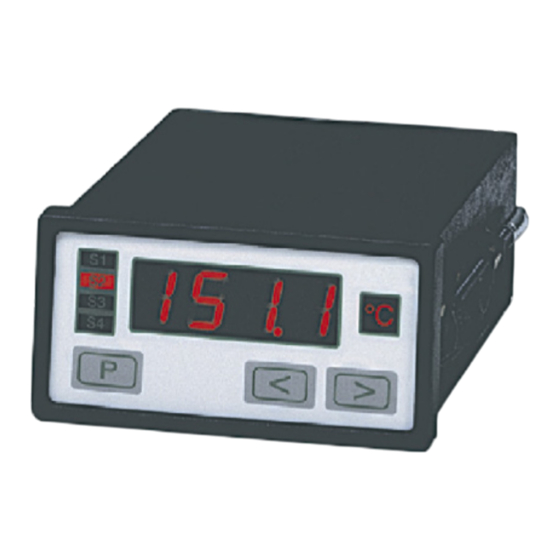

This process-controlled digital display model DPM has
been developed to realize process control requirements.
It can be applied as local display with a process factor
or as temperature transducer with integrated display.
Further features:
• protection type IP 65 front-sided
• completely programmable via frontal keyboard
• integrated sensor supply (GS-version)
• any unit symbol applicable (lighted)
• case in 96 mm x 96 mm (3.78" x 3.78") size
Options/accessory:
• extension module with 2 or 4 limit value contacts
• analogue output (0/4...20 mA, 0...10 V DC)
Subsidiary Company ,Sales and Export East
MANOTHERM Beierfeld GmbH
Am Gewerbepark 9 • D-08344 Grünhain-Beierfeld
Tel.: +49 (0) 37 74 / 58–0 • Fax:+49 (0) 37 74 / 58–545
m a n o t h e r m . c o m • m a i l @ m a n o t h e r m . c o m
- 1 -
B8
6/09
