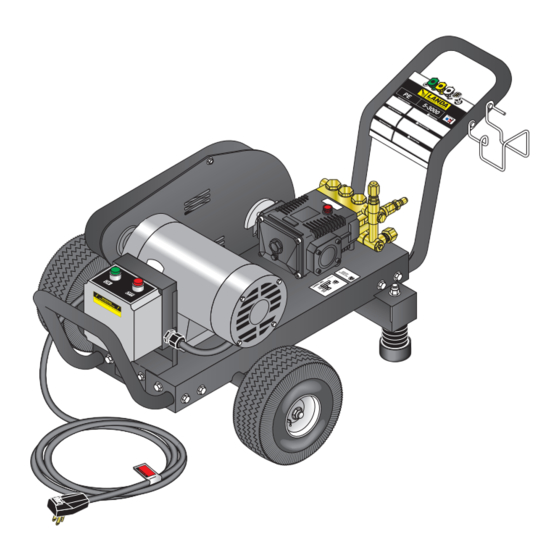

- Page 1 OPERATOR’S MANUAL ■ PE2A-1500 ■ PE3-1100 ■ PE4-2000 ■ PE4-3000 ■ PE5-3000 Scan or Click to View The Landa Safety Video For technical assistance or the dealer nearest you, consult our web page at www.landa.com 8.913-998.0 - R 12/01/23...
- Page 2 Storage ....................9 Troubleshooting ................10-11 Preventative Maintenance ..............12 Oil Change Record ................12 Models: 1.106-009.0 PE3-1100 LANDA 120V 1.106-010.0 PE4-2000 LANDA 230V 1PH 1.106-011.0 PE4-2000 LANDA 230V 3PH 1.106-012.0 PE4-2000 LANDA 460V 3HP 1.106-013.0 PE4-3000 LANDA 230V 1PH 1.106-014.0 PE4-3000 LANDA 230V 3PH 1.106-015.0...
- Page 3 250 volts or less, single phase will be provided with a ground fault circuit interrupter (GFCI). If rated more than 250 volts, or more than single phase this product should only be connected to a power supply receptacle protected by a GFCI. LANDA PE 8.913-998.0...
- Page 4 Failure to protect machine from freezing could PROTECT FROM cause malfunction of the FREEZING machine and result in death, serious bodily injury, and/or property damage. Fol- low storage instructions specified in this manual. LANDA PE 8.913-998.0...
- Page 5 This oil level in the pump. system prevents internal pump damage. Pump - Develops high pressure. Pump Protector - Cycles fresh cool water through pump when recirculating water reaches 140°F. LANDA PE 8.913-998.0...
- Page 6 Use (Non foaming) SAE 10W-40 oil. Pump Water Garden Inlet Hose STEP 7: Check inlet filters, remove debris, then connect the garden hose to pump water inlet. CAUTION: Do not run the pump without water or pump damage will result. LANDA PE 8.913-998.0...
- Page 7 NOTE: For a more gentle rinse, select the white 40° or green 25° nozzle. To scour the surface, select the yellow 15° nozzle. To ap- ply detergent select the black nozzle. LANDA PE 8.913-998.0...
- Page 8 NOTE: You can also stop deter- pressure washer in low pressure for 1-2 minutes. gent from flowing by removing detergent siphon tube from bottle. LANDA PE 8.913-998.0...
- Page 9 Squeeze the trigger of the spray gun to drain all water from the wand and hose. 2. Restart pressure washer and let it run briefly (about 5 seconds) until water no longer discharges from the high pressure outlet. LANDA PE 8.913-998.0...
- Page 10 Turn machine off if not in use for over over 5 minutes 1-2 minutes. OIL DRIPPING Oil seal worn Check and replace if necessary. EXCESSIVE VIBRATION IN Irregular functioning of the pump Check and replace if necessary. HIGH-PRESSURE HOSE valves LANDA PE 8.913-998.0...
- Page 11 Clean bearing cavity and bearing. Repack with correct grease until cavity is approximately 3/4 filled. GROWLING OR Bad bearing Replace bearing. Clean all grease from cavity and WHINING new bearing. Repack with correct grease until cav- ity is approximately 3/4 filled. LANDA PE 8.913-998.0...
- Page 12 Shell Dolium R (Factory installed) or Chevron SRI. OIL CHANGE RECORD Date Oil Changed Estimated Operating Date Oil Changed Estimated Operating Month/Day/Year Hours Since Last Month/Day/Year Hours Since Last Oil Change Oil Change LANDA PE 8.913-998.0...
- Page 13 OIL CHANGE RECORD - continued Date Oil Changed Estimated Operating Date Oil Changed Estimated Operating Month/Day/Year Hours Since Last Month/Day/Year Hours Since Last Oil Change Oil Change LANDA PE 8.913-998.0...
- Page 14 Form # 8.913-998.0 • Revised 12/23 • Printed in U.S.A. or Mexico...
