Asus RT-BE88U Quick Start Manual

Quick
Start Guide
RT-BE88U

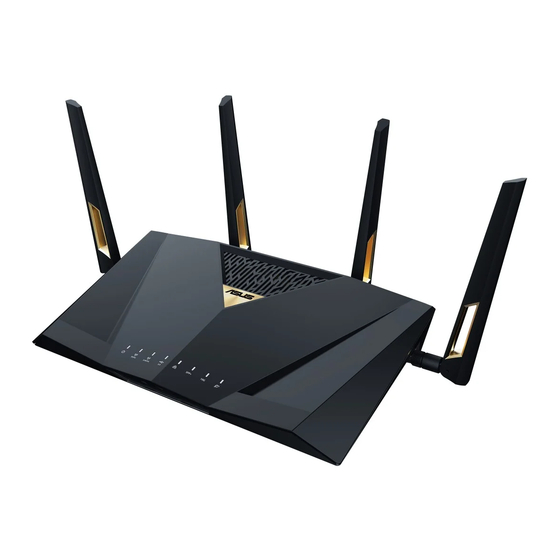

BE7200 Dual Band Wi-Fi Router
Router Setup Steps
01
Prepare your Modem
Unplug the power of cable / DSL modem. If it
1
has a battery backup, remove the battery.
Unplug
Install your Router
02
Plug the adapter into the DCIN port, and press the Power switch.
1
– Via app
[App] On your iOS or Android mobile device, go
3
to the app store, search for ASUS Router, and
download the app.
– Or via web browser
[Wired] Connect your PC to LAN port at the back side
3
of the router using an additional network cable.
Gain Another 10GE LAN Port
01 Set up 2.5GE WAN connection to release another 10GE LAN Port
– Under factory defaults
Connect to the 2.5GE WAN port
Connect the modem to the 2.5GE WAN port with a
network cable.
Connect your modem to WAN port at the back side of the router with the
2
network cable provided.
Power on the modem. Plug modem to the power outlet and power on.
3
Modem back
Modem back
[App] On your iOS or Android mobile device, tap Settings > Wi-Fi, connect
4
to the default network SSID shown on the product label on the back side of
the router. Or scan the QR code on the product label to connect the default
network SSID.
[Wireless] Connect to the network with default SSID shown on
the product label on the back side of your router "ASUS_XX".
Login and Connect
[ASUS Setup Wizard] Select "Manual Setting".
1
Hardware Explanations
I/O Ports Overview
10G WAN/LAN 2.5G WAN/LAN 1 1G LAN 5-8 USB 3.2 Gen 1 port
(Internet) port port ports
WPS button Reset button
2.5G LAN 2-4
ports
10G SFP+
Specifications:
DC Power adapter DC Output: +19.5V with 2.31A current
DC Output: +12V with 5A current
Operating Temperature 0~40 C
o
Operating Humidity 50~90%
Check the modem LED lights to ensure the connection is active.
4
The power LED will light up when the hardware is ready.
2
[App] Launch ASUS Router App and follow the
5
instructions to complete the setup.
* XX refers to the last two digits
_
of MAC address. You can find
it on the label on the back of
your router.
[Wired / Wireless] Open a web browser.
4
You will be redirected to the ASUS Setup Wizard. If not, navigate to
http://www.asusrouter.com.
Follow the instructions to
complete the setup.
http://www.asusrouter.com/
[ASUS Setup Wizard] Select "2.5G WAN", then follow the instructions to
2
complete the setup of SSID and login information.
LED Lights Overview
5GHz LED USB 3.2 Gen 1 LED
(USB 3.0)
Power LED
DCIN port 2.4GHz LED LAN LED
Power switch
Storage 0~70 C
o
Storage 20~90%
If you are using DSL for internet,
you will need your username
/ password from your Internet
service provider (ISP) to properly
configure your router.
Modem front
E23287
WAN (Internet)
10G SFP+ LED
LED
10G LED
