DL24/DL24P User Manual
2.4-inch HD color screen Bluetooth transmission curve version
Battery capacity / DC power multi-function tester

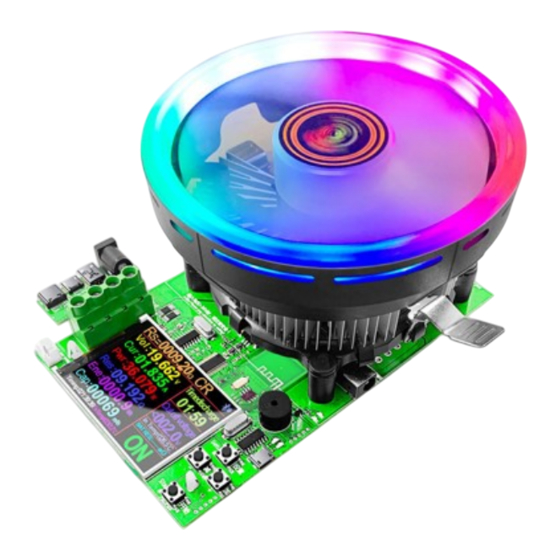

DL24 150W
DL24P 180W
DL24P 180W
(This product will be updated at any time, please pay attention to the web page
description for detailed update details)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ATORCH DL24
Summary of Contents for ATORCH DL24
- Page 1 DL24/DL24P User Manual 2.4-inch HD color screen Bluetooth transmission curve version Battery capacity / DC power multi-function tester DL24 150W DL24P 180W DL24P 180W (This product will be updated at any time, please pay attention to the web page...
- Page 2 1.DL24/DL24P Electronic Load Structure Description 2. Electronic Load Power Supply Instructions This product does not provide a power adapter, but can be powered by three self provided methods 1.DC5.5-12V power supply (insert device DC5.5 interface) 2.USB-5V/2A charger power supply (insert into device CC port) 3.
- Page 3 3. Main functional testing interface 4. Four major alarm functions...
- Page 4 5. Product wiring method This electronic load supports 2-wire and 4-wire wiring methods testing...
- Page 5 6. Test Instructions Test mode Operation instructions CC Mode Constant current test mode Operation method: When selecting the"CC" constant current discharge mode in the menu, regardless of the input voltage No change, set the cut-off voltage and discharge parameters of the battery, press the "OK/Start"...
- Page 6 Important note: When online, be sure to turn on GPS positioning permission Note:Some phones have incompatible apps (Samsung), please switch to another phone for pairing and online connection! Download link:http://en.atorch.cn/upload/20220611142210.apk Android APP: search E-test at Google play to down load IOS APP: search E_test on iphone APP store to download...
- Page 7 About SOFTWARE QUESTIONS: The APP crashes on my PC, what is the problem ? A: For PC software, because there may be incompatibilities problems, please download first before buying , if you can download and install, you can place order, or else do not buying. If you don't test the PC software and APP function before buying and find that the products works fine except the PC software, we refuse to refund.For PC software, it only support win 7 and Win 10 above for now.
- Page 8 9. Accessory usage instructions diagram The following accessories are default package accessories and can be used directly according to the instructions Accessory Name Application Description Can test DC power supply, MINI USB, Type-C, Android USB all kinds of data cables Measure battery temperature, and can also detect the temperature of various devices and temperature etc...
- Page 9 [2 ].All dry batteries, including A, AA, AAA, etc [3].All button batteries such as 2032, GPA76,LR44, etc. Using 4-wire wiring system for more accurate testing Adapt to battery model testing: 18650、26650、14505、14340、14250 Battery Test 10. DL24/DL24P Difference DL24 150W DL24P 180W Load power-W:U×I≤150W(max) Load power-W:U×I≤180W(max)
